Ⅳ. Motor Temperature Indicator


 Protective thermal sensor LED
Green LED signal on the trigger switch and aluminium casting ( for DS-9.5i only ) shows the winch
is operated under normal working condition.
Red LED signal shows on the trigger switch and aluminium casting ( for DS-9.5i only ) shows the
winch is operated under abnormal working condition
If a winch which is operated with red LED signal for a long period will certainly result in damaged
the winch. In this circumstance, you must power off the winch without delay.
DS-9.5
OUT
IN
LED LIGHT
GREEN
OUT
IN
LED LIGHT
RED
(
((
( Normal winching
Normal winchingNormal winching
Normal winching)
))
) (
((
(Abnormal winching
Abnormal winchingAbnormal winching
Abnormal winching)
))
)
DS-9.5i
( Normal winching)
( Normal winching)( Normal winching)
( Normal winching) (Abnormal winching)
(Abnormal winching) (Abnormal winching)
(Abnormal winching)


Battery Recommendations
A fully charged battery and good connections are essential to the proper operation of your winch. The
minimum requirement for a 12 volt DC battery is 650 cold cranking amp.



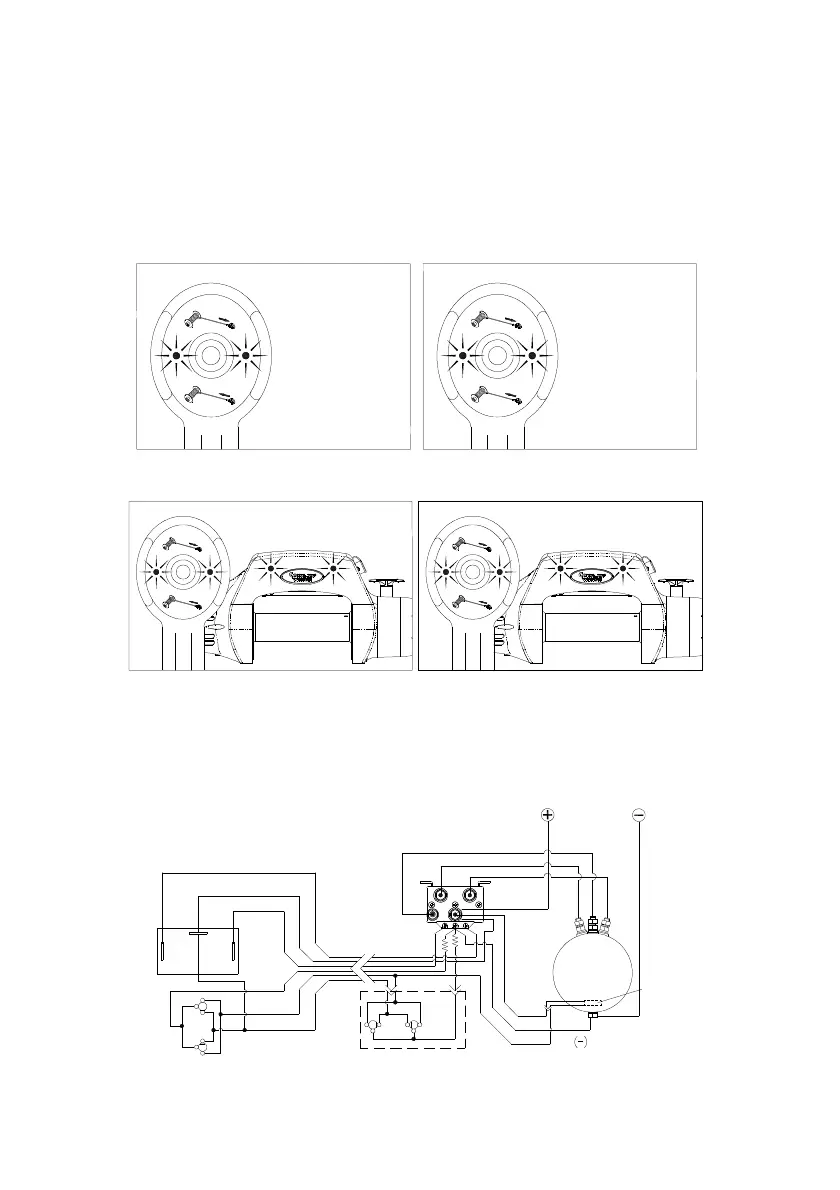

Electrical Circuit Diagram
