Ⅳ. Operation
Precautions
Check all safety and environmental conditions prior and during use.
A wire rope should be replaced if it shows signs of excessive wear, broken wires, corrosion or
any other defects.
The operator must remain with the winch when it is being operated.
The winches duty rating is S3 (intermittent – periodic)
If the winch fails to pull a load under normal conditions, stop the operation within 30 seconds
otherwise motor damage may be occurred.
Ensure that the winch is connected to the correct voltage. 12VDC or 24VDC only
Check that the free-spool T-handle is in the “Engaged” position during and after use.
Remove the switch from the winch when not in use.
Do not wrap the wire rope around the load and back onto itself. Always use a strap to ensure
that the wire rope does not fray or kink.
Keep hands and clothes away from the winch, wire rope, and roller fairlead.
Never unplug the remote control when winching a load.
Before use, ensure that you are familiar with all winching operations (winch speeds &
direction).
To avoid insufficient power when winching a load, the vehicle should be running and in
neutral.
Keep the remote control clear of the wire rope at all times.
If noise or vibration occurs when running, stop the winch immediately and return it for repair.
Cable-in/ Cable-out Operation
1). To determine “Cable - Out”, trigger → out (fig.4)
2). To determine “Cable - In”, trigger ← in (fig.5)
To stop winching, release the trigger

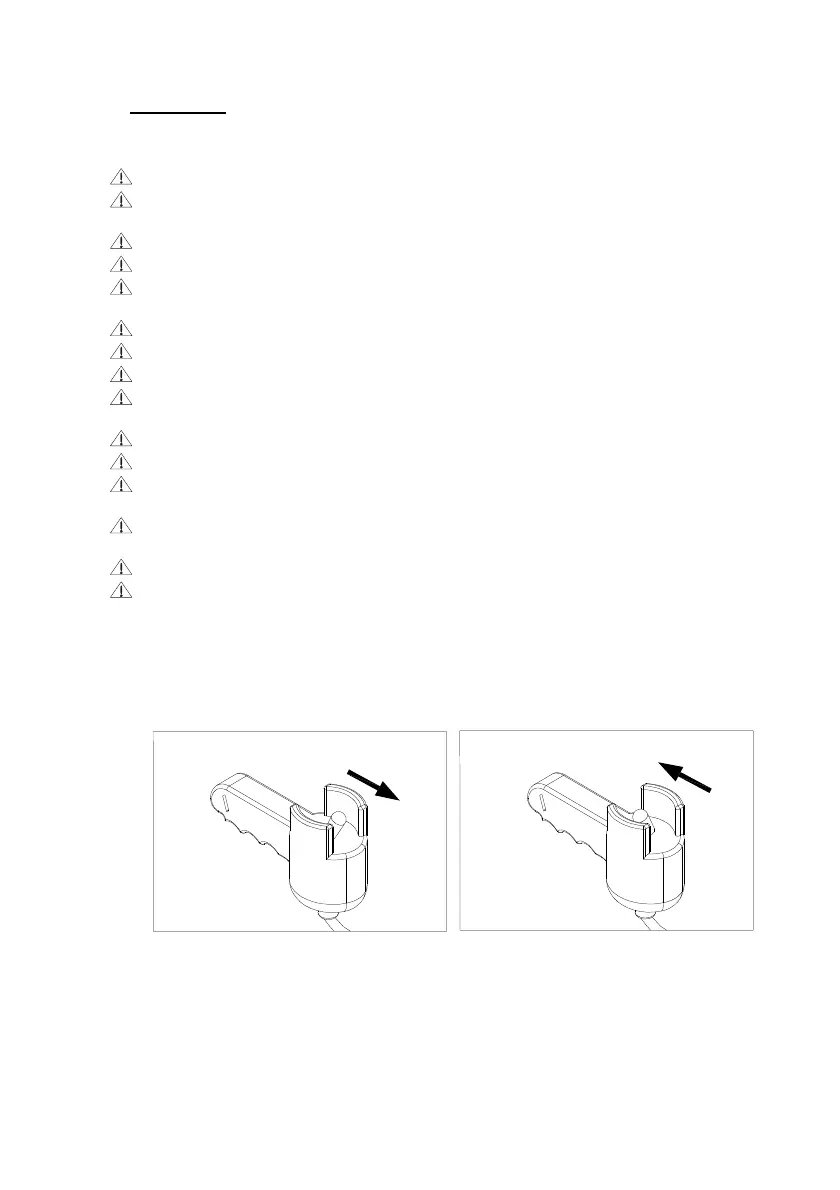

(Fig4) (Fig5)
