COMEX ESC-SR - Technical Characteristics; Installation

Manuale d'Uso e Installazione per ESC - Rev.D (ITA-ENG) 6/8
repealingRegulation(CEE)n.793/93oftheCouncilandRegulation(CE)n.1488/94oftheCommission,aswell
astheCouncilDirective76/769/CEEoftheCouncilandCommissionDirectives91/155/CEE,93/67/CEE,
93/105/CEand2000/21/CE

4.IDENTIFICATIONOFTHEESC


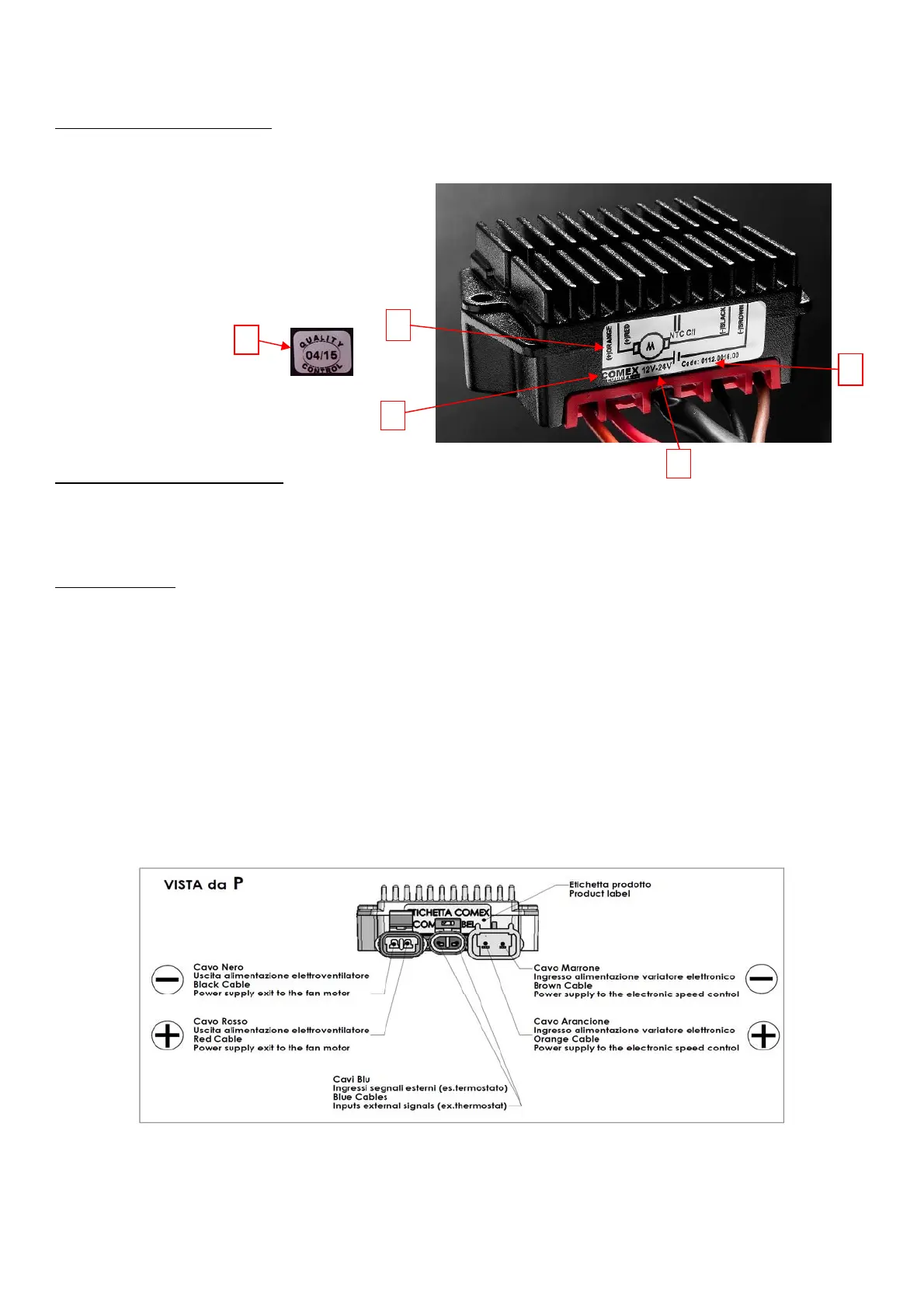

AlltheElectronicSpeedControlsareequippedwithanidentifica tion labelwhichallows torecognizeallthedata
neededtoidentifythemandtheschemeofconnection.Hereunderaredescribesthelayoutofthesedata.
(6) Nameofproducer
(7) Schemeofconnection 
(8) ProductCode
(9) PowerSupply
(V)
(10) QualityControlandmonth/yearofproduction
(placedontheoppositesideoftheproduct).



Fig.1:MARKING




5.TECHNICALCHARACTERISTICS

Itisforbiddentheuseofelectronicspeedcontrolinhazardousareas"ATEX"orinareaswherethey
NOTmeettheinstallationrequirementsshownontheidentificationlabeloftheESC,indicatedintheprevious
chapter.

6.INSTALLATION

Beforeinstallation,checkthat:
1)theelectronicspeedcontrolisnotvisiblydamaged(damagecausedbytransportationorstorage).
2)thelabeldataarecongruentwiththeapplicationtowhichitisintended;thepowersupplymustcorrespondto
theindicationsontheidentificationlabel.
Giventhesizeandlow
weight,youcancarryoutthemovementsmanually.
Preliminaryworks:
Removethepackagingusedfortransportation.
Installation:
1) it is recommended to properly secure the electronic speed control through the fixing points present on its
carcass,andindicatedonthetechnicalscheduleavailableonourwebsite.
2)duringassemblyavoidto
damageit;donotsubjecttheESCtoimpacts.
3)makesurethattheelectricalconnectionsaremadeasindicatedinthetechnicalcatalogue.
4)makeconnectionsasshownschematicallybelow.

Fig.2:SCHEMEOFCONNECTION

1
2
5
3
4
