INSTALLATION
Hood Mounting Screw Installation
1. Determine and mark the centerline on the wall where the hood will be installed.
2. Select a mounting height between a minimum of 25.6'' and a
suggested maximum of 29.53'' above the range to the bottom of the hood.
Mark a reference line on the wall.

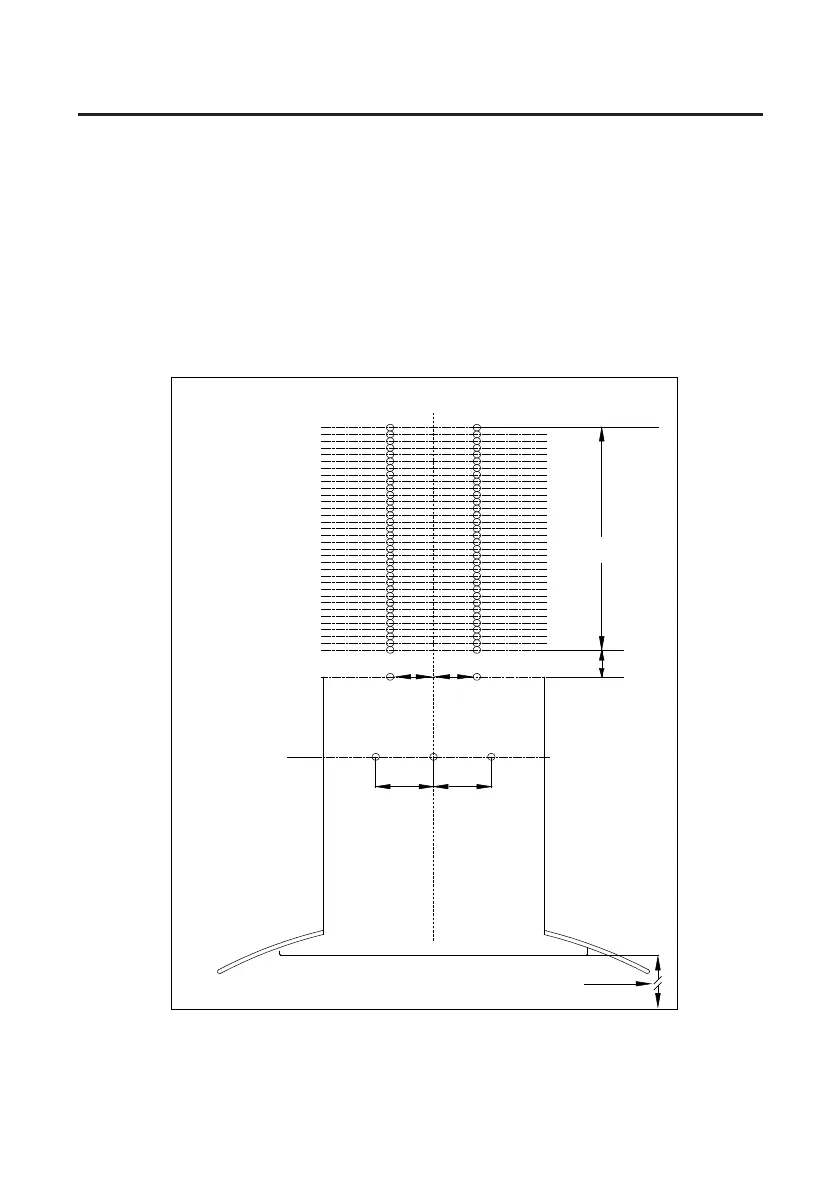

3. Tape template in place, aligning the template centerline and bottom of template
with hood bottom line and with the centerline marked on the wall.
A
B
(3.15'')
(3.15'')
1.57"
25.6'' min to cooking surface
29.53'' max to cooking surface
Mark the hole
location with in
0.375" to 0.5" of
the ceiling or
the upper most
hole location.
Centerline of cabinets
and/or cooktop
C
D
NOTE:Ensure that horizontal lines are level prior to marking hole locations.
Tape
(
2.36'')
(
2.36''
)
13''
