INSTALLATION
Hood Mounting Screw Installation
1. Determine and mark the centerline on the wall where the hood will be installed.
2. Select a mounting height between a minimum of 25.6'' and a
suggested maximum of 29.53'' above the range to the bottom of the hood.
Mark a reference line on the wall.

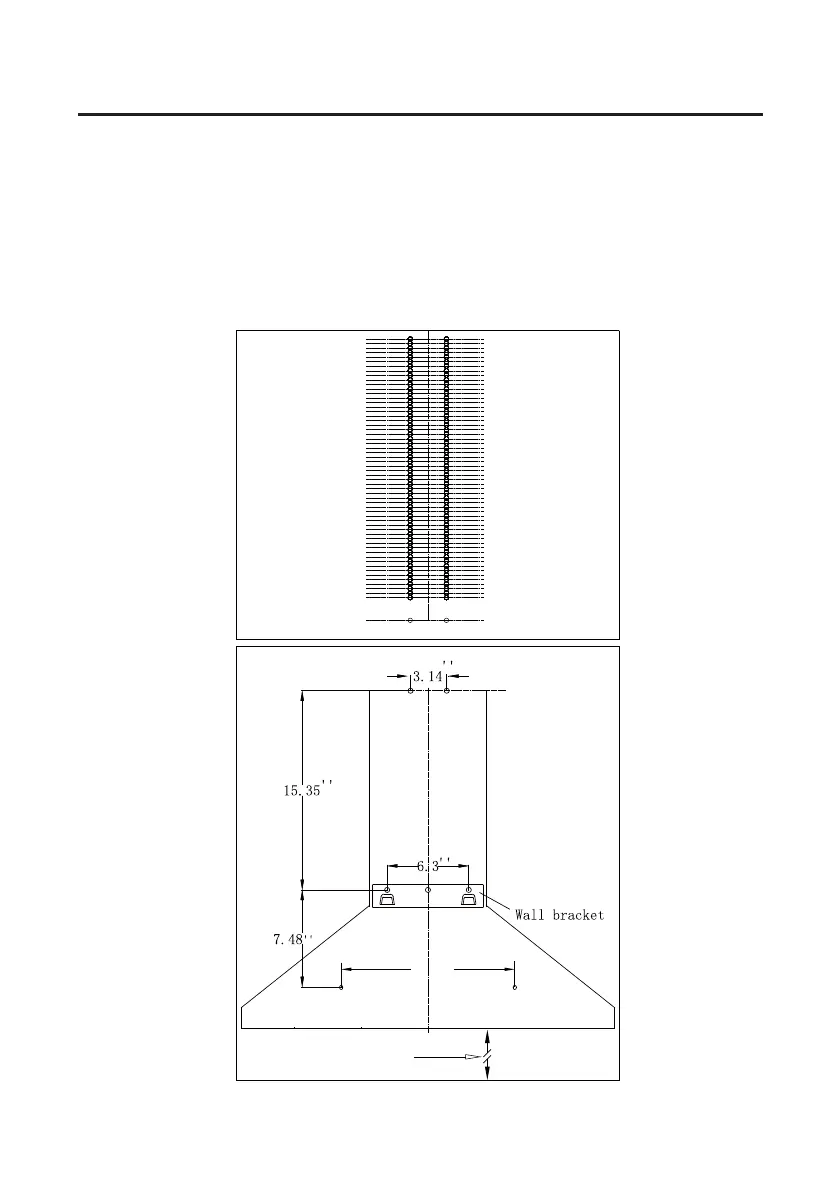

3. Tape template in place, aligning the template centerline and bottom of template
with hood bottom line and with the centerline marked on the wall.
NOTE:Ensure that horizontal lines are level prior to marking hole locations.
Overlap the holes
when install the
adjustable
decorative
chimney.
Mark the hole location
with in 0.375" to 0.5"
of the ceiling or the
upper most hole
location.
Centerline of
cabinets
and/or cooktop.
Tape
25.6'' min to cooking surface
29.53'' max to cooking surface
13.38"
