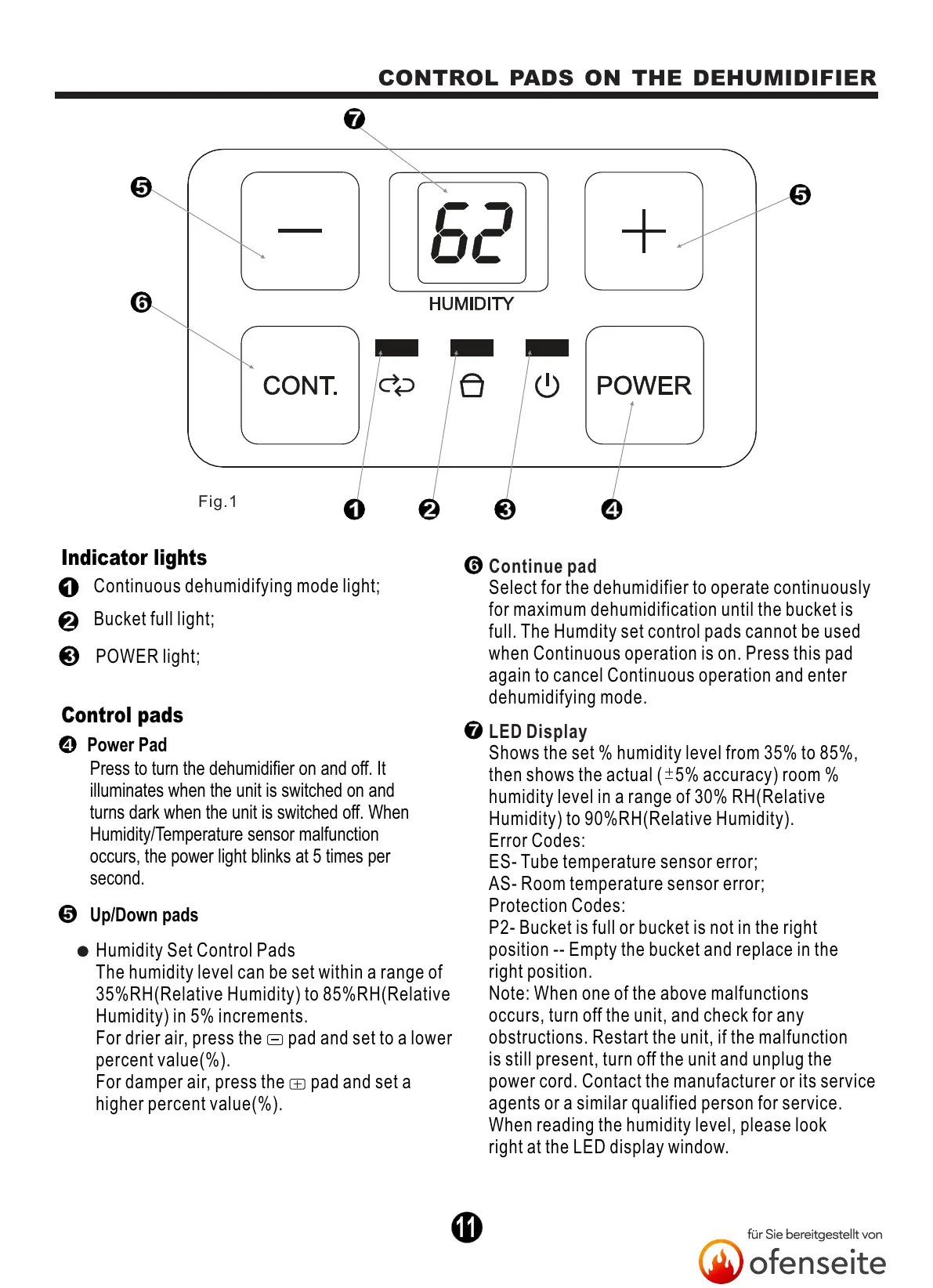

Comfee MDDN-10DEN7 - Control Pads; Control Pads on the Dehumidifier

11
CONTROL PADS ON THE DEHUMIDIFIER
3
1
2
Indicator lights
Power Pad
4
Control pads
Bucket full light;
POWER light;
Press to turn the dehumidifier on and off. It
illuminates when the unit is switched on and
turns dark when the unit is switched off. When
Humidity/Temperature sensor malfunction
occurs, the power light blinks at 5 times per
second.
Up/Down pads
Continuous dehumidifying mode light;
5
1234
5
5
6
7
Humidity Set Control Pads
The humidity level can be set within a range of
35%RH(Relative Humidity) to 85%RH(Relative
Humidity) in 5% increments.
For drier air, press the pad and set to a lower
percent value(%).
For damper air, press the pad and set a
higher percent value(%).
Continue pad
6
Select for the dehumidifier to operate continuously
for maximum dehumidification until the bucket is
full. The Humdity set control pads cannot be used
when Continuous operation is on. Press this pad
again to cancel Continuous operation and enter
dehumidifying mode.
LED Display
7
Shows the set % humidity level from 35% to 85%,
then shows the actual ( 5% accuracy) room %
humidity level in a range of 30% RH(Relative
Humidity) to 90%RH(Relative Humidity).
Error Codes:
ES- Tube temperature sensor error;
AS- Room temperature sensor error;
Protection Codes:
P2- Bucket is full or bucket is not in the right
position -- Empty the bucket and replace in the
right position.
Note: When one of the above malfunctions
occurs, turn off the unit, and check for any
obstructions. Restart the unit, if the malfunction
is still present, turn off the unit and unplug the
power cord. Contact the manufacturer or its service
agents or a similar qualified person for service.
When reading the humidity level, please look
right at the LED display window.
Fig.1
