Connection of extra hot water tank - High model
An extra water tank with loop controller or storage tank, without its own
electric heater, can be connected to the heat pump to increase the total hot
water capacity.
RX35 / 50/65 High model. Remove
return pipe.
(A) from the T-coupling.
Connect the return (Blue) from
the hot water tank, outlet 1
with 22 mm pipes and connect
with suitable couplings
(with transition 15-22 mm) to
the T-coupling (B).
water capacity.
The heat to the hot water
tank (Red) is connected with
22 mm pipes and suitable
clamping ring connections
(with transition 15-22 mm) to
the hot water tank, outlet 2.

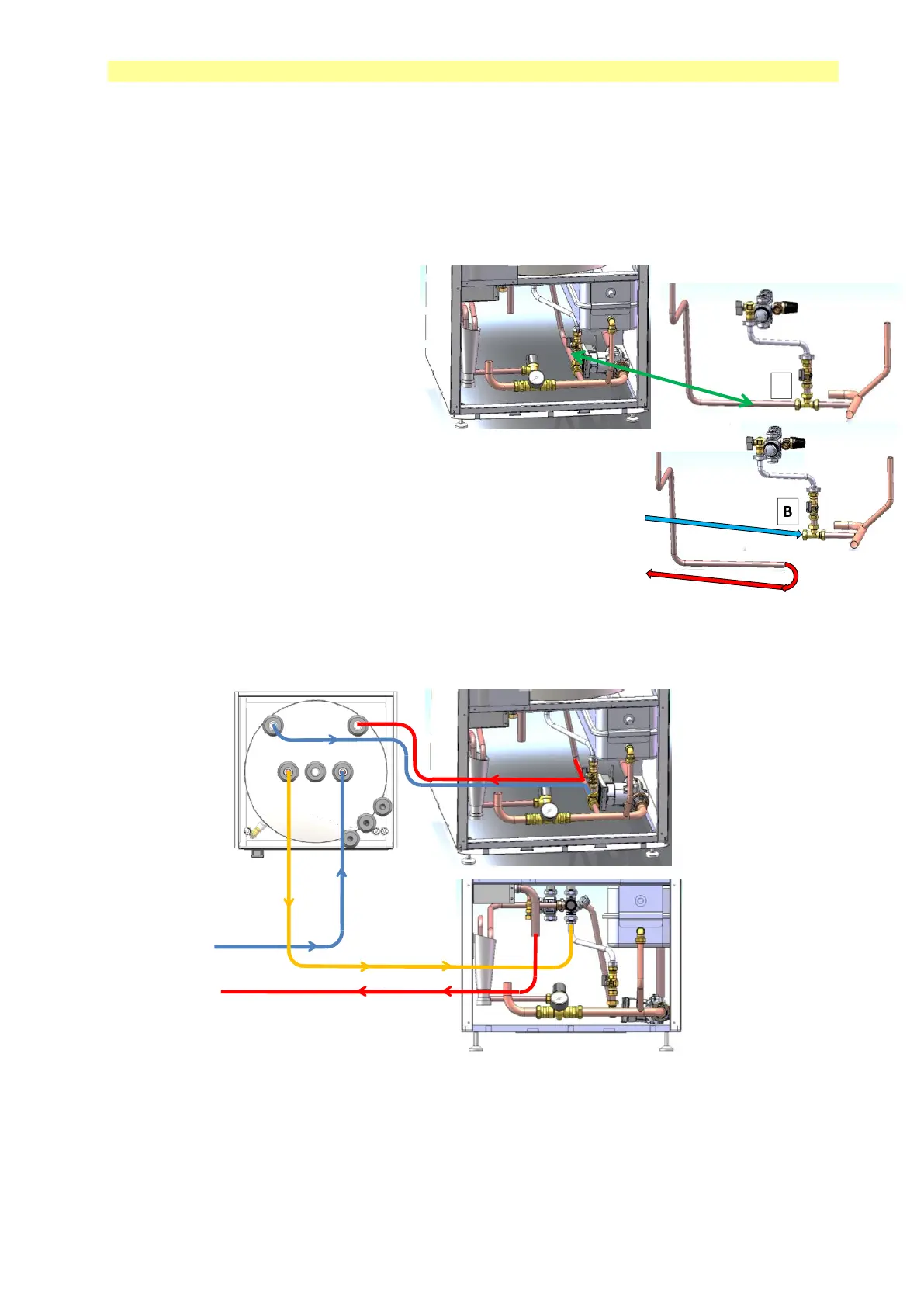

The following instructions and outline diagrams show the connection of
the Borö hot water tank "Tida".
Fresh cold water connects to the connection (4) on the "Tida" tank.
Outgoing hot water (3) from the "Tida" tank is connected as heated hot water with 22
mm pipes to the heat pump's normal cold water connection.
