INSTALLATION STEPS
STEP 1: INSTALL THE LIFTING COLUMN
2
1
A
x
C
4x 4
longside of the
lifting column
Shortside of the
desktop
Rotate the column after
inserting it to the bottom
to avoid height dierence

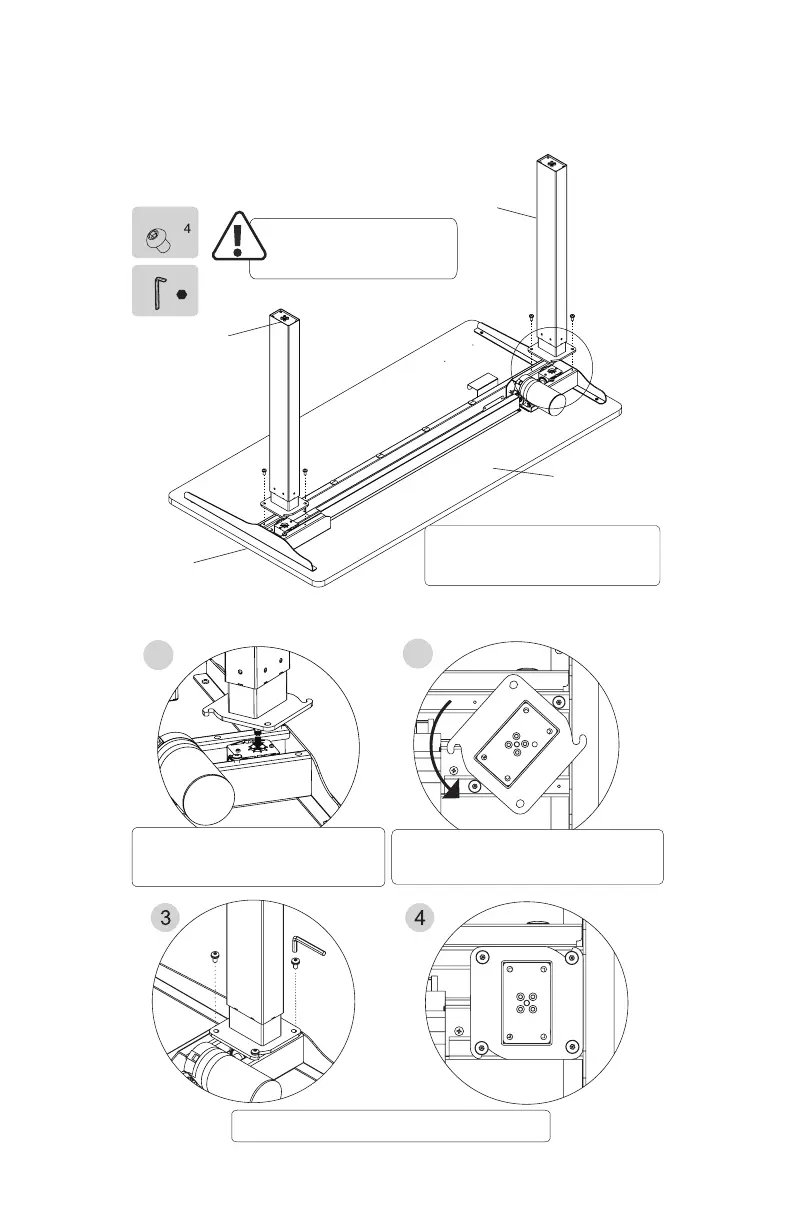

Install the lifting column (2) to
the tabletop (1), then tighten the
screws (A) with Allen key (C).
C
A
2
1
Screws
Insert
Insert the hexagon head of the column
along the wiring trough, ensure the side
of the wire head is facing the motor.
Rotate the column after inserting it, make
sure the screws on the supporting beam are
secure into the column slot.
Tighten the screws (A) with 4×4 Allen key
