COMGROW CNC Carving Machine User Manual

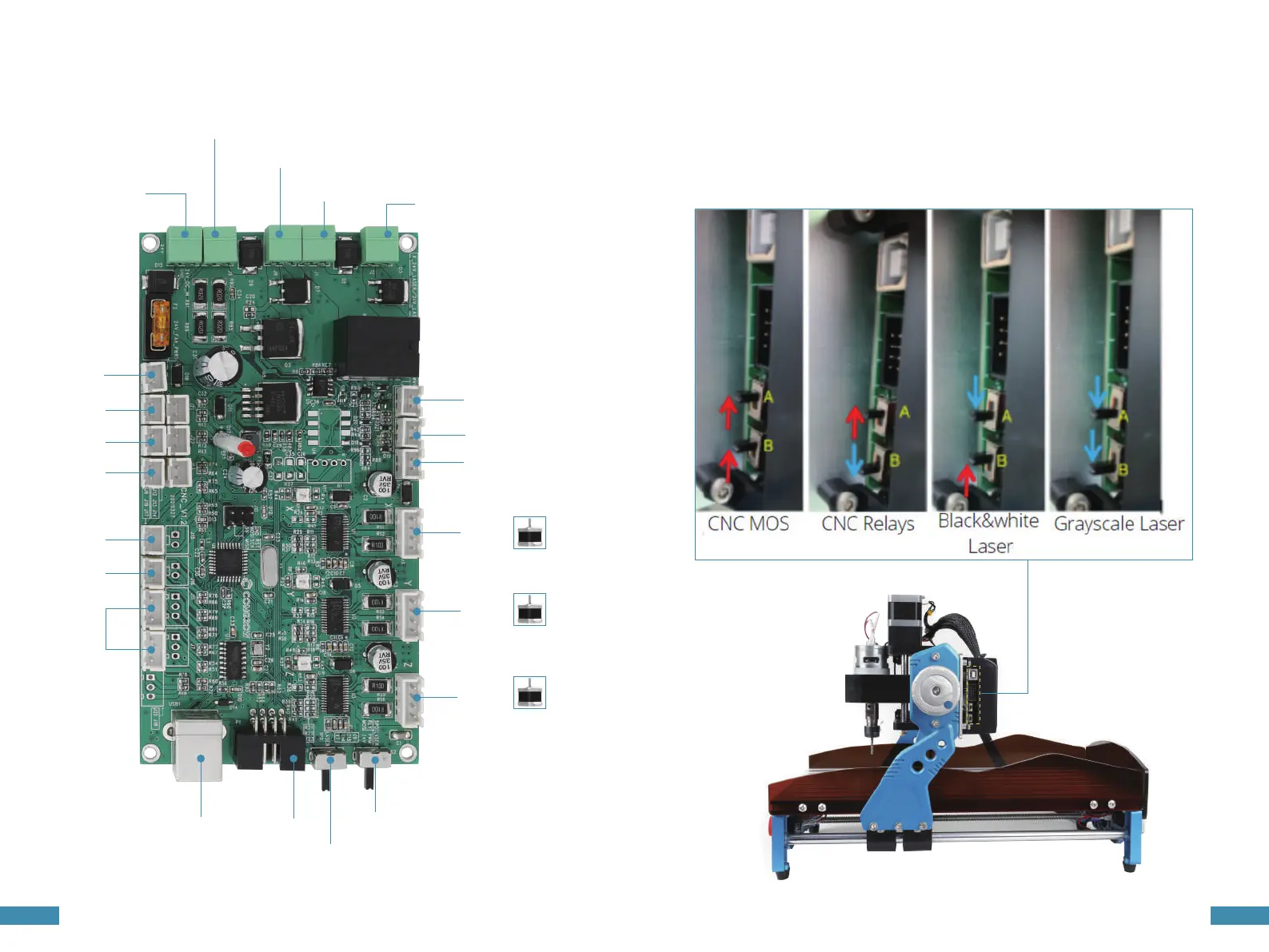

Instructions for use of the main board mode：
Mainboard Module
24V
power input
Fans
Z limit switch
Y limit switch
Z limit switch
Emergency
stop button
Adjusting-tool
Spindle MOS tube
mode power input
Spindle MOS tube
mode motor interface
Spindle relay mode
power input Spindle relay mode
motor interface
•AB top at the same time, for MOS tube mode, can adjust the spindle speed,
the motherboard default wiring in this mode.
•A up B down, for the relay mode, can not adjust the spindle speed, you need to use an external
current greater than on the motherboard.
•A down B up, f12A power supply, while changing the plug connectionor black and white carving mode.
•A down B down for grayscale engraving mode.
Preview port
USB Port
Offline control
handle port
Laser spindle switch
Functional Module
Z motor
Y motor
X motor
PWM
signal interface
PWM
power supply
Two-wire system
laser interface
12 13
