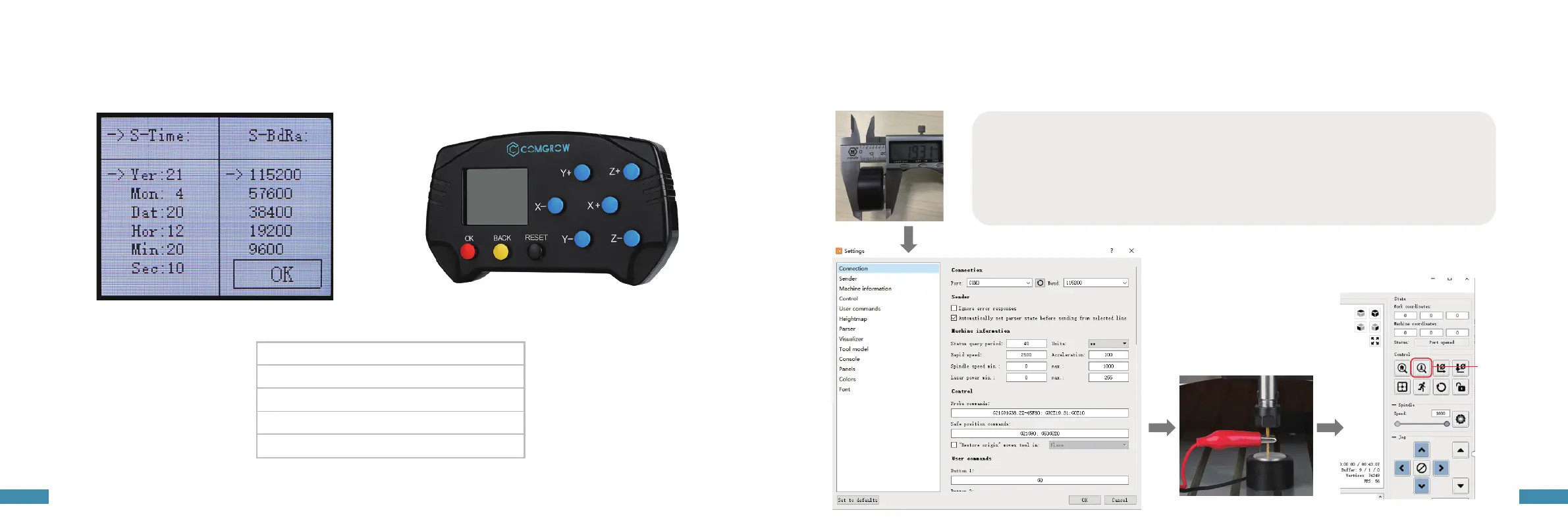

Tool setting gauge block
1. Measure the thickness of the tool setting gauge block
2. Modify the tool setting parameters in the Candle software settings and click OK.(You must input thethickness of the tool setting
gauge into the parameters, and thesystem will automatically shift the zero position down to the depth of the thickness of the
tool setting gauge when executing the file, so that the Z-axis working zero point is really determined).
3. Connect the tool setting instrument block cable to the main board plug, and clamp the chuck to the carving tool shank part.
4. Press the button to execute the tool setting command.
The use of tool setting instrument is very convenient for users to determine the working zero position of Z-axis,
when tool setting is completed, the system will confirm the current Z-axis position as the zero point of Z-axis working coordinate system.
1918
Press key [X+]or[X-] to select Time or BdRa
Press key [Y+]or[Y-] to select up or down options
Press key [Z+]or[Z-] to increase or reduce number
Press key [OK] to Confirm your choice
Long press key [BACK] to exit
Z-axis tool
setting
button
To Next Page
