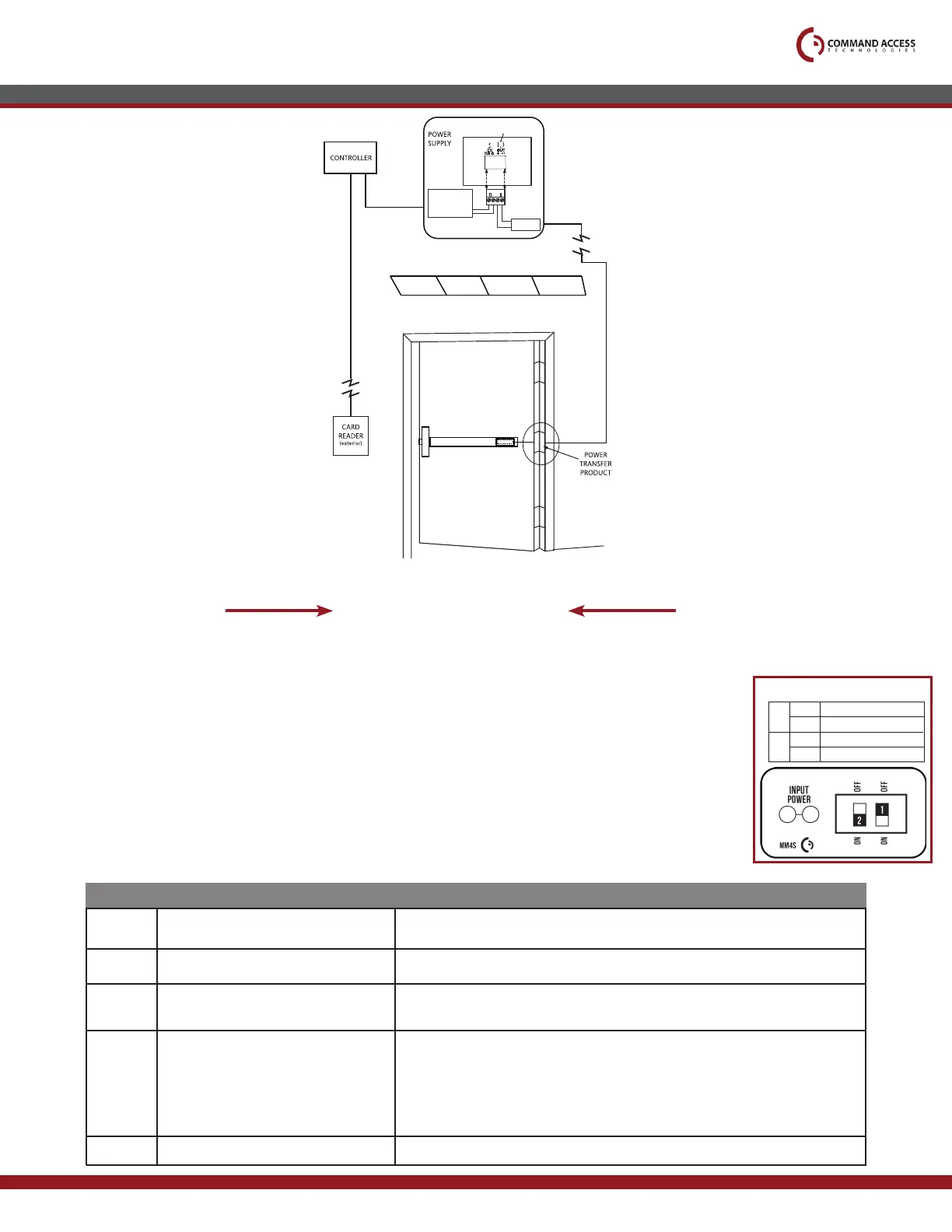

Technical Information
Step 1 -
Select your preferred torque mode (ships in standard torque). Press the
device push pad to the desired setting. (We recommend to fully depress
and release 5%, giving the device room for changing door conditions.)
Step 2 -
While depressing the push pad, apply power. (i.e. presenting the credential
to the reader).
Step 3 -
Continue to keep the pad depressed, the device will beep 6 times. After the
beeps have stopped, release the pad and the adjustment is now complete.
If not to your liking repeat the 3 steps.
Setting PTS
2 Beeps
3 Beeps
5 Beeps
6 Beeps
Beeps
Explanation
Solution
Over Voltage
Under Voltage
Retraction or dogging failure
PUSH TO SET
> 30V unit will shut down. Check voltage & adjust to 24 V.
< 20V unit will shut down. Check voltage & adjust to 24 V.
After 1st fail: 5 beeps then immediately attempts to retract again.
After 2nd fail: 5 beeps with pause in-between for 30 seconds then device
attempts to retract again.
After 3rd fail: 5 beeps every 7 minutes, device will not attempt to retract.
To Reset: Depress bar for 5 seconds at any time.
Device is recording it’s new position and power mode after the 6th beep.
Troubleshooting & Diagnostics
4 Beeps Failed Sensor
Verify all 3 sensor wires are installed correctly. Replace sensor if problem
persists by contacting ofce.
**Important Info**
Make sure to set PTS before finishing installation
MM4 SWITCHES
2
STANDARD TORQUE
HIGH TORQUE
PTS PROGRAMMING OFF
PTS PROGRAMMING ON
1
OFF
OFF
ON
ON
Ceiling Tile
Legend
Standard Placement
Module
GREEN
CHANNEL 1
LED
NORMALLY OPEN
DRY CONTACT FROM
ACCESS CONTROL
SYSTEM
NO VOLTAGE
LOCKING
HARDWARE
+
-
CAT
