Command Light KNIGHT 2 - Mounting; Holster Mounting

KNIGHT
2
12
Mounting
Place the provided spacers in the location of the light mounting holes. The spacers may be modied to
conform to the contour of the mounting location.
Remove any obstructions below the mounting surface such as headliners.
Attach any necessary lifting attachments to the KNIGHT
2

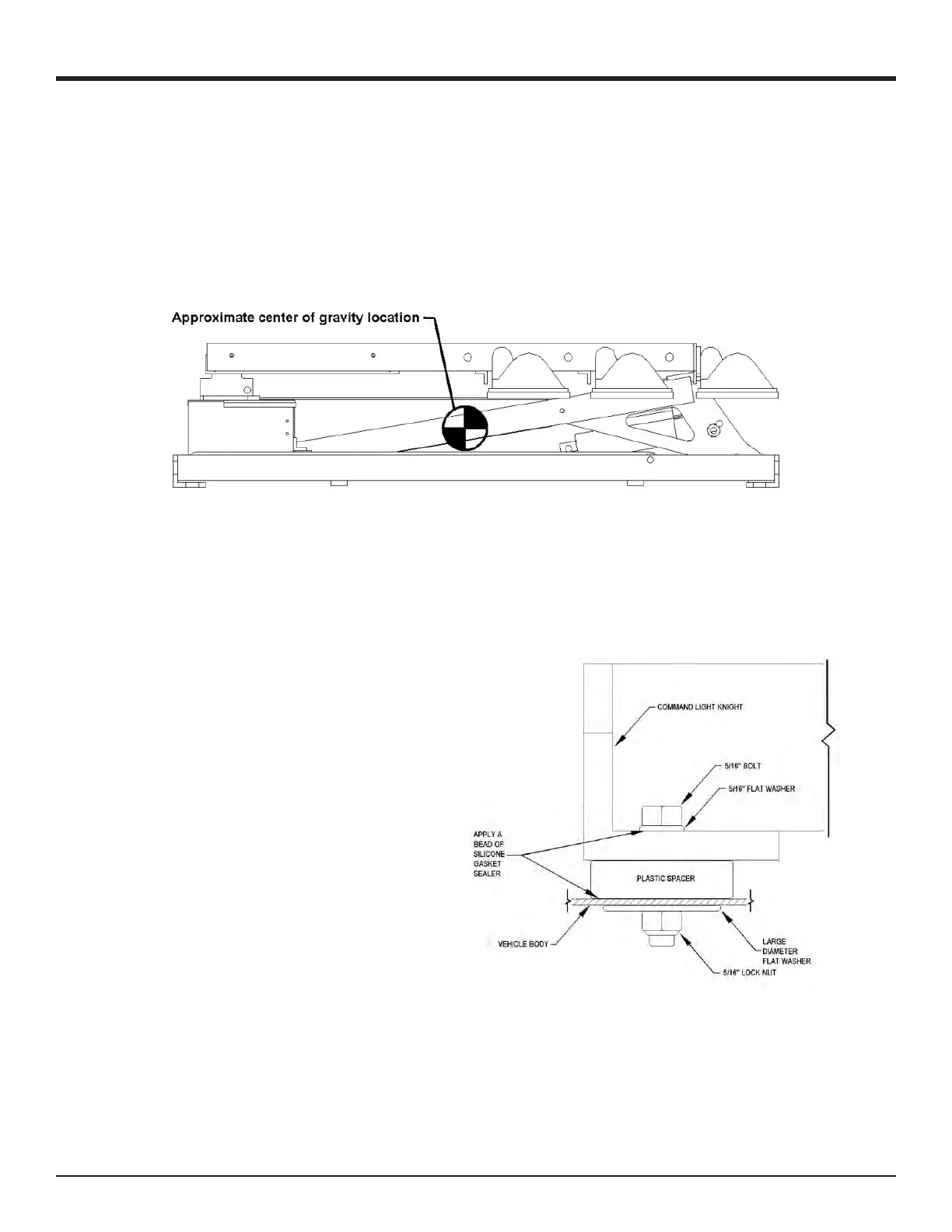

. The center of gravity (balance point) is
slightly behind the lower bank of lights.
Slowly lift the KNIGHT
2
and check for balanced lifting. Lower and make any necessary adjustments to
the lift points.
Lift and place the KNIGHT
2
into position above the spacers. Before placing the full weight of the unit
on the spacers align spacers with the holes in the end frame castings.
Drill
21
/
64
” holes in the mounting surface using
the end casting holes as a template.
Fasten the light using the provided hardware.
To ensure a weather-tight installation apply a
thin bead of silicone based gasket sealer to the
base of the spacer and underside of bolt head.
Remove any lifting straps and devices from
the
KNIGHT
2
.
Locate and drill the wire feed holes.
Holster Mounting
Using the holster mount as a template, mark hole locations.
Drill
17
/
64
" mounting holes.
Drill any holes required to route the control cable from the holster to the KNIGHT
2
relay box.
Attach the holster to the holster mount with the provided hardware.
