USER GUIDE
9
Operation
Raising the light from the nested position

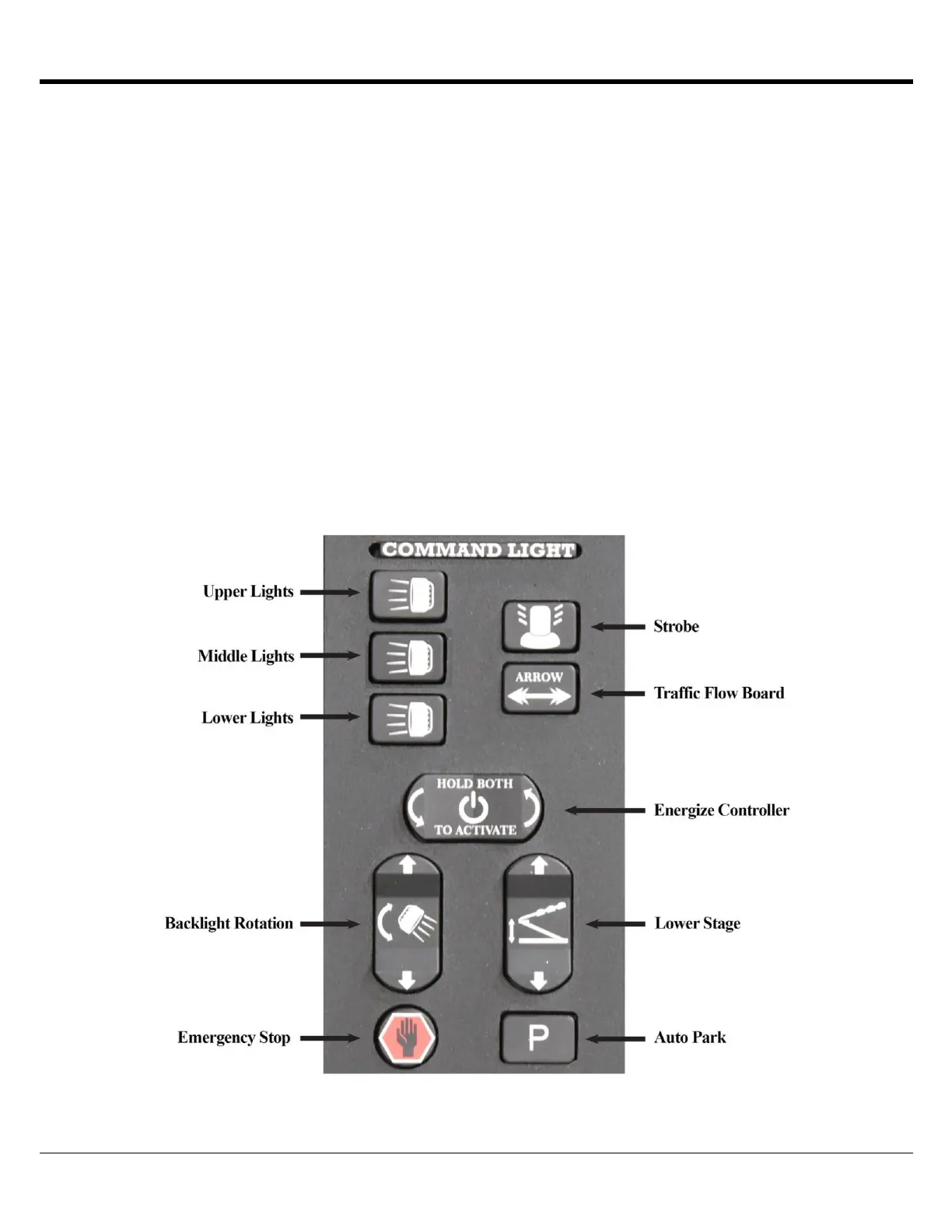

Using the control box, raise the lower or upper stage. You may also activate both stages
simultaneously. Control switches are of momentary action style and must be held in the
“on” position to actuate the stages.
The KNIGHT2 has an override system that precludes rotation of the upper stage until the
lower stage has elevated approximately 16” from the nested position. When the lower stage
is below 16” the following conditions exist:
• Upper stage is prevented from rotating.
• All lights are turned off, including strobe light if equipped, regardless of light switch
positions.
• Prevents the upper stage from moving down if upper stage is not centered.
If the supply from the generator is marginal, position the KNIGHT2 before turning on lights.
