KNIGHT
2
14
Warning Device Installation
Tools Required:
•
3
/
32
" Flathead Screwdriver
• Wire Strippers
• Small Torch or Lighter

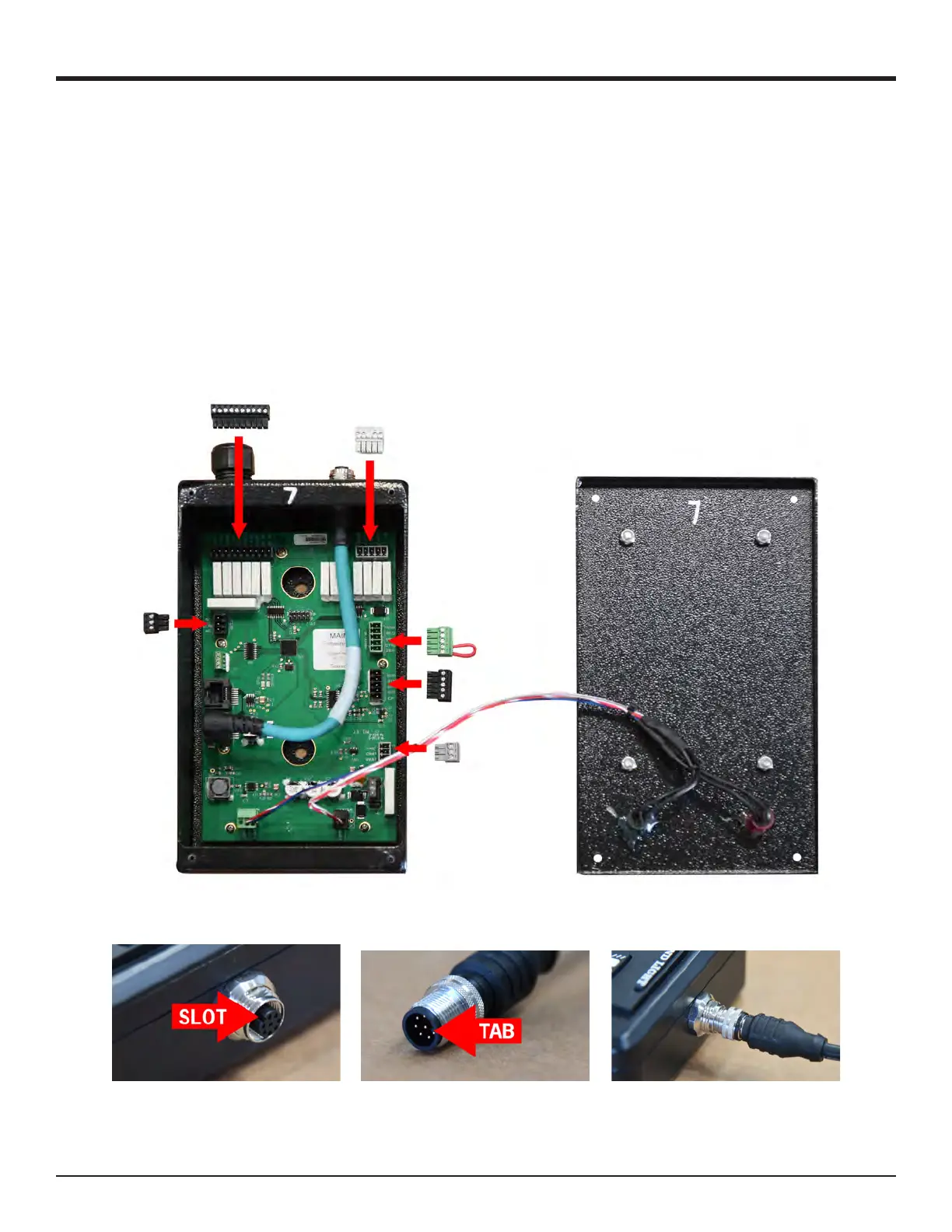

Wire the gray 22-20 control cable wires to the small connectors using the wiring schematics provided
on pages 36 and 37. There are 2 different schematics, one is the standard version and the other is the
version for dual control with wireless controllers or V-Mux control. The standard schematic will be used
for V-Mux or any other multiplex system if it is only being used for elevated warning. A V-Mux wiring
schematic and circuit board troubleshooting guide are included.
Detaching & Attaching the Controller
Make sure the tab on the coil cord connector lines up with the slot on the controller connector. Rotate
the coil cord connector clockwise until nger tight. DO NOT use tools to tighten this connector.
