Commax CDV-70K - Wiring and Connections; Camera Connector Polarity; Wiring Precautions

10

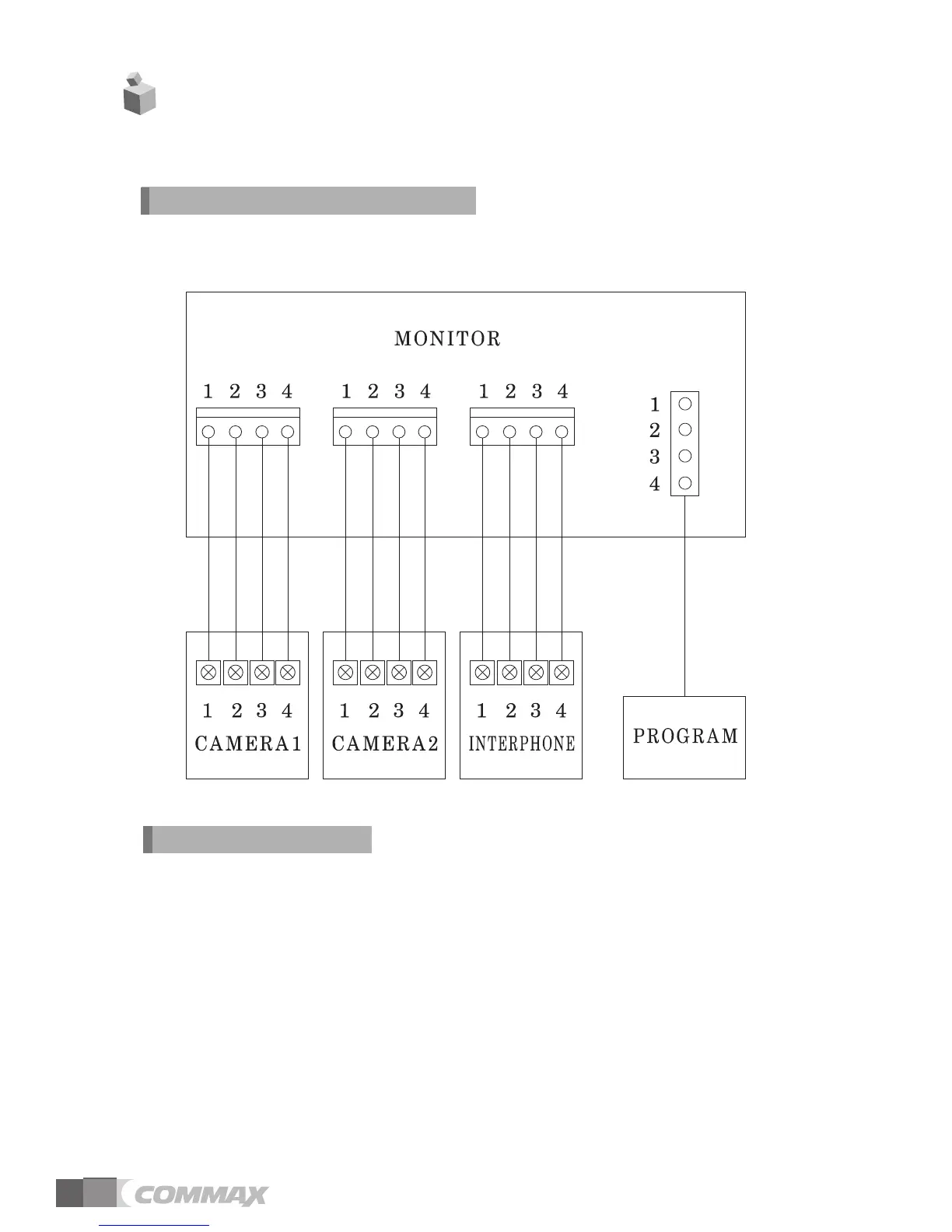

Camera connector polarity
1
. RED : VOICE 2. BLUE : GND 3. YELLOW : POWER(+12V) 4. WHITE : VIDEO
The wiring of this equipment is as follows.
Each device should be connected by separated cables.
If you use UTP CABLE[CAT.5] for CAMERA1and CAMERA2, 2 lines of UTP cable
are required.
Wiring precautions
6. Wiring
