Camera connecting terminal (4 wires with polarity)
1. RED: Voice signal input 2. BLUE: GND
3. YELLOW: Power (+12V)
4. WHITE: Video signal input
Sensor connecting terminal (3 wires with polarity)
1. RED: Power (+12V) 2. BLUE: GND 3. YELLOW: SENSOR Signal input
CCTV Connector (2 wires with polarity)
1. RED: Video signal input 2. BLUE: GND

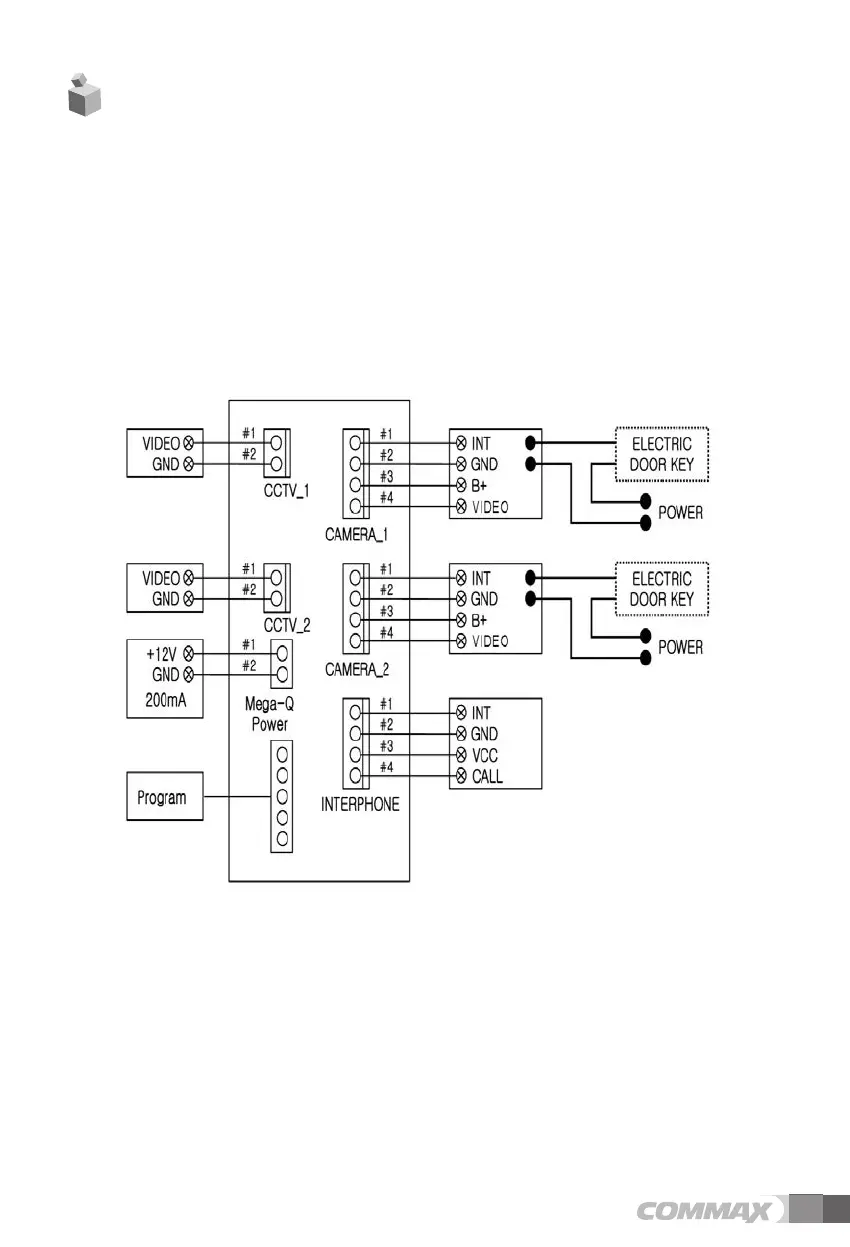

5. Wiring schematic
