Commax DP-4VHP User Manual

1. General Function
2. Installation
1. Call a DP-4VHP from common entrance
a) Ring a chime sound.
b) Pick up a handset to talk.
c) While on the phone, press door release button to open the door.
d) Leave the handset to end the talk.
2. Call a DP-4VHP from Master Unit
a) Ring a chime sound.
b) Pick up a handset to talk.
3. Call a Master from DP-4VHP
a) Press the “ Call” button on DP-4VHP continuously.
b) Once a Master receives a call, then your call is on the line. During the conversation, in case
there is call from the entrance, then all three parties can talk each other.


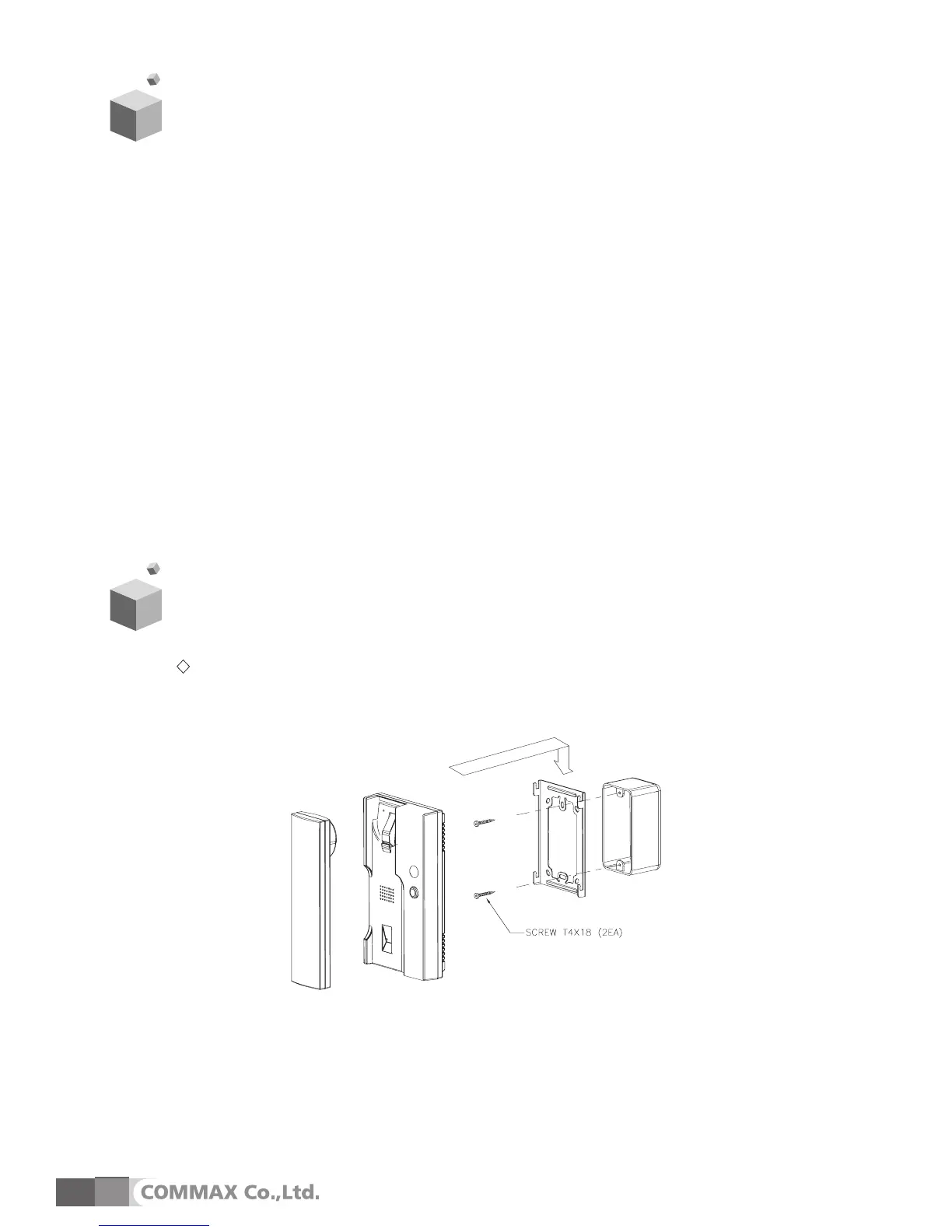

Installation Diagram
 Caution
- Please avoid direct ray of sun light to install this unit.
- 1450~1500mm is right height from the floor.
- Please avoid the place where being affected by gas, magnetic source and humid.
4

Commax DP-4VHP Specifications

General

Power Voltage	220V~, 50/60Hz
Power Consumption	MAX : 4 W (220V/60Hz)
Transmission	To Master unit : 4wires
Communication Method	Handset
Sound	From Outdoor unit : Electronic Chime
Time	60 ± 20sec
Distance	28m(Ø0.5) / 50m(Ø0.65) / 70m(Ø0.8)
Operating Temperature	0 ~ +50°C

Weight and Dimensions

Weight	0.55 kg
Dimension	107(W)X195(H)X52(D) mm
