Commax DP-4VHP User Manual

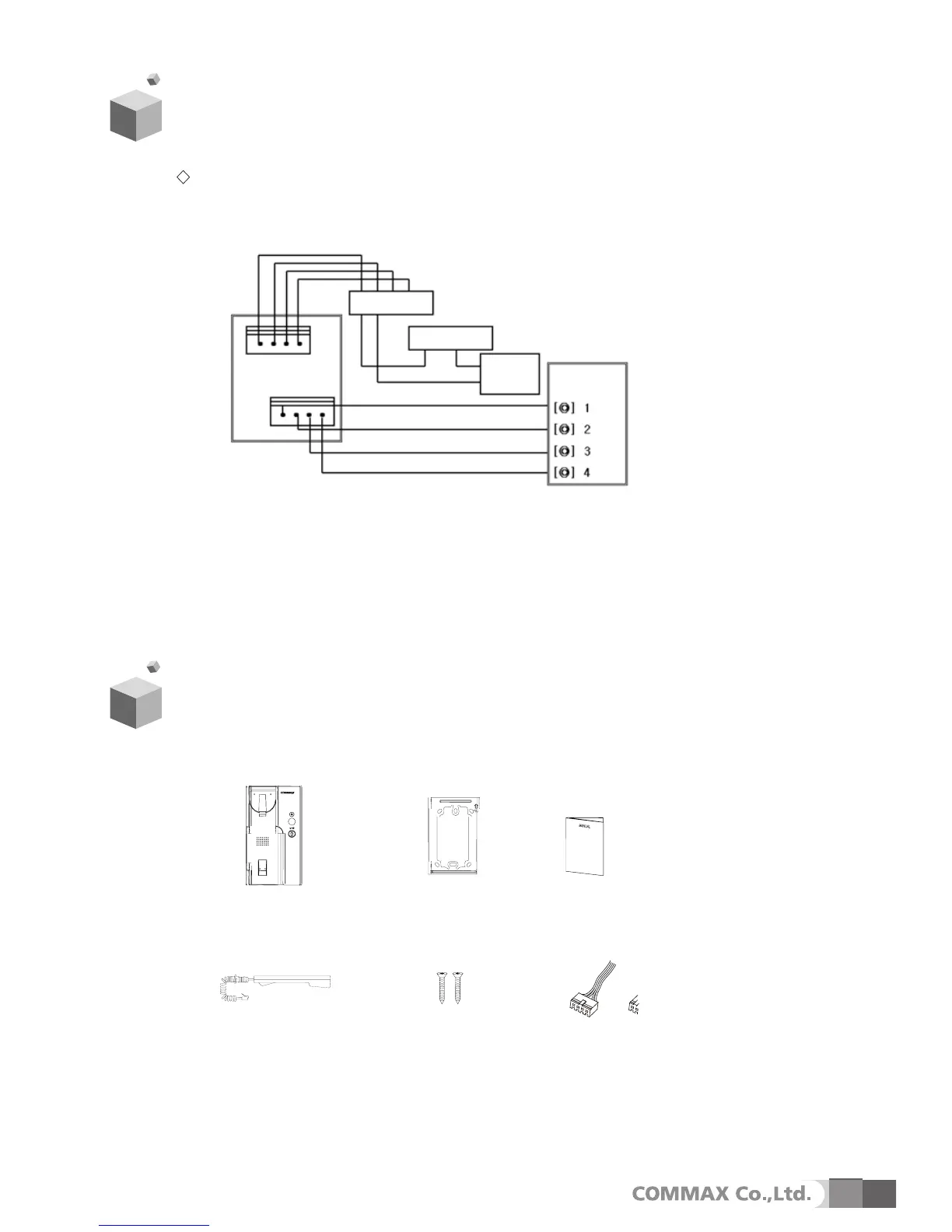

3. Wiring diagram
4. Contents

Wiring
 Warning
1. In case of installation around the area where pass the high-voltage line, please use
metal tube with coaxial cable.
2. Any malfunction or abnormal operation shall be caused by scar or peel off the
wire.
Tp Rp Vp QTp
Body
Wall bracket
Manual
Handset
screw
T4X18(2EA)
4P connector(1EA)
5
RBYW
CAMERA
MASTER DP-4VHP
POWER
SW

Commax DP-4VHP Specifications

General

Power Voltage	220V~, 50/60Hz
Power Consumption	MAX : 4 W (220V/60Hz)
Transmission	To Master unit : 4wires
Communication Method	Handset
Sound	From Outdoor unit : Electronic Chime
Time	60 ± 20sec
Distance	28m(Ø0.5) / 50m(Ø0.65) / 70m(Ø0.8)
Operating Temperature	0 ~ +50°C

Weight and Dimensions

Weight	0.55 kg
Dimension	107(W)X195(H)X52(D) mm
