1581 SERVICE MANUAL

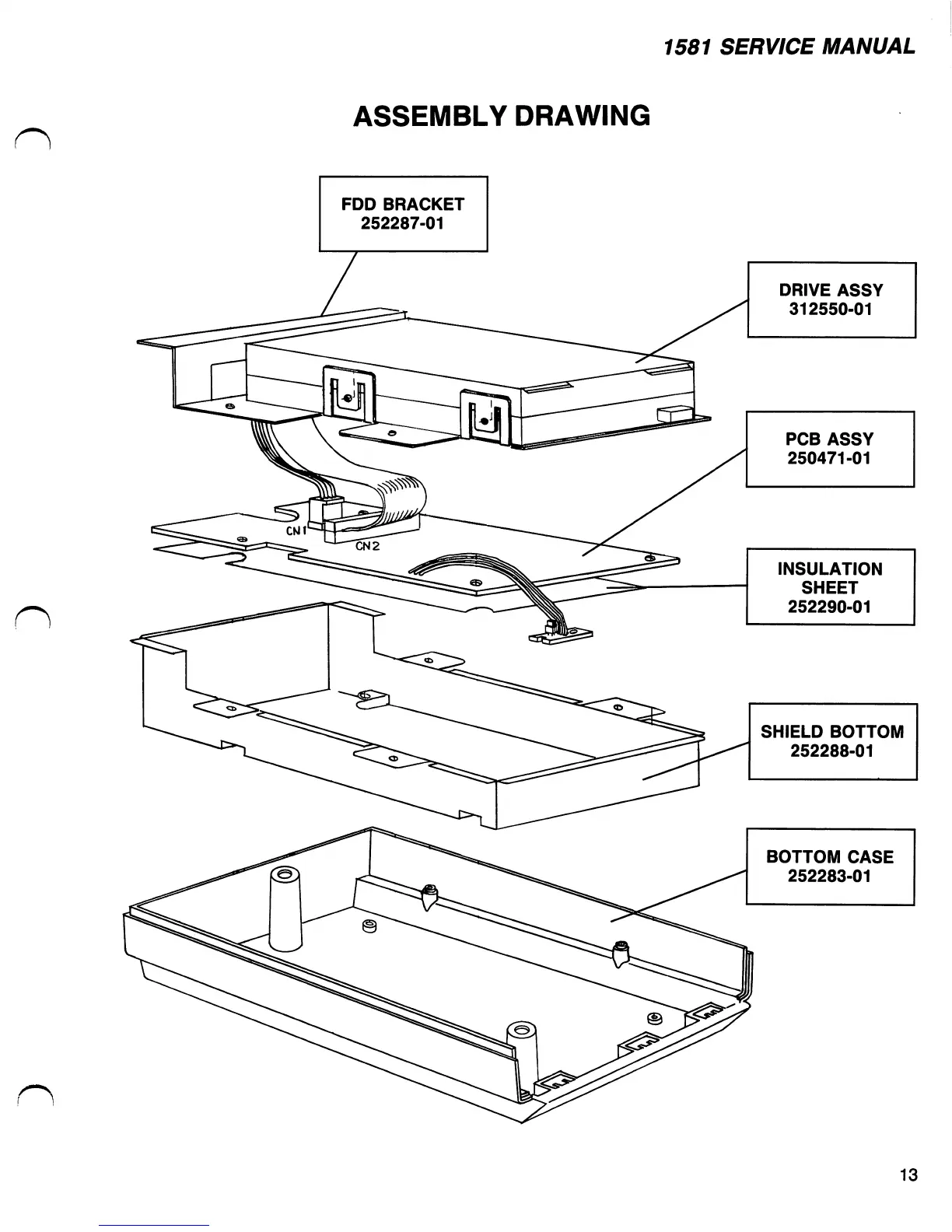

ASSEMBLY DRAWING
FDD BRACKET
252287-01
DRIVE ASSY
312550-01
PCB ASSY
250471-01
INSULATION
SHEET
252290-01
SHIELD BOTTOM
252288-01
BOTTOM CASE
252283-01
