Commodore 1084S - Page 6

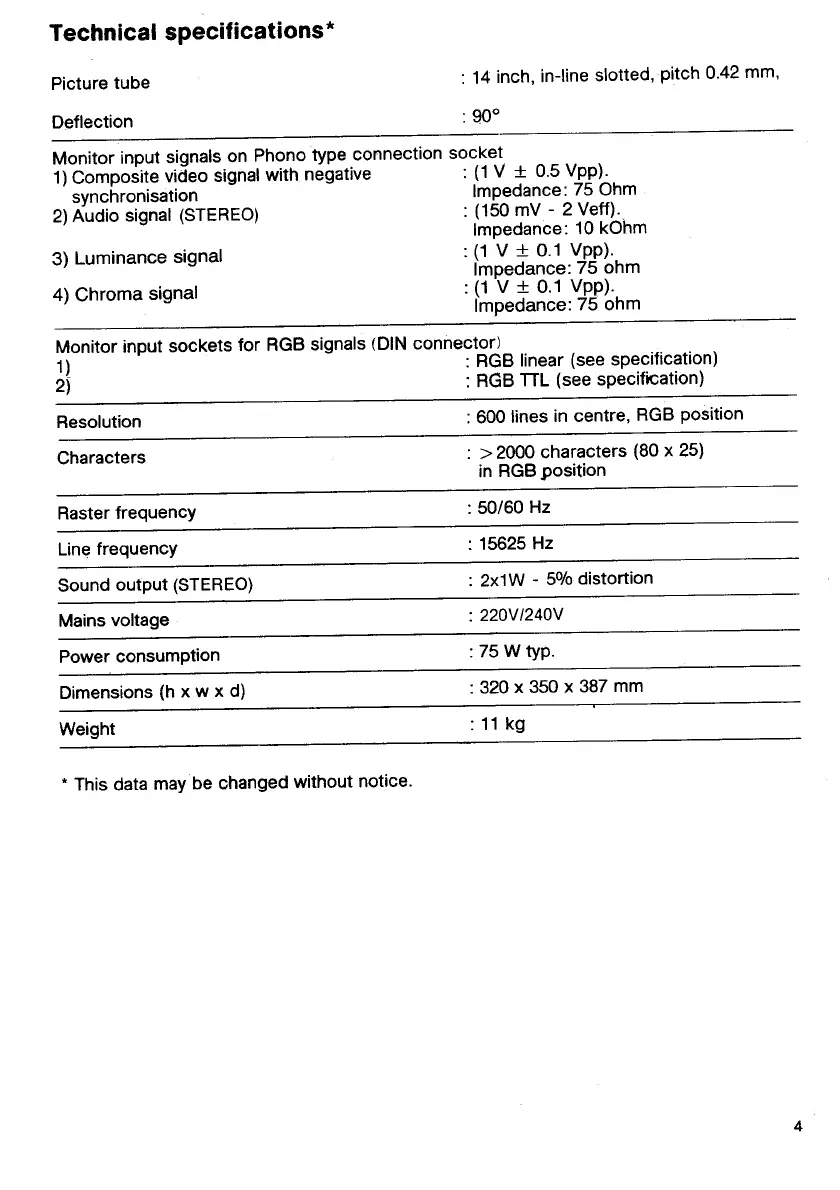

Technical
specifications'
Picture tube
Deflection
14
inch,
in-line
slotted,
pitch
0.42
mm,
:90°
Monitor
input
signals
on
Phono
type
connection
socket
1)
Composite
video
signal
with
negative
synchronisation
2) Audio signal (STEREO)
3) Luminance signal
4) Chroma signal
(1 V + 0.5 Vpp).
Impedance: 75 Ohm
(150 mV - 2Veff).
Impedance: 10 kOhm
(1 V ± 0.1 Vpp).
Impedance: 75 ohm
(1 V ± 0.1 Vpp).
Impedance: 75 ohm
Monitor
input
sockets
for
RGB
signals
(DIN
connector)
1) : RGB linear (see specification)
2j : RGB TTL (see specification)
Resolution
600 lines in centre, RGB position
Characters
>2000 characters (80 x 25)
in RGB position
Raster frequency
50/60 Hz
Line frequency
15625 Hz
Sound output (STEREO)
2x1W - 5% distortion
Mains voltage
220V/240V
Power consumption
75 W typ.
Dimensions (h x w x d)
320 x 350 x 387 mm
Weight
:11 kg
This
data
may
be
changed
without
notice.
