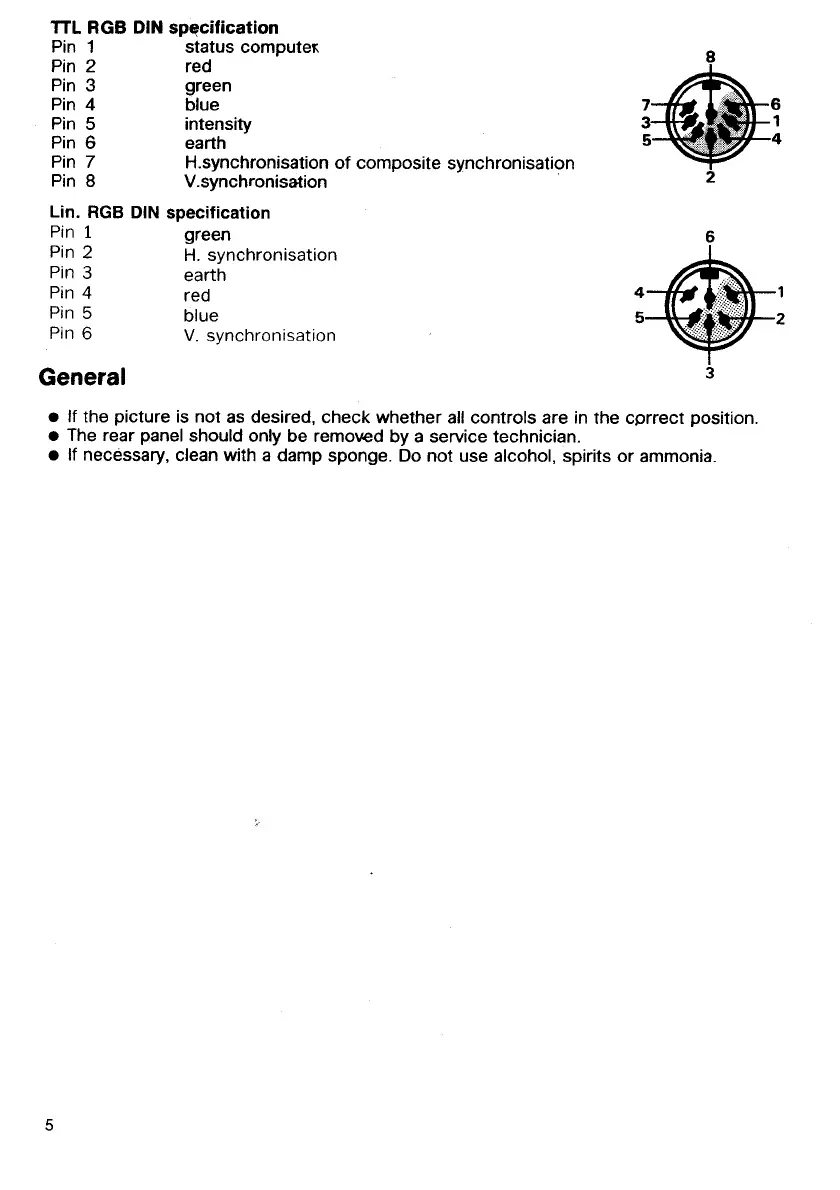

TTL RGB DIN specification
Pin 1 status computet;
Pin 2 red
Pin 3
green
Pin 4
blue
Pin 5
intensity
Pin 6
earth
Pin 7
H.synchronisation c
Pin 8
V.synchronisation
Lin. RGB DIN
specification
Pin 1
green
Pin 2
H. synchronisation
Pin 3
earth
Pin 4
red
Pin 5
blue
Pin 6
V. synchronisation
General
• If the picture is not as desired, check whether all controls are in the cprrect position.
• The rear panel should only be removed by a service technician.
• If necessary, clean with a damp sponge. Do not use alcohol, spirits or ammonia.
