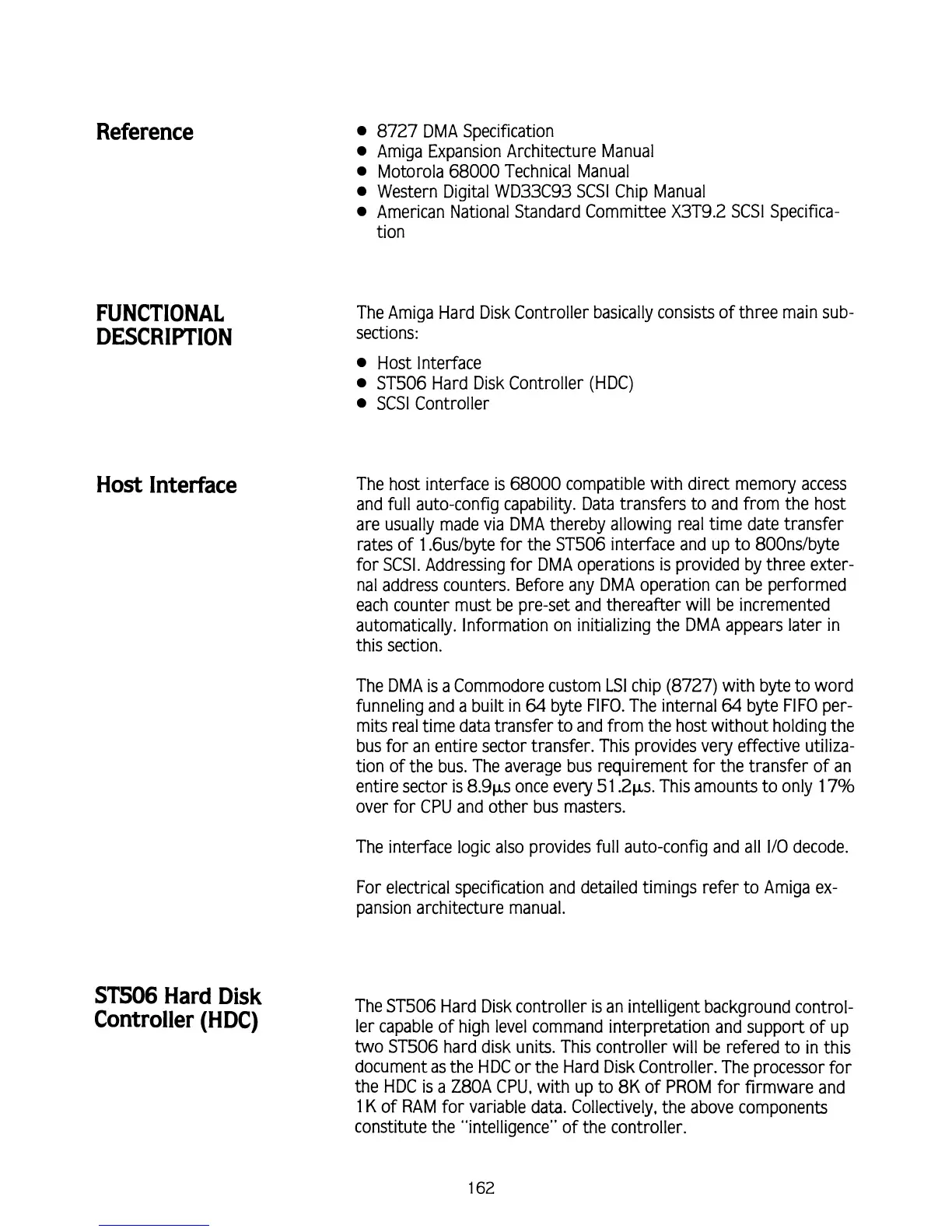

Reference
FUNCTIONAL
DESCRIPTION
Host Interface
ST506
Hard
Disk
Controller
(HDC)
8727 DMA Specification
Amiga Expansion Architecture Manual
Motorola
68000
Technical Manual
Western Digital WD33C93 SCSl Chip Manual
American National Standard Committee X3T9.2 SCSl Specifica-
tion
The Amiga Hard Disk Controller basically consists of three main sub-
sections:
Host Interface
ST506 Hard Disk Controller (HDC)
SCSl Controller
The host interface is
68000
compatible with direct memory access
and full auto-config capability. Data transfers to and from the host
are usually made via
DMA
thereby allowing real time date transfer
rates of
1
.6us/byte for the ST506 interface and up to 800nslbyte
for SCSI. Addressing for DMA operations is provided by three exter-
nal address counters. Before any DMA operation can be performed
each counter must be pre-set and thereafter will be incremented
automatically. Information on initializing the DMA appears later in
this section.
The DMA is a Commodore custom LSI chip (8727) with byte to word
funneling and a built in
64
byte FIFO. The internal
64
byte FIFO per-
mits real time data transfer to and from the host without holding the
bus for an entire sector transfer. This provides very effective utiliza-
tion of the bus. The average bus requirement for the transfer of an
entire sector is
8.9~s once every 51.2~~. This amounts to only 17O/0
over for CPU and other bus masters.
The interface logic also provides full auto-config and all
I10 decode.
For electrical specification and detailed timings refer to Amiga ex-
pansion architecture manual.
The
STSO6 Hard Disk controller
is
an intelligent background control-
ler capable of high level command interpretation and support of up
two
ST506 hard disk units. This controller will be refered to in this
document as the HDC or the Hard Disk Controller. The processor for
the HDC is a
Z80A CPU, with up to
8K
of PROM for firmware and
1
K
of RAM for variable data. Collectively, the above components
constitute the "intelligence" of the controller.
