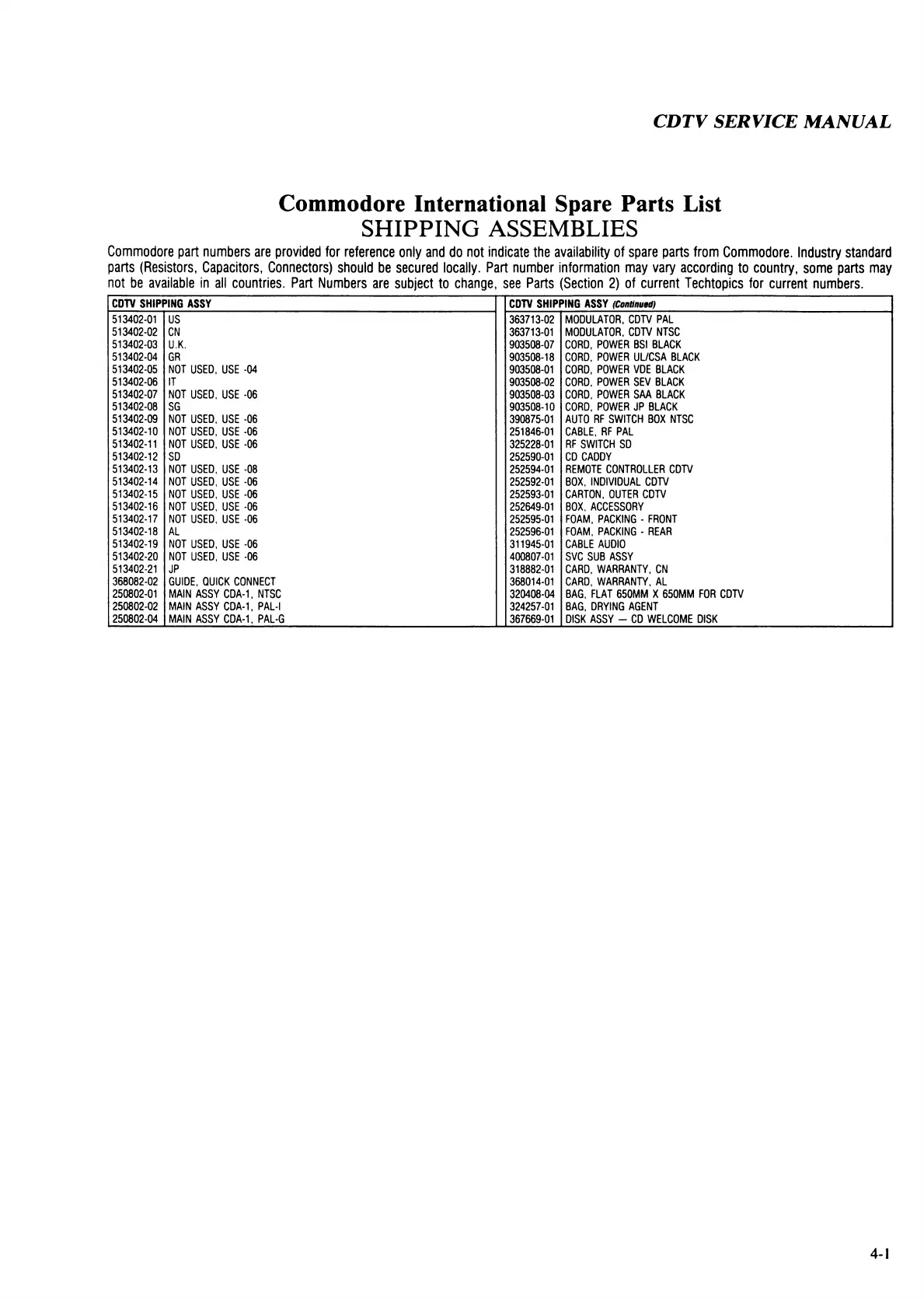

CDTV SERVICE MANUAL
Commodore International Spare Parts List
SHIPPING ASSEMBLIES
Commodore part numbers are provided for reference only and do not indicate the availability of spare parts from Commodore. Industry Standard
parts (Resistors, Capacitors, Connectors) should be secured locally. Part number Information may vary according to country, some parts may
not be available in all countries. Part Numbers are subject to change, see Parts (Section 2) of current Techtopics for current numbers.
CDTV SHIPPING ASSY CDTV SHIPPING ASSY (Contfnued)
513402-01 US 363713-02 MODULATOR, CDTV PAL
513402-02 CN 363713-01 MODULATOR, CDTV NTSC
513402-03 U.K. 903508-07 CORD, POWER BSI BLACK
513402-04
GR
903508-18
CORD, POWER UL/CSA BLACK
513402-05 NOT USED, USE -04
903508-01
CORD, POWER VDE BLACK
513402-06 IT
903508-02
CORD, POWER SEV BLACK
513402-07
NOT USED, USE -06 903508-03 CORD. POWER SAA BLACK
513402-08
SG 903508-10 CORD, POWER JP BLACK
513402-09 NOT USED, USE -06
390875-01
AUTO RF SWITCH BOX NTSC
513402-10 NOT USED, USE -06 251846-01 CABLE, RF PAL
513402-11 NOT USED, USE -06
325228-01
RF SWITCH SD
513402-12 SD
252590-01
CD CADDY
513402-13 NOT USED, USE -08
252594-01 REMOTE CONTROLLER CDTV
513402-14
NOT USED, USE -06
252592-01
BOX, INDIVIDUAL CDTV
513402-15 NOT USED, USE -06
252593-01
CARTON, OUTER CDTV
513402-16 NOT USED, USE -06
252649-01
BOX, ACCESSORY
513402-17
NOT USED, USE -06
252595-01
FOAM, PACKING - FRONT
513402-18
AL
252596-01 FOAM, PACKING - REAR
513402-19 NOT USED, USE -06
311945-01 CABLE AUDIO
513402-20 NOT USED, USE -06
400807-01
SVC SUB ASSY
513402-21
JP 318882-01
CARD, WARRANTY, CN
368082-02 GUIDE, QUICK CONNECT 368014-01 CARD, WARRANTY, AL
250802-01 MAIN ASSY CDA-1, NTSC 320408-04 BAG, FLAT 650MM X 650MM FOR CDTV
250802-02
MAIN ASSY CDA-1, PAL-I
324257-01 BAG, DRYING AGENT
250802-04
MAIN ASSY CDA-1, PAL-G
367669-01
DISK ASSY - CD WELCOME DISK
