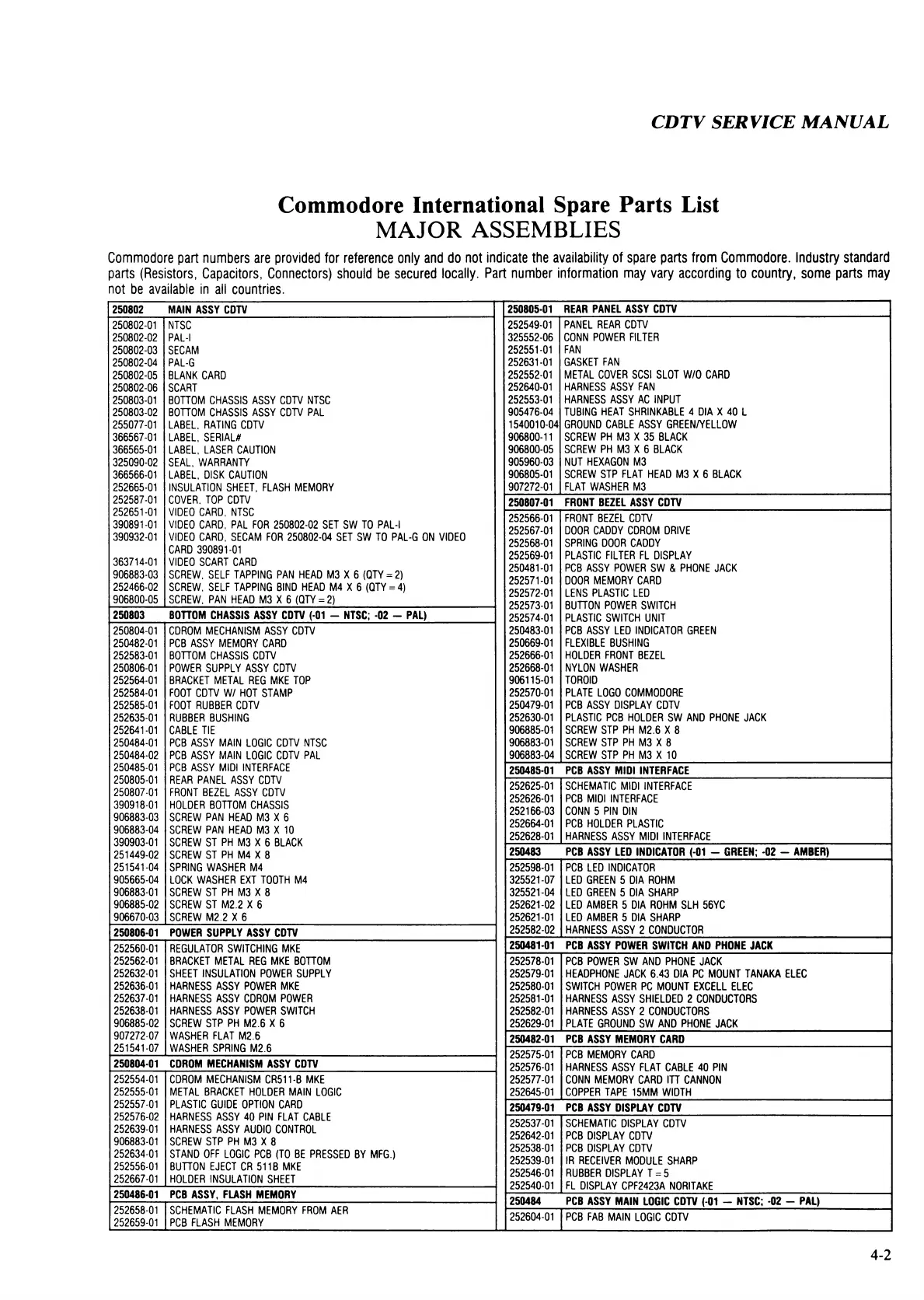

CDTV SERVICE MANUAL
Commodore International Spare Parts List
MAJOR ASSEMBLIES
Commodore part numbers are provided for reference only and do not indicate the availability of spare parts from Commodore. Industry Standard
parts (Resistors, Capacitors, Connectors) should be secured locally. Part number information may vary according to country, some parts may
not be available in all countries.
250802 MAIN ASSY CDTV
250805-01
REAR PANEL ASSY CDTV
250802-01
NTSC
252549-01 PANEL REAR CDTV
250802-02
PAL-I
325552-06
CONN POWER FILTER
250802-03 SECAM
252551-01
FAN
250802-04
PAL-G
252631-01 GASKET FAN
250802-05
BLANK CARD
252552-01
METAL COVER SCSI SLOT W/O CARD
250802-06 SCART
252640-01 HARNESS ASSY FAN
250803-01 BOTTOM CHASSIS ASSY CDTV NTSC
252553-01
HARNESS ASSY AC INPUT
250803-02 BOTTOM CHASSIS ASSY CDTV PAL
905476-04 TUBING HEAT SHRINKABLE 4 DIA X 40 L
255077-01
LABEL. RATING CDTV
1540010-04 GROUND CABLE ASSY GREEN/YELLOW
366567-01
LABEL. SERIAL#
906800-11
SCREW PH M3 X 35 BLACK
366565-01
LABEL. LASER CAUTION
906800-05
SCREW PH M3 X 6 BLACK
325090-02
SEAL. WARRANTY
905960-03
NUT HEXAGON M3
366566-01 LABEL. DISK CAUTION
906805-01 SCREW STP FLAT HEAD M3 X 6 BLACK
252665-01 INSULATION SHEET, FLASH MEMORY
907272-01
FLAT WASHER M3
252587-01
252651-01
390891-01
390932-01
COVER. TOP CDTV
VIDEO CARD. NTSC
VIDEO CARD, PAL FOR 250802-02 SET SW TO PAL-I
VIDEO CARD. SECAM FOR 250802-04 SET SW TO PAL-G ON VIDEO
CARD 390891-01
VIDEO SCART CARD
SCREW. SELF TAPPING PAN HEAD M3 X 6 (QTY = 2)
SCREW. SELF TAPPING BIND HEAD M4 X 6 (QTY = 4)
SCREW. PAN HEAD M3 X 6 (QTY = 2)
250807-01
FRONT BEZEL ASSY CDTV
252566-01
252567-01
252568-01
FRONT BEZEL CDTV
DOOR CADDY CDROM DRIVE
SPRING DOOR CADDY
363714-01
906883-03
252466-02
906800-05
252569-01
250481-01
252571-01
252572-01
252573-01
252574-01
PLASTIC FILTER FL DISPLAY
PCB ASSY POWER SW & PHONE JACK
DOOR MEMORY CARD
LENS PLASTIC LED
BUTTON POWER SWITCH
PLASTIC SWITCH UNIT
250803 BOTTOM CHASSIS ASSY CDTV ( 01 - NTSC; -02 - PAL)
250804-01 CDROM MECHANISM ASSY CDTV
250483-01 PCB ASSY LED INDICATOR GREEN
250482-01 PCB ASSY MEMORY CARD
250669-01 FLEXIBLE BUSHING
252583-01 BOTTOM CHASSIS CDTV
252666-01 HOLDER FRONT BEZEL
250806-01 POWER SUPPLY ASSY CDTV
252668-01 NYLON WASHER
252564-01
BRACKET METAL REG MKE TOP
906115-01 TOROID
252584-01 FOOT CDTV W/ HOT STAMP
252570-01 PLATE LOGO COMMODORE
252585-01
FOOT RUBBER CDTV 250479-01 PCB ASSY DISPLAY CDTV
252635-01 RUBBER BUSHING
252630-01 PLASTIC PCB HOLDER SW AND PHONE JACK
252641-01
CABLE TIE
906885-01
SCREW STP PH M2.6 X 8
250484-01
PCB ASSY MAIN LOGIC CDTV NTSC
906883-01 SCREW STP PH M3 X 8
250484-02 PCB ASSY MAIN LOGIC CDTV PAL
906883-04
SCREW STP PH M3 X 10
250485-01
250805-01
250807-01
390918-01
906883-03
906883-04
390903-01
251449-02
PCB ASSY MIDI INTERFACE
REAR PANEL ASSY CDTV
FRONT BEZEL ASSY CDTV
HOLDER BOTTOM CHASSIS
SCREW PAN HEAD M3 X 6
SCREW PAN HEAD M3 X 10
SCREW ST PH M3 X 6 BLACK
SCREW ST PH M4 X 8
250485-01 PCB ASSY MIDI INTERFACE
252625-01
252626-01
252166-03
252664-01
252628-01
SCHEMATIC MIDI INTERFACE
PCB MIDI INTERFACE
CONN 5 PIN DIN
PCB HOLDER PLASTIC
HARNESS ASSY MIDI INTERFACE
250483 PCB ASSY LED INDICATOR (-01 - GREEN; -02 - AMBER)
251541-04
SPRING WASHER M4 252598-01
PCB LED INDICATOR
905665-04
LOCK WASHER EXT TOOTH M4
325521-07
LED GREEN 5 DIA ROHM
906883-01
SCREW ST PH M3 X 8 325521-04
LED GREEN 5 DIA SHARP
906885-02 SCREW ST M2.2 X 6
252621-02 LED AMBER 5 DIA ROHM SLH 56YC
906670-03 SCREW M2.2 X 6 252621-01 LED AMBER 5 DIA SHARP
25080601 POWER SUPPLY ASSY CDTV
252582-02
HARNESS ASSY 2 CONDUCTOR
252560-01 REGULATOR SWITCHING MKE
250481-01
PCB ASSY POWER SWITCH AND PHONE JACK
252562-01 BRACKET METAL REG MKE BOTTOM
252578-01
PCB POWER SW AND PHONE JACK
252632-01 SHEET INSULATION POWER SUPPLY 252579-01 HEADPHONE JACK 6.43 DIA PC MOUNT TANAKA ELEC
252636-01
HARNESS ASSY POWER MKE
252580-01
SWITCH POWER PC MOUNT EXCELL ELEC
252637-01 HARNESS ASSY CDROM POWER
252581-01
HARNESS ASSY SHIELDED 2 CONDUCTORS
252638-01 HARNESS ASSY POWER SWITCH
252582-01
HARNESS ASSY 2 CONDUCTORS
906885-02 SCREW STP PH M2.6 X 6 252629-01 PLATE GROUND SW AND PHONE JACK
907272-07
251541-07
WASHER FLAT M2.6
WASHER SPRING M2.6
250482-01
PCB ASSY MEMORY CARD
252575-01
252576-01
PCB MEMORY CARD
HARNESS ASSY FLAT CABLE 40 PIN
25080401 CDROM MECHANISM ASSY CDTV
252554-01 CDROM MECHANISM CR511-B MKE
252577-01 CONN MEMORY CARD ITT CANNON
252555-01 METAL BRACKET HOLDER MAIN LOGIC
252645-01 COPPER TAPE 15MM WIDTH
252557-01
252576-02
252639-01
906883-01
252634-01
252556-01
252667-01
PLASTIC GUIDE OPTION CARD
HARNESS ASSY 40 PIN FLAT CABLE
HARNESS ASSY AUDIO CONTROL
SCREW STP PH M3 X 8
STAND OFF LOGIC PCB (TO BE PRESSED BY MFG.)
BUTTON EJECT CR 511B MKE
HOLDER INSULATION SHEET
250479-01
PCB ASSY DISPLAY CDTV
252537-01
252642-01
252538-01
252539-01
252546-01
252540-01
SCHEMATIC DISPLAY CDTV
PCB DISPLAY CDTV
PCB DISPLAY CDTV
IR RECEIVER MODULE SHARP
RUBBER DISPLAY T = 5
FL DISPLAY CPF2423A NORITAKE
25048601 PCB ASSY, FLASH MEMORY
250484
PCB ASSY MAIN LOGIC CDTV (-01 - NTSC; -02 - PAL)
252658-01
252659-01
SCHEMATIC FLASH MEMORY FROM AER
PCB FLASH MEMORY
252604-01
PCB FAB MAIN LOGIC CDTV
