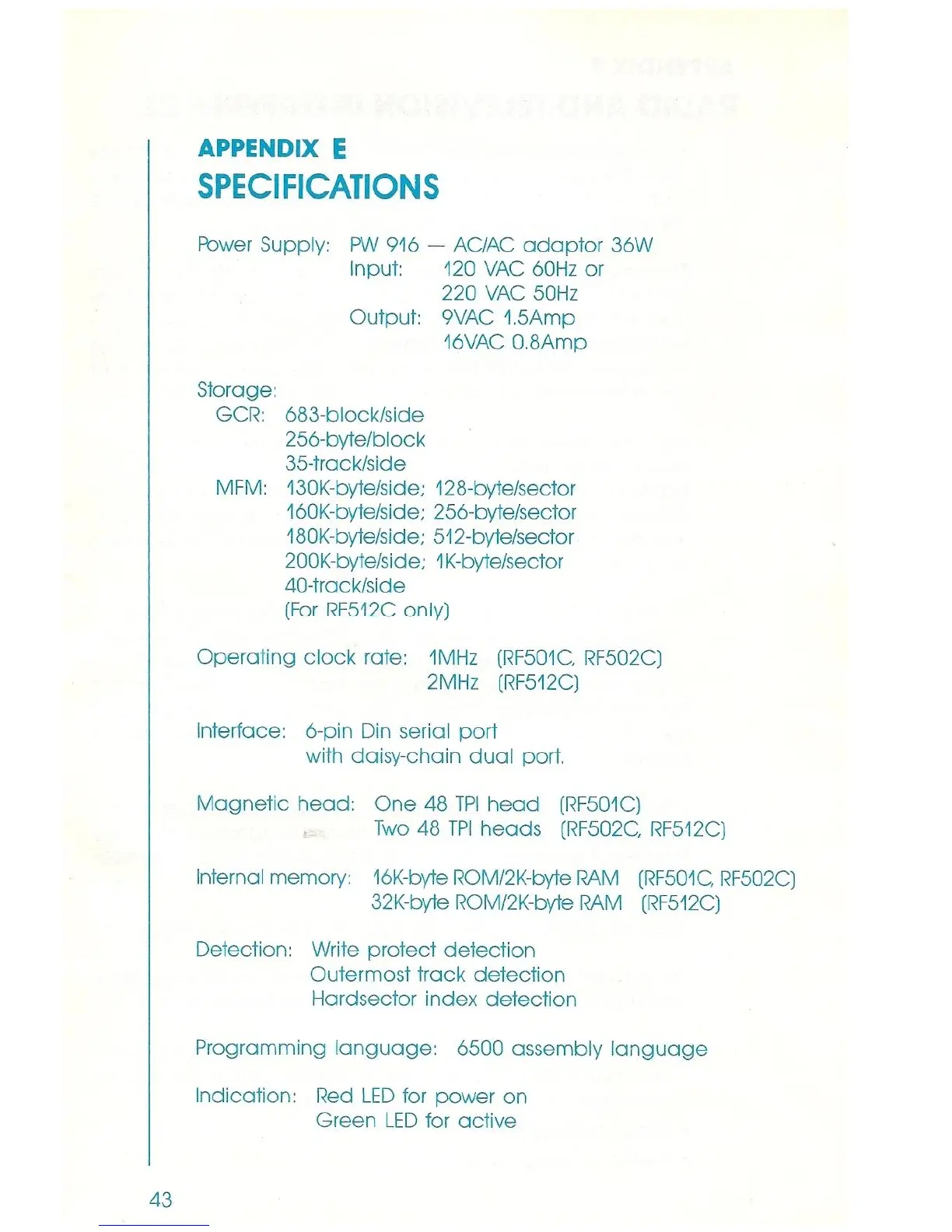

Commodore RF512C - Specifications

43
APPENDIX E
SPECI FICATIONS
Fbwer Supply: FW 916 - AC/AC adaptor 36W
Storage:
Input:
120 VAC 60Hz or
220
VAC 50Hz
Output: 9VAC 1. 5Amp
16VAC 0.8Amp
GCR : 683-block/side
256-byte/block
35-track/side
MFM : 130K -byte/side; 128-byte/sector
160K-byte/side; 256-byte/sector
180K -byte/side; 512 -byte/sector
200K -byte/side; 1 K-byte/sector
40-track/si
de
(For RF512C only)
Operating
clock rate: 1MHz (RF501C, RF502C)
2MHz (RF512C)
Interface: 6-pin Din ser i al port
with daisy-chain
dua l port.
Magnetic head: One 48 TPI head (RF501C)
Two 48 TPI heads (RF502C, RF512C)
Internal memory: 16K-byte ROM/2K-byte RAM (RF501C, RF502C)
32K-byte ROM/2K-byte RAM (RF512C)
Detection: Write protect detection
Outermost track detection
Hardsector index detection
Programming
language: 6500 assembly language
Indication: Red LED for power on
Green
LED for active
