LIGHT ARRAY FRAME ADAPTER U-BRACKET
The IV6-LAU must be used with the IV6-LAF-PBB Array Frame. It is designed
to support a variety of ancillary array mounting configurations and as a tool to
integrate IV6 arrays with I SERIES BalancePoint™ Flyware and other 3rd party
mounting systems.
Before assembly: The IV6-LAU U-Bracket must be used with the IV6-LAF-PBB
to integrate with an IV6 array. Determine tilt angle and approximate center of
balance of the array for placement on the light array frame.
1. Attach the U-Bracket to the IV6-LAF as shown (LAU-1). Insert bolts in the "pivot"
position first (see below) and then secure desired angle with the other bolt. There is a
slightly dierent connection for downfill applications - see LAU Application #5.
Note: In close surface mount applications, it is easier to mount the U-Bracket to the surface before
adding the IV6-LAF-PBB frame and loudspeakers.
IV6-LAU
LAU: Light Array U-Bracket (1)
Hardware:
Qty
Code Description
4 HHB-F
10.9 Flanged Hex Head
Bolts
4 HN-F Flanged Nuts
Kit Weight: 13.5 lbs (6.1 kg)
Working Load Limit: 500 lbs (226.8 kg)
(10:1 safety factor)
1

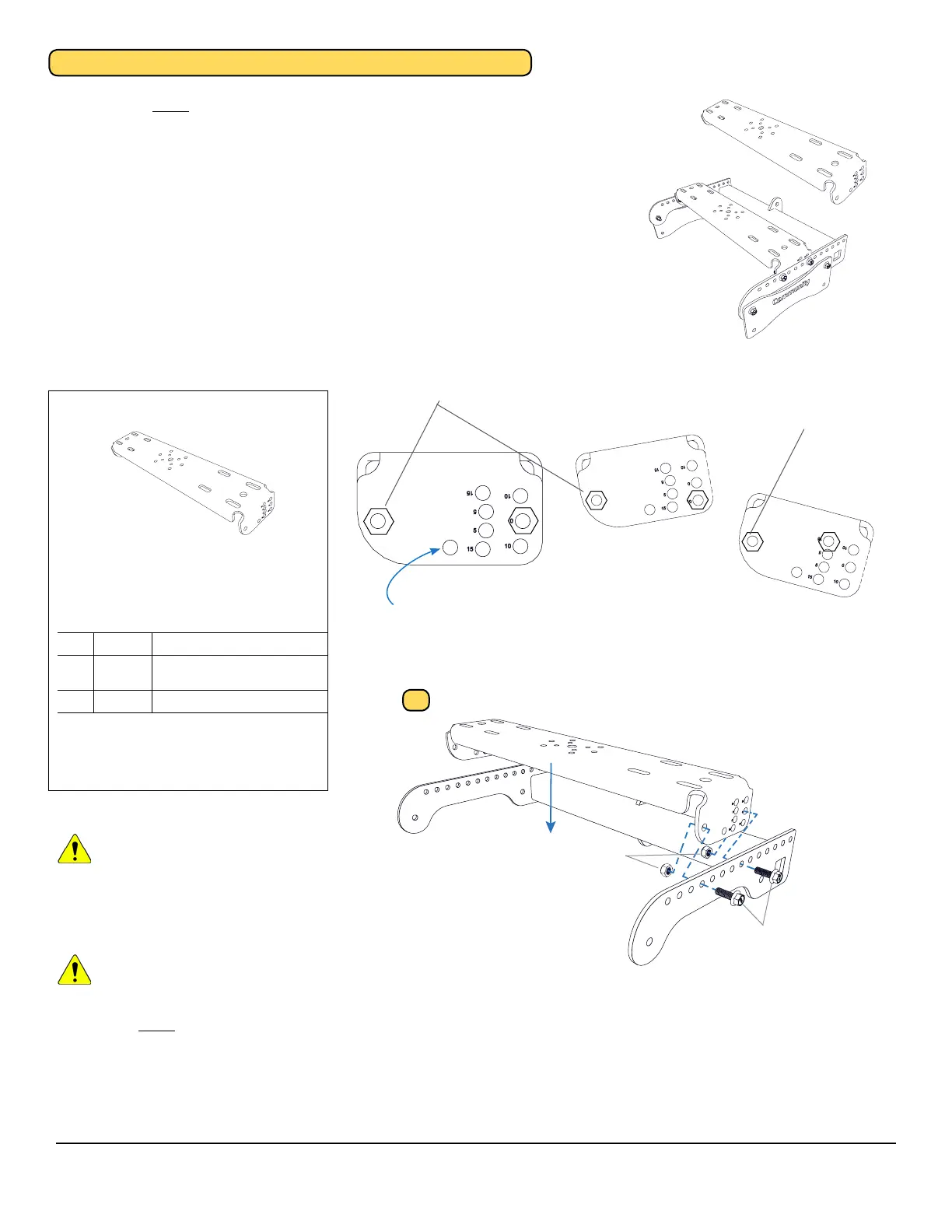

LAU-1. Attach the U-bracket to the frame at the desired angle, centered around
the specified pin point# from EASE® Focus 3
HN-F
HHB-F
Rear
Front
Parts:
LAU
Center hole - for downfire applications
only - see Application #5 for
connection detail
15° tilt
10° tilt
Side view, 0° tilt
Pivot position
Pivot position
IMPORTANT: When used with
the IV6-LAF-PBB to hold a
downfill loudspeaker at the bottom of
an array, the weight of the added
elements must be considered when
calculating the SWL of the array.
WARNING: For safety reasons,
for the applications listed on
the next page, the center of mass of
the array must be located directly
beneath the IV6-LAF-PBB Frame. If
the center of mass is located behind
the array frame, it may result in an
unsafe rigging condition.
