I SERIES IV6-LAU Instructions Page 5

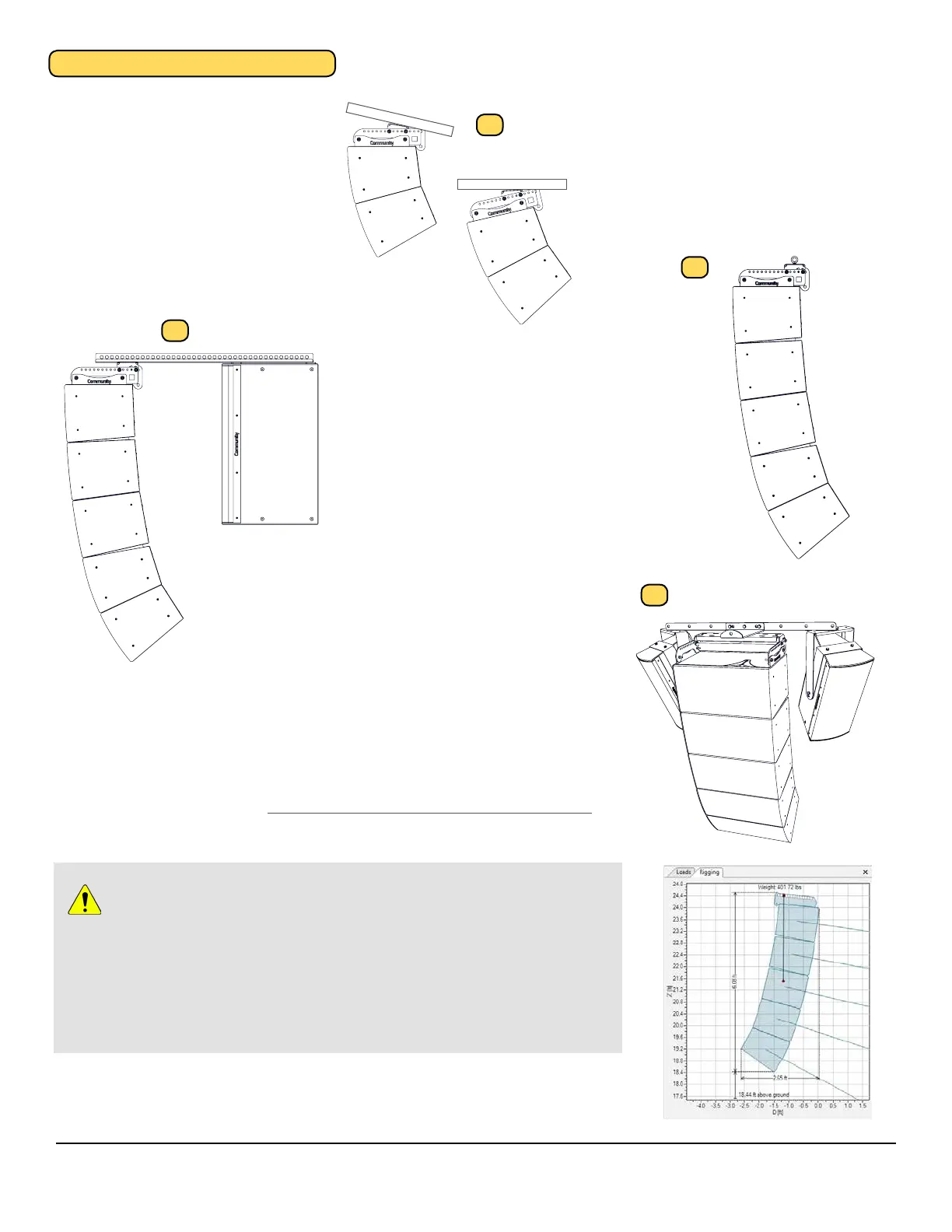

IV6-LAU APPLICATIONS
1. Under-balcony mount for a two to three
element IV6 array. The LAU provides a
very low profile mechanism for rigidly
mounting a small array to a solid overhead
surface. The built-in 0°, 5°, 10°, and 15°
aiming options allow adjustments to the
overall array aiming angle.
2. Suspend an array of up to six IV6-1122
or up to three IV6-118S elements (not to
exceed WLL of 500 lbs. @ 10:1 safety ratio)
from one or more load-rated eyebolt(s)
or other similar sized load-rated lifting
hardware. For this application, the
IV6-LAU must be bolted to the IV6-LAF in
the 0° position.
3. Suspend I SERIES 600 or I SERIES
800 subwoofers behind an array of up
to six (6) IV6-1122 elements using the
BalancePoint™ Flyware SBR54 (54" long
Sub Behind Fly Rails). For this application,
the IV6-LAU must be bolted to the IV6-LAF
in the 0° position.
4. Suspend an array of up to six IV6-
1122 elements using the BalancePoint™
Flyware IAF55 (55" wide Isometric Array
Frame). The IAF55 allows flying a central
IV6-1122 array with additional I SERIES fill
speakers to the left and right. The IAF55
may also be combined with the SBR54.
For this application, the IV6-LAU must be
bolted to the IV6-LAF in the 0° position.
WARNING: For safety reasons, the center of mass of the array MUST be
located directly beneath the IV6-LAF-PBB Array Frame. If the center of mass
is located behind the array frame, it may result in an unsafe rigging condition.
To verify center of mass is directly beneath the Array Frame, build the intended array
(using the IV6-LAF-PBB Array Frame) in EASE® Focus 3 (EF3) and verify the center of
mass position meets this condition as displayed the "Rigging" pane. (See image at
right from EF3). IMPORTANT: The LAU can only be used with LAF pin positions 3-12.
Always have rigging safety conditions verified by a certified engineer before
installation. Failure to do so can lead to severe injury or even death!
1
2
3
4
I SERIES BalancePoint™ Flyware instructions are available by following this link
to the Community website: www.communitypro.com/products/i-series and
finding BalancePoint™ Flyware.
