INS_CLFE(X)EO(C,U)_REV– 10/27/11 PAGE 11
INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES
TECH SUPPORT: 1.888.678.9427

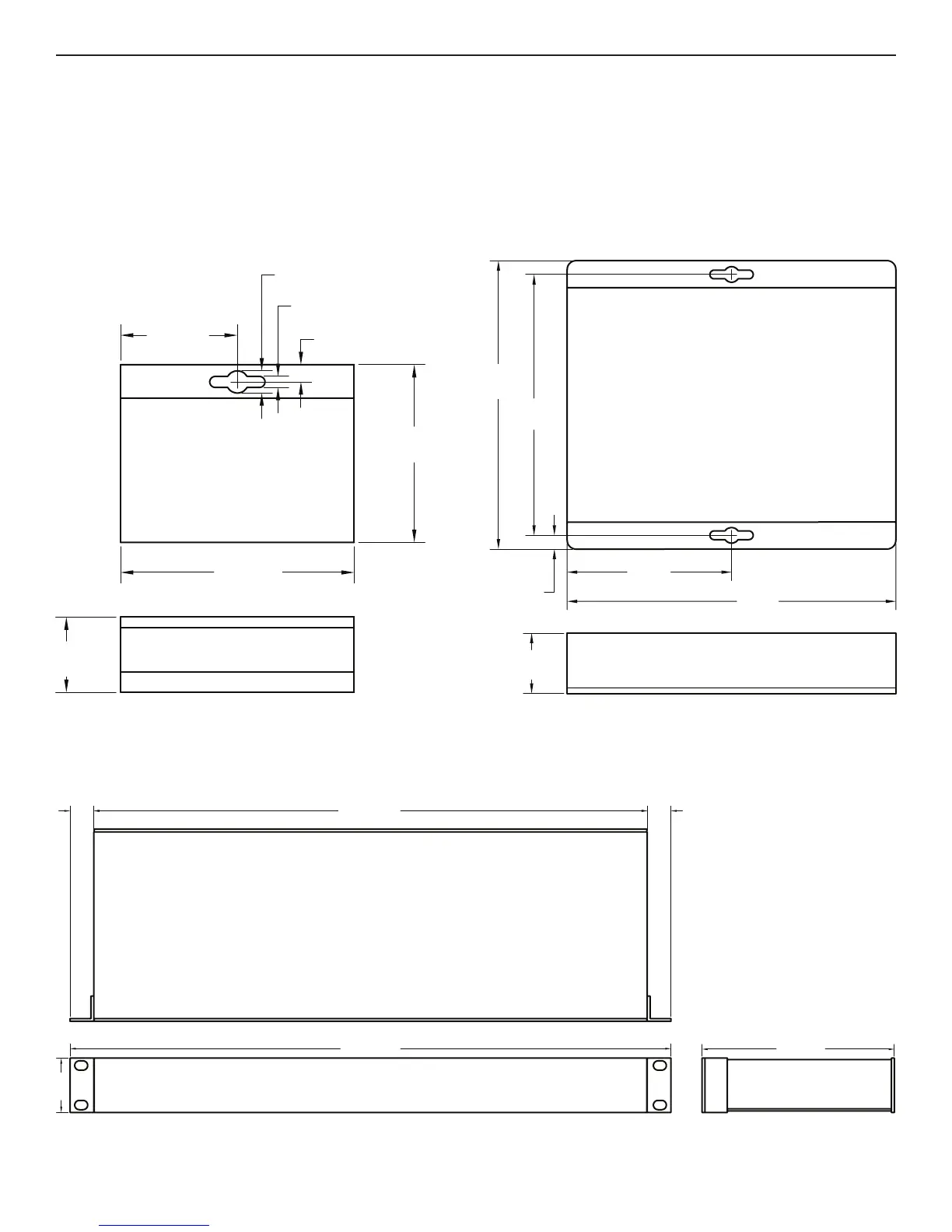

FIGURE A
Dimensions are for a small size module
FIGURE B
Dimensions are for a ComFit module
FIGURE C
Dimensions are for a 19″ Rack Unit
8.38cm
[3.3in]
2.7cm
[1.06in]
4.19cm
[1.65in]
0.8cm
[0.31in]
0.4cm
[0.16in]
0.62cm
[0.24in]
6.37cm
[2.50in]
13.2cm
[5.2in]
11.9cm
[4.7in]
15cm
[5.9in]
7.5cm
[2.9in]
0.63cm
[0.25in]
2.75cm
[1.1in]
44.45cm
[17.50in]
48.26cm
[19.0in]
15.44cm
[6.08in]
1.9cm
[0.75in]
4.37cm
[1.72in]
1.9cm
[0.75in]
PRODUCT DIMENSIONS
The CLFE1EO(C,U) is supplied as a standalone/surface mount (small size) module.
The CLFE4EO(C,U) is supplied as a standalone/surface/rack (ComFit) module.
The CLFE8EO(C,U) and CLFE16EO(C,U) are supplied as 19″ wide rack units for standalone or rack installation.
