INS_CLFE(X)EO(C,U)_REV– 10/27/11 PAGE 2
INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES
TECH SUPPORT: 1.888.678.9427

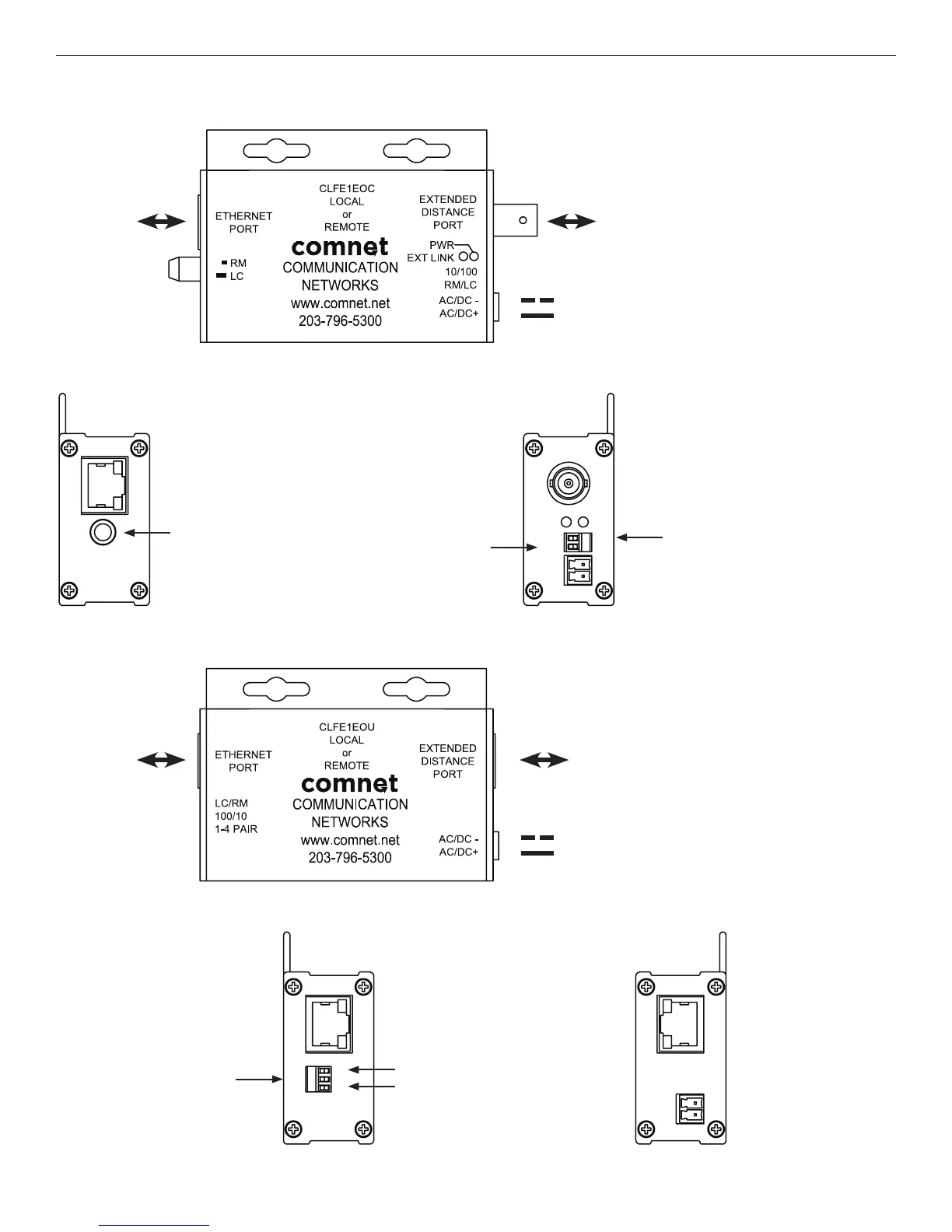

FIGURE 1 – CLFE1EOC SINGLE CHANNEL COAX UNIT
FIGURE 3 – CLFE1EOU SINGLE CHANNEL UTP UNIT
FIGURE 2 – CLFE1EOC SINGLE CHANNEL COAX UNIT
FIGURE 4 – CLFE1EOU SINGLE CHANNEL UTP UNIT
EXT DISTANCE
EXT DISTANCE
ETHERNET
ETHERNET
Power: Operates on PoE power
OR 9 to 36 VDC
OR 24 VAC
Power Consumption: 1.5 W
Power: Operates on PoE power
OR 9 to 36 VDC
OR 24 VAC
Power Consumption: 1.5 W
Black w/ White
Stripe (AC or DC–)
Black (AC or DC+)
Black w/ White
Stripe (AC or DC–)
Black (AC or DC+)
Local/Remote push button
See Installation Instructions,
Step 3
Local/Remote DIP switch
See Installation Instructions, Step 3
10/100 data rate DIP switch
See Installation Instructions,
Step 1
Wire pair DIP switch
See Installation Instructions, Step 2
Local/Remote
DIP switch
See Installation
Instructions, Step 3
10/100 data rate DIP switch
See Installation Instructions, Step 1
