INS_FDX60_REV–

04/23/10

PAGE 6

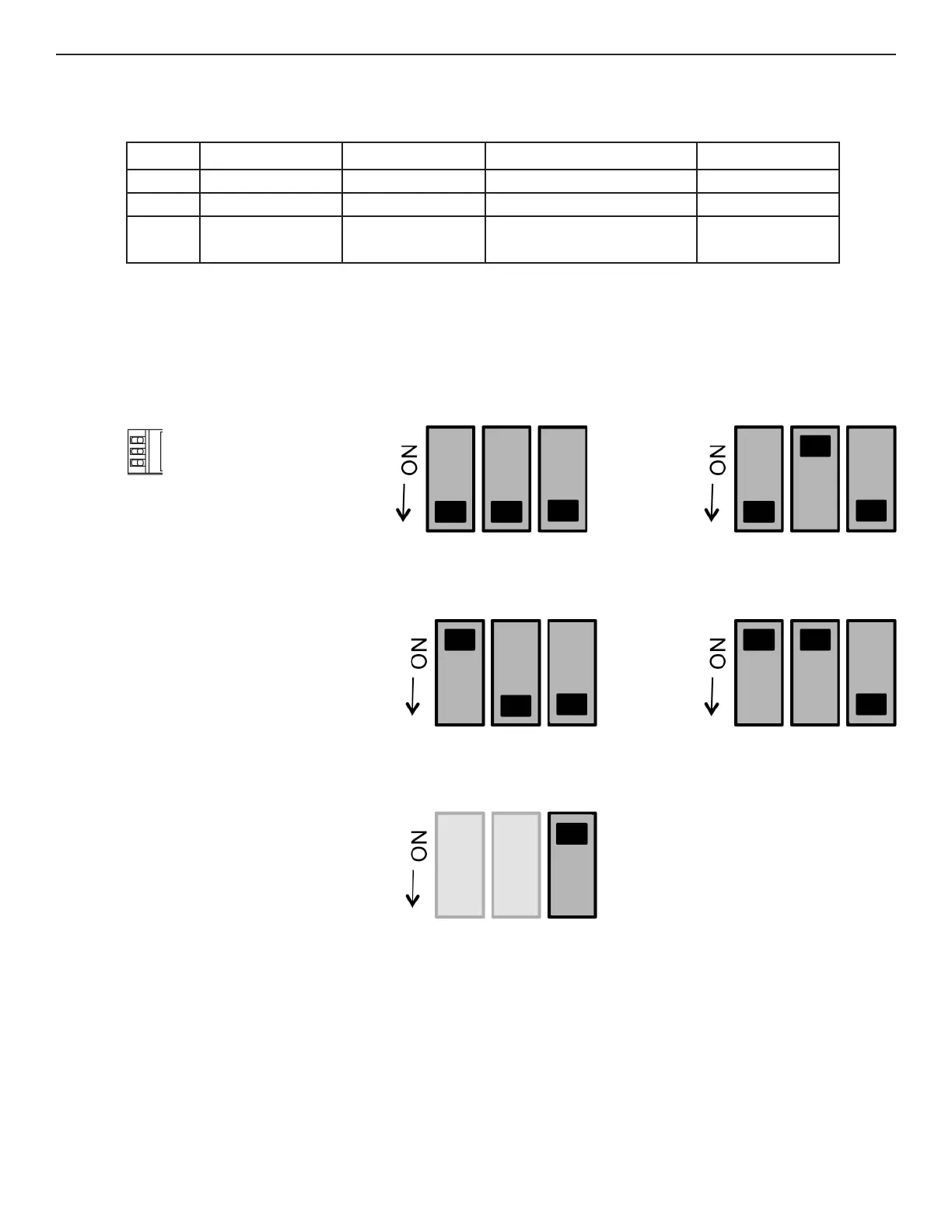

FIGURE 9 – LED INDICATORS

FIGURE 10 – SWITCH POSITIONS

TECH SUPPORT: 1.888.678.9427

INSTALLATION AND OPERATION MANUAL FDX60(M)(S)(-M)

LINK DATA (TX/RX) LOOP BACK (Test Mode) POWER

GREEN Unit In Sync Activity Fiber Link Connections are Correct Unit Powered Up

RED Unit Not In Sync No Acvitiy Fiber Link Issue Exists (Head End) –

OFF No Optical Link – Fiber Link Issue Exists (Far End);

OR Test Mode is Off

Unit Powered Down

Switch

Located on front panel in full

size modules and on back on

small size modules.

The first two switches set the

data type, the third toggles

Loop Back Test Mode.

RS232 Data

1 2 3*

RS422, Bi-Phase or

Manchester Data

1 2 3*

RS485

4-Wire Data

1 2 3*

RS485 2-Wire,

Sensornet Data

1 2 3*

Loop Back

Test

1 2 3*

* Loop Back Test Mode

(see Page 8)
