\\Cilaklfs1\shrdata\Masters\Installation Sheets\Master & Premier\MR160P Installation
Sheet.doc
Page 4 of 18

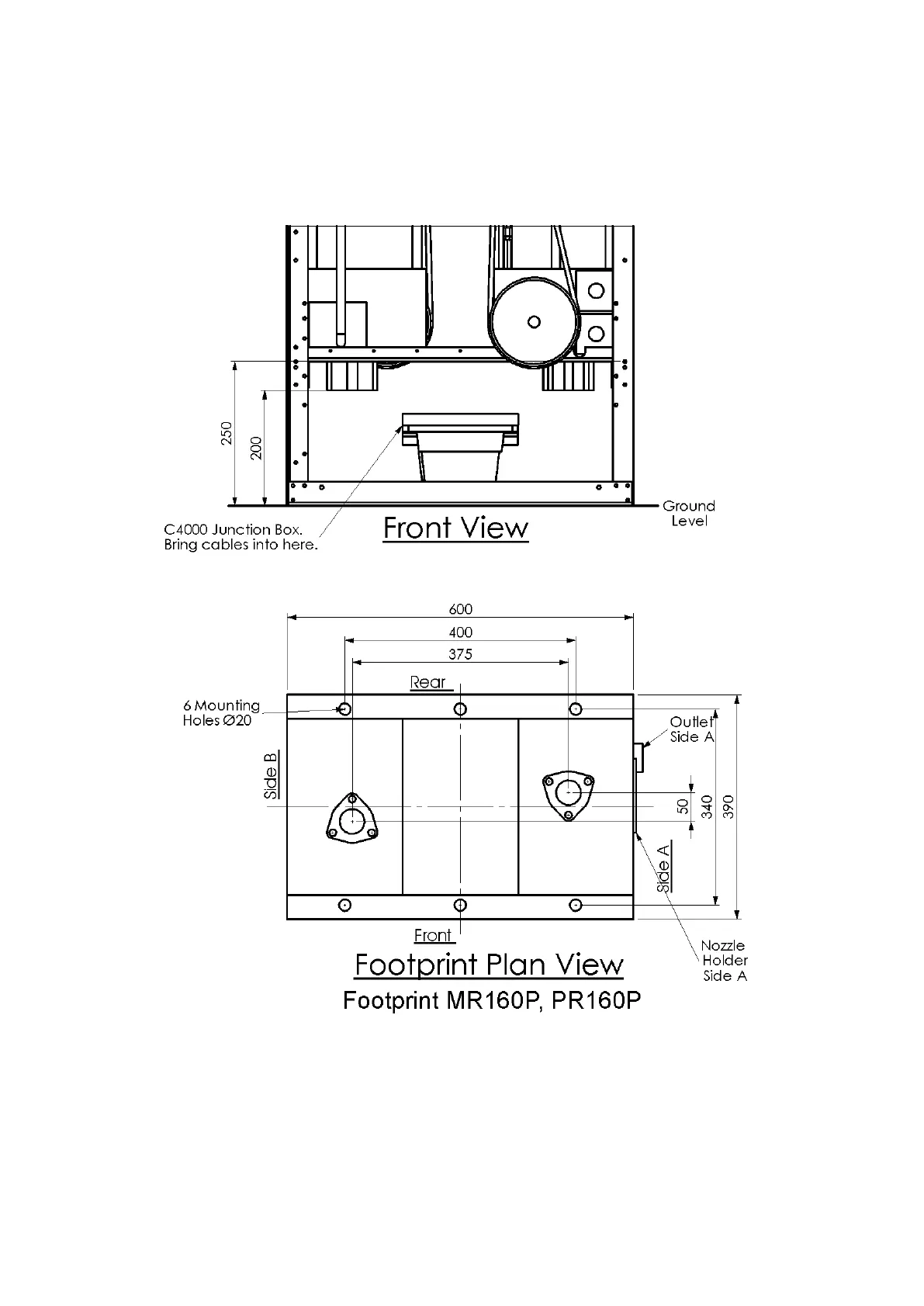

2. Footprint
Outlet size: 1 ¼” BSP female socket.
Outlet is approximately 680mm above the base.
