2-1
Section 2 – Operating Controls
Component Locations

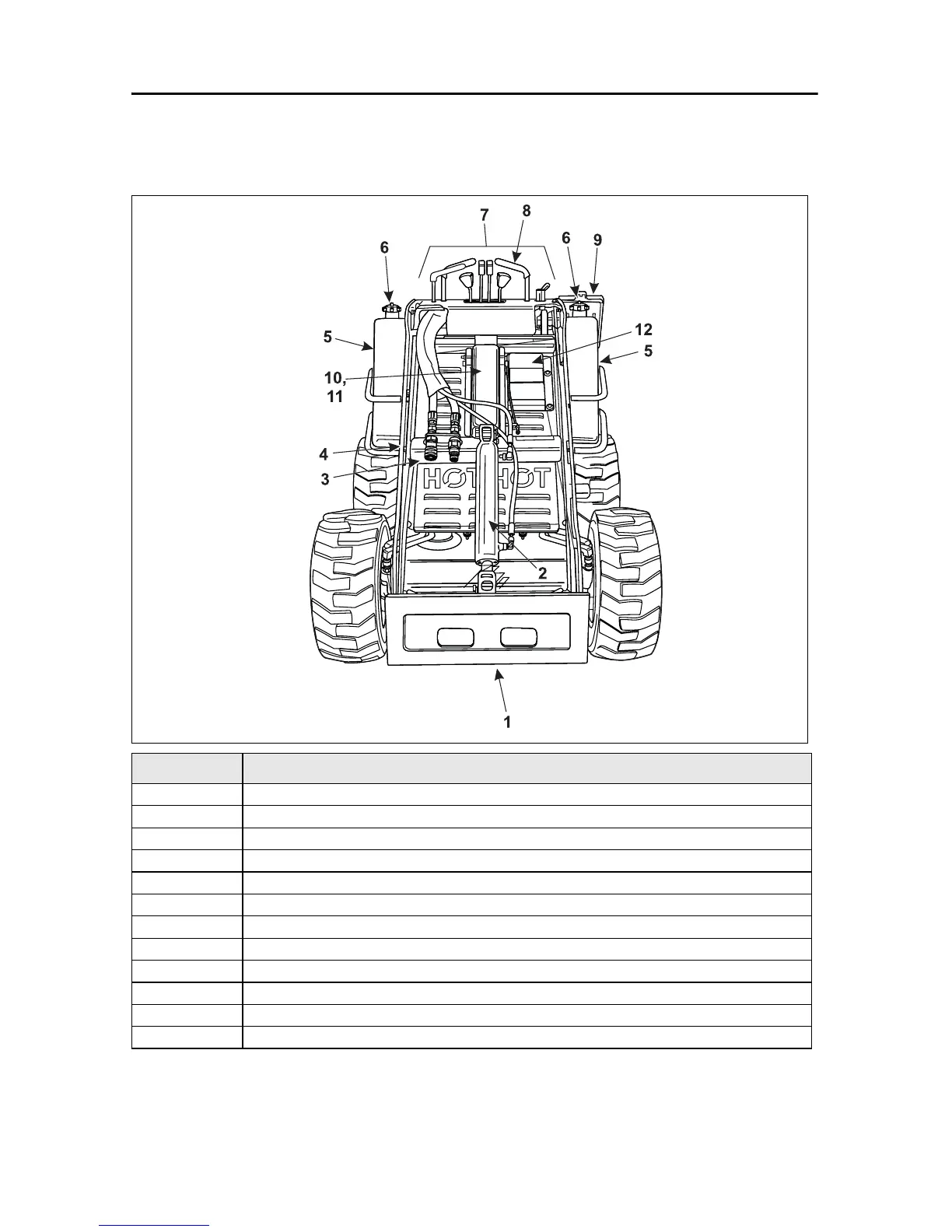

Front View
Item No. Description
1 Attachment mounting plate
2 Tilt cylinder
3 Auxiliary hydraulic quick connects
4 Boom
5Fuel tank
6 Fuel filler cap
7 Operating controls
8 Hand grab rail
9 Manual holder
10 Lift cylinder lock
11 Lift cylinder (beneath cylinder lock)
12 Hydraulic oil cooler
