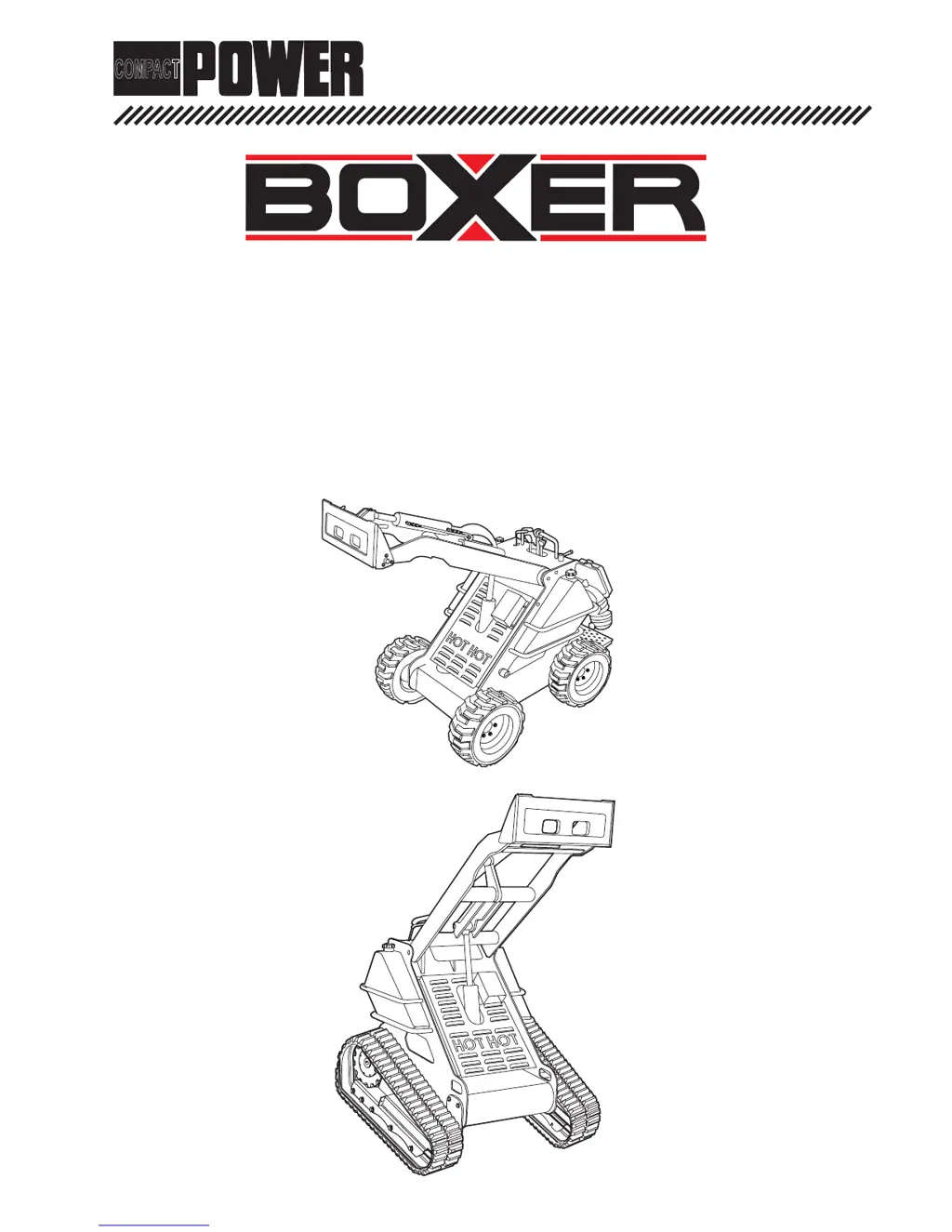

Boxer 427 and Boxer 427W
Operators Manual
COMPACT
TM
COMPACT
Part No. 999-860
(SN 992 and Higher)
BIG POWER IN ALL PLACES

Questions and Answers

  • A
    April DanielsAug 25, 2025
    Why does my Compact Power BOXER 427W Compact Loader engine overheat?
    • G
      griffithmichelleAug 25, 2025
      Your Compact Power Compact Loader engine may overheat due to: * Excessive engine load. Reduce ground speed or the speed of the attachment. * Low engine oil level in the crankcase. Add the appropriate engine oil to the crankcase, referring to the engine manual for oil specifications. * Cooling fins and air passages under the engine blower housing are plugged. Remove any obstructions from the cooling fins and air passages.
  • P
    pjohnsonAug 26, 2025
    What causes a Compact Power BOXER 427W Compact Loader engine to lose power?
    • B
      Bradley McdowellAug 27, 2025
      A Compact Power Compact Loader engine can lose power for several reasons: * Low crankcase oil level. Add engine oil. * High crankcase oil level. Drain engine oil and replace with the proper quantity. * Dirty air cleaner element. Clean the air filter separator tube. * Dirt or water in the fuel system. Drain the fuel system and replace with fresh, clean fuel. * Excessive engine load. Reduce engine load. * Engine overheated. Clean cooling fins and remove any debris from around the engine. * Faulty spark plugs. Replace spark plugs. * Exhaust restriction. Clean the spark arrestor. * Low battery. Replace battery.
  • M
    mitchellrogerAug 27, 2025
    How to fix Compact Power BOXER 427W engine that cranks but will not start?
    • C
      Christina AguilarAug 28, 2025
      If your Compact Power Compact Loader engine cranks but won't start, consider these potential causes: * Empty fuel tanks: Fill fuel tanks. * Fuel shut-off valves closed: Open both fuel shut off valves. * Poor fuel, dirt or water in the fuel system: Drain fuel system and replace with fresh, clean fuel. * Clogged fuel line: Clean or replace fuel lines. * Spark plug leads disconnected: Check to make sure that both spark plug leads are securely attached to the spark plug and that they are not damaged. * Faulty spark plugs: Replace spark plugs. * Battery connected backwards: Remove battery connections and reinstall.
  • A
    amitchellAug 29, 2025
    What to do if Compact Power Compact Loader engine starts but does not keep running?
    • M
      Melinda JohnsonAug 30, 2025
      If your Compact Power Compact Loader engine starts but doesn't continue running, check the following: * Restricted fuel tank cap vent: Clean the fuel tank cap. * Poor fuel, dirt, or water in the fuel system: Drain the fuel system and replace with fresh, clean fuel. * Leaking/cracked vacuum hose to fuel pump: Replace hose.
  • J
    Jennifer ParkAug 31, 2025
    How to troubleshoot Compact Power BOXER 427W engine that starts hard?
    • S
      Sabrina TerrellSep 1, 2025
      If your Compact Power Compact Loader engine starts hard, consider the following: * Auxiliary control lever is in either Forward or Reverse position. Move the control lever to the Neutral position. * Dirt or water in the fuel system. Drain fuel system and replace with fresh, clean fuel. * Clogged fuel line. Clean or replace fuel lines. * Loose or faulty wires or connections. Tighten connections. * Faulty spark plugs. Replace spark plugs. * Engine overheated-cooling/ air circulation restricted. Clean cooling fins and remove any debris from around engine. * Quality of fuel. Drain fuel system and replace with fresh, clean fuel.
  • S
    Stacie GraySep 2, 2025
    What causes a Compact Power BOXER 427W Compact Loader engine to run but miss?
    • R
      Roy OwenSep 2, 2025
      If your Compact Power Compact Loader engine runs but misses, it could be due to: * Dirt or water in the fuel system. Drain fuel system and replace with fresh, clean fuel. * Spark plug lead disconnected. Check to make sure that both spark plug leads are securely attached to the spark plug and that they are not damaged. * Poor quality of fuel. Drain fuel system and replace with fresh, clean fuel. * Faulty spark plug(s). Replace spark plugs. * Loose wires or connections that intermittently ground the ignition kill circuit. Tighten connections. * Engine overheated. Clean cooling fins and remove any debris from around engine.
  • A
    Aimee TerrySep 4, 2025
    What causes abnormal engine vibration in a Compact Power Compact Loader?
    • E
      Edward DeanSep 4, 2025
      Abnormal engine vibration in your Compact Power Compact Loader is often due to loose engine mounting bolts. Tighten the engine mounting bolts to resolve this issue.
  • C
    Christopher BrownSep 6, 2025
    What to do if my Compact Power BOXER 427W Compact Loader engine will not idle?
    • S
      Sara RogersSep 6, 2025
      If your Compact Power Compact Loader engine will not idle, consider the following: * Dirt or water in the fuel system. Drain fuel system and replace with fresh, clean fuel. * Stale fuel and/or gum in carburetor. Drain fuel system and replace with fresh, clean fuel. * Faulty spark plugs. Replace spark plugs. * Fuel supply inadequate. Fill fuel tanks. * Open both fuel valves. Open both fuel valves. * Open vent on fuel tank cap. Open vent on fuel tank cap.
  • D
    David RamirezSep 8, 2025
    What causes Compact Power Compact Loader engine to overheat?
    • M
      Marie WelchSep 8, 2025
      A Compact Power Compact Loader engine can overheat due to: * Air intake/grass screen, cooling fins, or cooling shrouds clogged. Clean cooling fins and remove any debris from around the engine. * Excessive engine load. Reduce the load on the engine. * Low crankcase oil level. Add engine oil. * High crankcase oil level. Drain engine oil and replace with the proper quantity.
  • C
    collinsgloriaSep 10, 2025
    Why is my Compact Power BOXER 427W engine knocking?
    • T
      thomasmichaelSep 10, 2025
      Your Compact Power Compact Loader engine may be knocking due to: * Excessive engine load. Reduce engine load. * Low crankcase oil level. Add engine oil. * Old or improper fuel. Drain fuel system and replace with fresh, clean fuel. * Quality of fuel. Drain fuel system and replace with fresh, clean fuel. * Incorrect grade of oil. Drain engine oil and replace with the proper grade of oil.

Summary

Safety Introduction

Operating and Safety Instructions

General guidance on understanding operating and safety instructions for safe machine use.

Safety Alert Symbol and Signal Words

Understanding the meaning of safety alert symbols and signal words like DANGER, WARNING, CAUTION.

Safety Precautions

General and Operating Safety

Essential safety rules for machine operation and hazard avoidance.

System-Specific Hazards

Hazards related to electrical, hydraulic, battery, and fueling systems.

Maintenance Safety

Safety precautions for performing maintenance or service on the machine.

Machine Controls and Operation

Component Locations

Identification of key machine components across different views.

Operator Controls and Descriptions

Identification, description, and function of all operating controls.

Attachment Handling

Procedures for installing, removing, and operating various machine attachments.

Pre-Start Checks and Maintenance

Pre-Start Inspection

Essential visual checks and inspections before operating the machine.

Daily, Weekly, and Monthly Maintenance

Routine service tasks performed at daily, weekly, and monthly intervals.

Annual Maintenance and Fluid Service

Annual procedures including fluid replacement, filter changes, and draining fuel.

New Machine Brake-in Procedures

Specific maintenance required for new machines after the first 20 operating hours.

Troubleshooting

Engine Problems

Diagnosing and resolving common engine starting, running, and power issues.

Machine Performance Issues

Troubleshooting for operational problems like overheating, travel, or track issues.

Troubleshooting Specific Components

Detailed troubleshooting for engine-related issues and component malfunctions.

Specifications

Wheel Unit Specifications

Key technical data and specifications for the wheel unit configuration.

Track Unit Specifications

Key technical data and specifications for the track unit configuration.

Compact Power BOXER 427W Specifications

General IconGeneral
Operating Weight1, 720 lbs
Engine Power27 hp
Bucket Capacity0.15 cubic yards
Max Travel Speed4.5 mph
Hydraulic System Flow12 gallons per minute
