Routine Service and Maintenance
i. Reinstall the end cap (Item 4, Figure 4–19) so the dust ejector valve is down and secure
the end cap with the two retaining clips.
*In extremely dusty or dirty operating conditions, this service cycle may need to be
shortened.
4. Replace fuel filter (Item 1, Figure 4–20). Shut off fuel at both of the fuel shut off valves
(Item 1, Figure 4–21) by rotating the valve handle horizontally across the fuel line, shutting
off the fuel. Remove the spring clamps (Item 2, Figure 4–20) from above and below the fuel
filter and remove the fuel lines. Replace the fuel filter with a new filter.

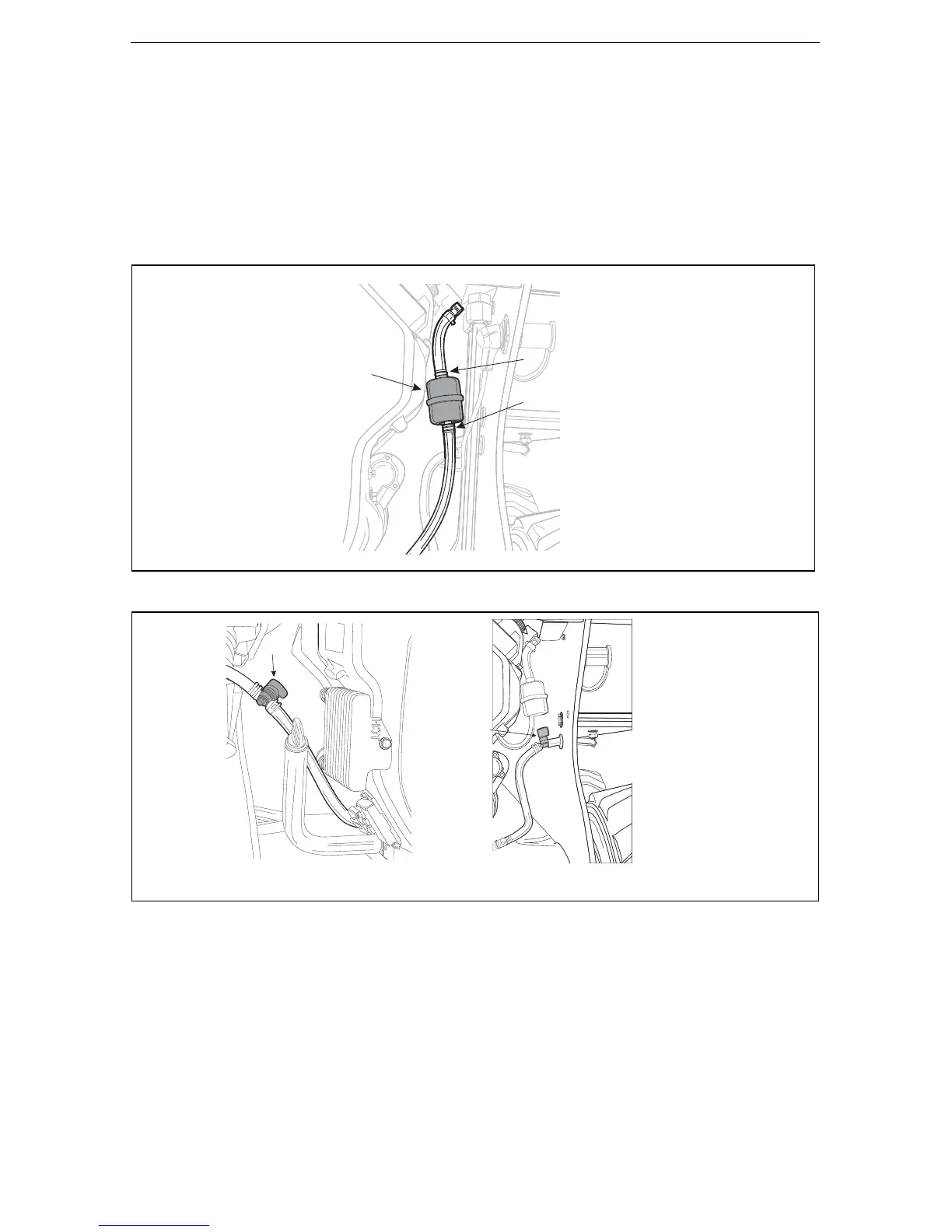

Figure 4–20 Fuel Filter
Figure 4–21 Fuel Shut Off Valves
1
2
2
2047
1
Left Side of Engine
1
RightSide of Engine
2041 2033
