CompAir C30 User Manual

80
105 580 74
rear fog lamp
right taillamp
right indicator lamp
right stoplamp
left stoplamp
left indicator lamp
left taillamp
ground
white
black
yellow
red
green
brown
blue
Terminal Diagram DIN ISO 1724
Connector Circuit connector
blue (54 G)
brown (58 R)
green (R)
red (54)
yellow (L)
black (58 L)
white (31)
4. Construction and functional description

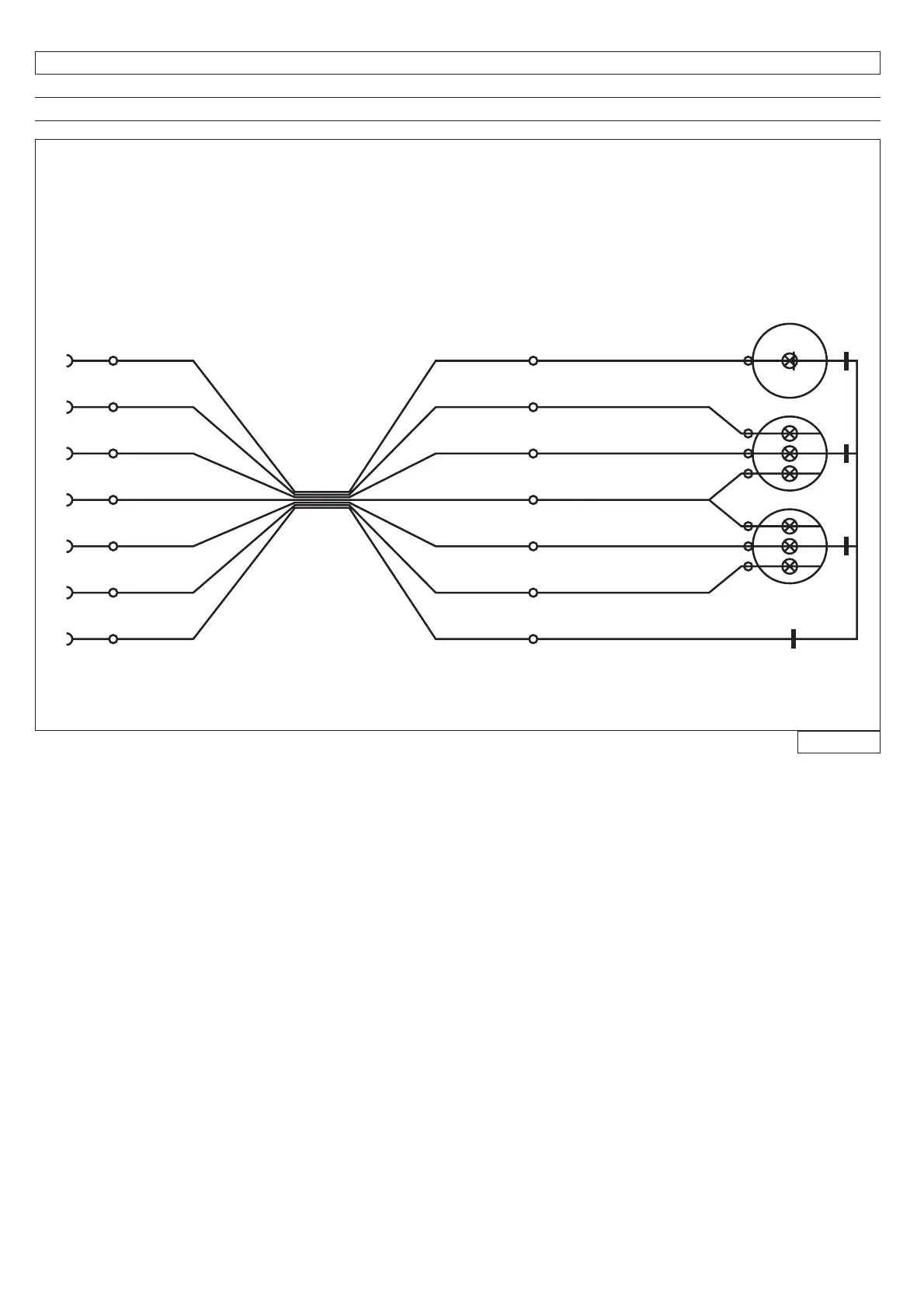

4.5 Terminal Diagram DIN ISO 1724
Fig. 6
The terminal diagram is designed for a voltage of 12 Volts!
