CompAir L15 - Layout Plan L15-L22

11. Annex
52

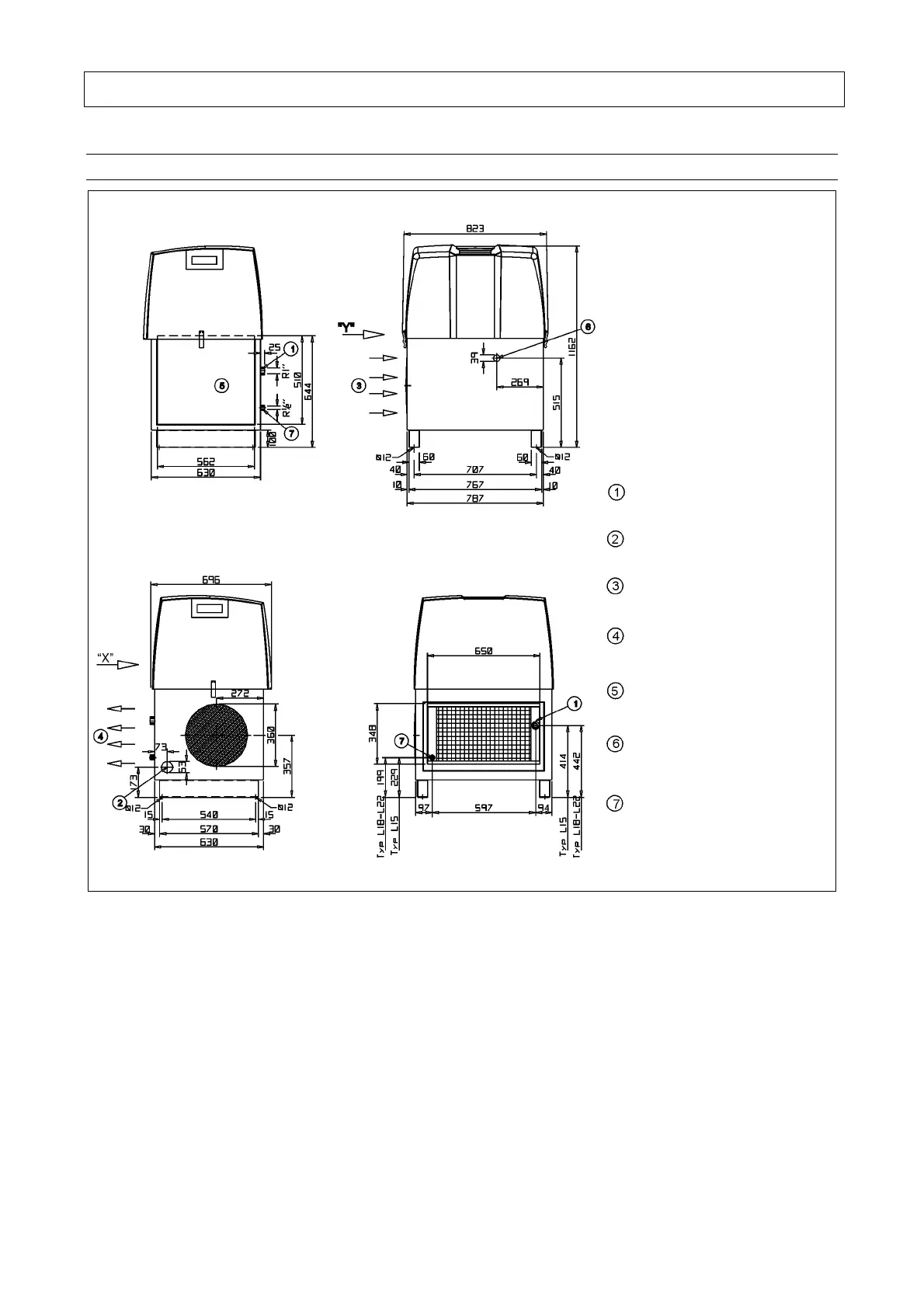

11.4 Layout plan L15-L22
FRONT VIEW
Compressed air connection
R1“ (1“ NPT/USA)
Electrical connection
Air inlet
Cooling-air outlet
Access panel
Service aperture (V-belt relief)
Oil drain R1/2“
Fig. 26
View “X”
REMOVABLE
HOOD
