NOTE: Based on extensive experience and a medium-hard coffee blend, we
recommend replacing the burrs following the quantities in next table:
Steel RedSpeedLucidate
F8 OD
800 Kg 3500 Kg
F10 CONIC OD
1200 Kg 7500 Kg
F10 MASTER CONIC OD
1200 Kg 7500 Kg
12.3.Siliconcurtainreplacement(F8model)
The silicon curtain ensures consistency in the dose and reduces static electricity.

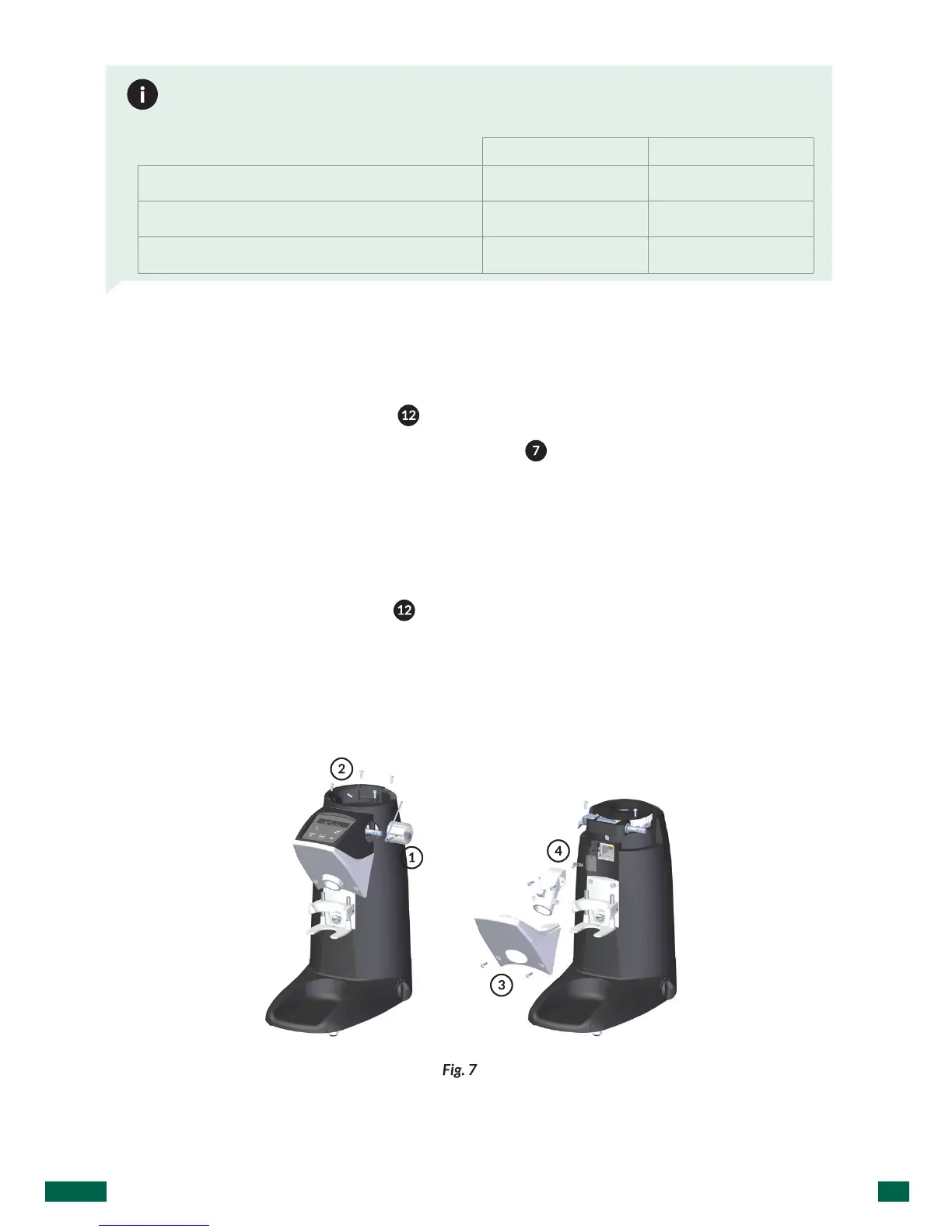

Located inside the coffee outlet ( ), it can be replaced by following the steps below:
1. Remove the grind regulator control knob ( )looseningthexingboltwithan
Allen key No. 2.5.
2. Remove the four screws securing the cover using an Allen key No. 2.5.
3. Removethefourscrewsxingthebaseofaluminumsiding,usinganAllen key
No. 2.5.
4. Remove the coffee outlet ( ), by removing the two retaining screws using an
Allen key No. 2.5 At this point, access to the silicon curtain is possible. Replace
the silicon curtain with a new silicon curtain of different thicknesses according
to the needs of each coffee. Simply remove the screw curtain using a #10 Torx
wrench.
