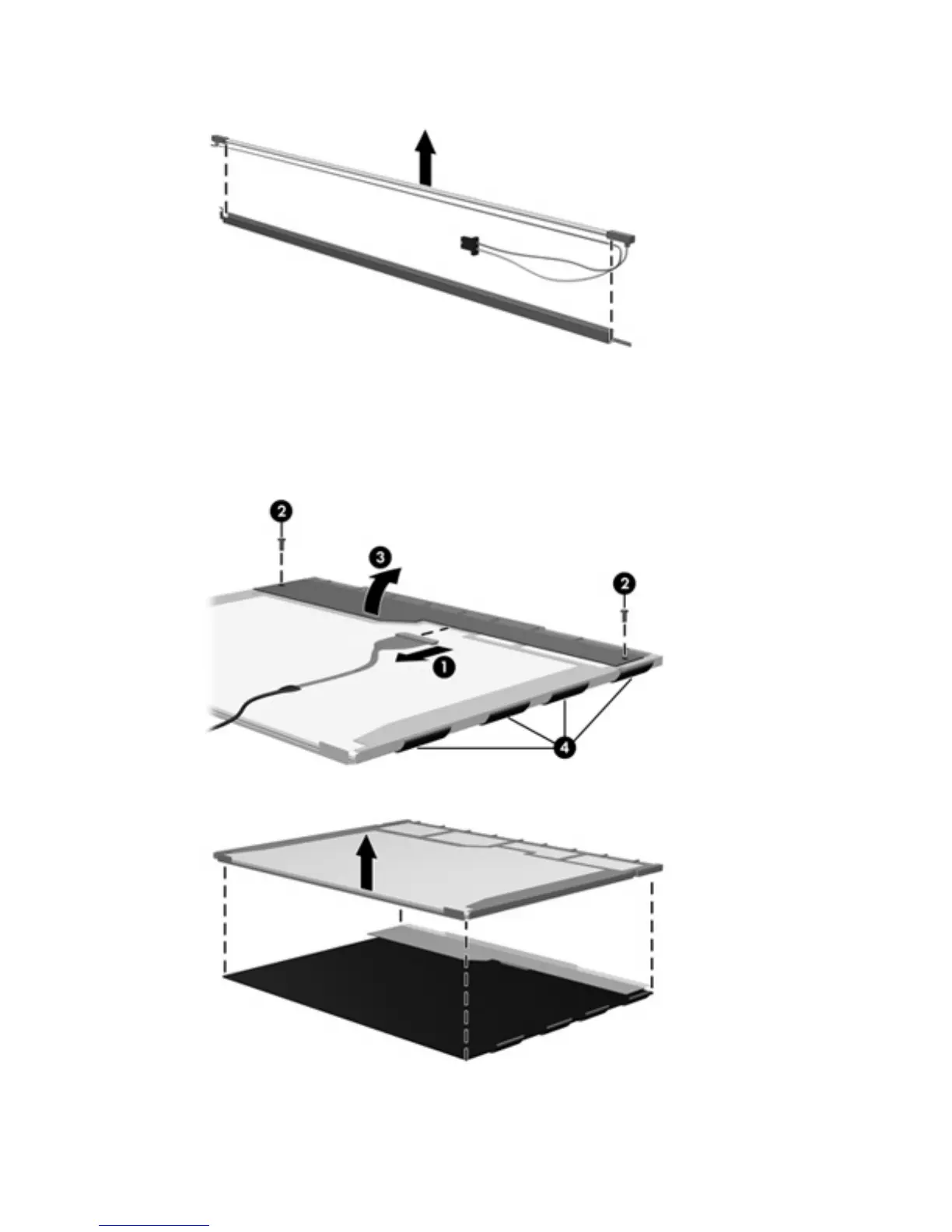

18. Remove the backlight from the backlight frame.
19. Disconnect the display panel cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
Display 163

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Compaq 6530b - Notebook PC and is the answer not in the manual?

Compaq 6530b - Notebook PC Specifications

General IconGeneral
ProcessorIntel Core 2 Duo
GraphicsIntel GMA 4500MHD
Operating SystemWindows Vista Business
Battery LifeUp to 4 hours
Display14.1-inch WXGA (1280x800)
MemoryUp to 4GB DDR2
Storage120 GB to 250 GB 5400 rpm SATA
Battery6-cell Lithium-Ion
ChipsetMobile Intel GM45 Express
Optical DriveDVD+/-RW SuperMulti with Double Layer
NetworkingIntegrated Intel Gigabit Network Connection (10/100/1000 NIC)
Wireless802.11a/b/g/n
AudioHigh Definition Audio, stereo speakers
PortsVGA, RJ-45
SlotsExpressCard/54
Processor Speed2.53 GHz
