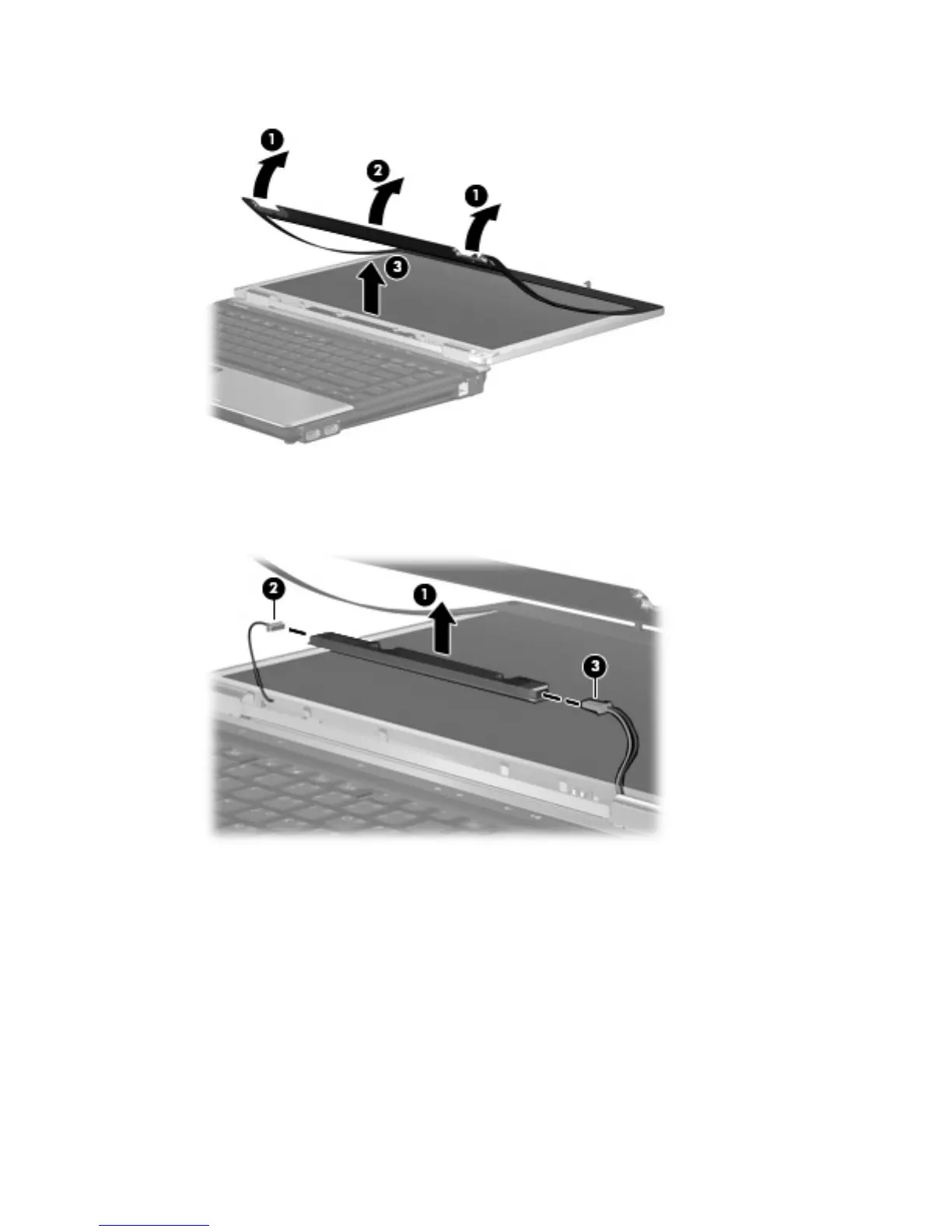

6. Release the bottom edge of the display bezel (3) from the display assembly.
7. Release the inverter (1) from the display enclosure as far as the display panel cable and backlight
cable allow.
8. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
9. Remove the display inverter.
Reverse this procedure to install the display inverter.
Component replacement procedures 51

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Compaq 6530b - Notebook PC and is the answer not in the manual?

Compaq 6530b - Notebook PC Specifications

General IconGeneral
ProcessorIntel Core 2 Duo
GraphicsIntel GMA 4500MHD
Operating SystemWindows Vista Business
Battery LifeUp to 4 hours
Display14.1-inch WXGA (1280x800)
MemoryUp to 4GB DDR2
Storage120 GB to 250 GB 5400 rpm SATA
Battery6-cell Lithium-Ion
ChipsetMobile Intel GM45 Express
Optical DriveDVD+/-RW SuperMulti with Double Layer
NetworkingIntegrated Intel Gigabit Network Connection (10/100/1000 NIC)
Wireless802.11a/b/g/n
AudioHigh Definition Audio, stereo speakers
PortsVGA, RJ-45
SlotsExpressCard/54
Processor Speed2.53 GHz
