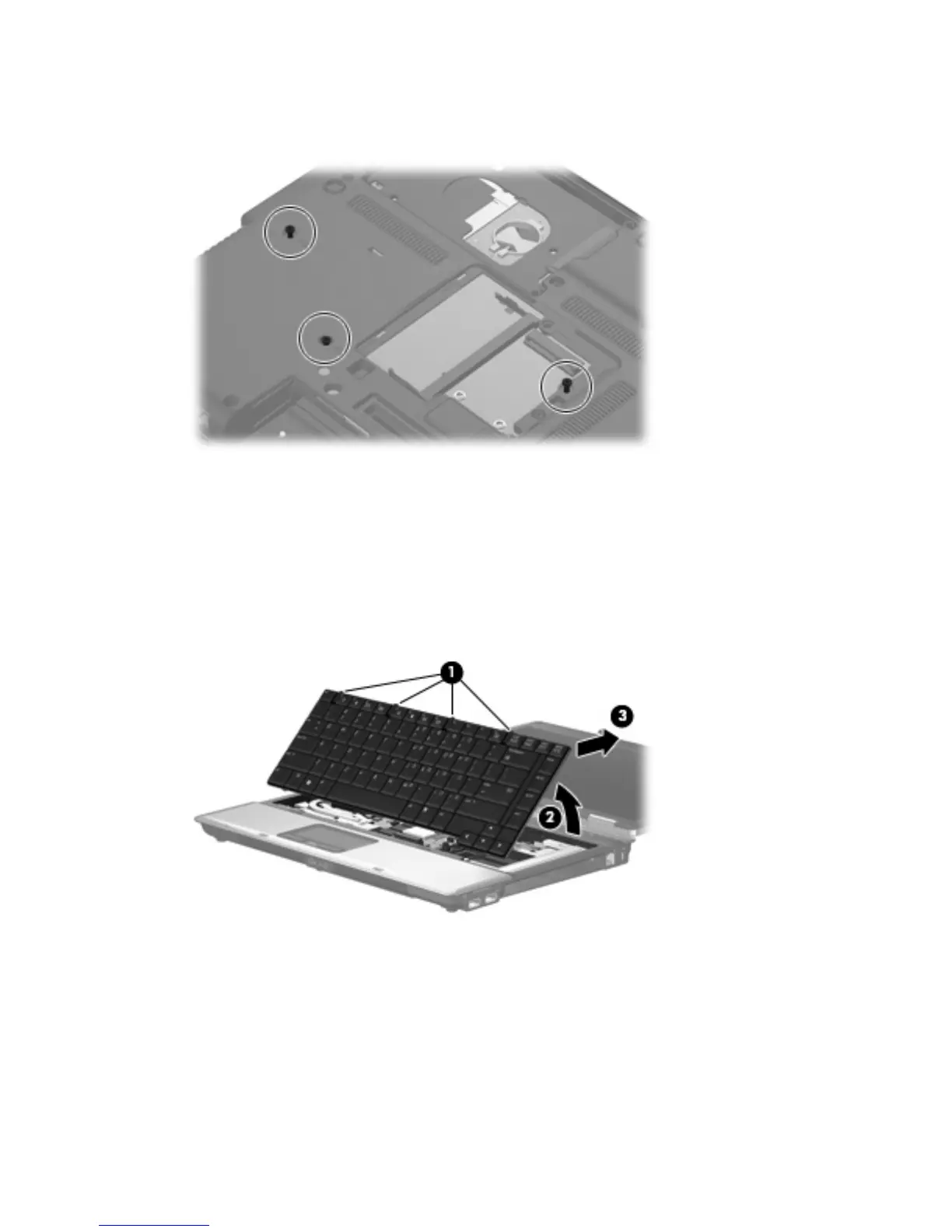

Remove the keyboard:
1. Loosen the three Phillips PM2.5×9.0 captive screws that secure the keyboard to the computer.
2. Turn the computer display-side up, with the front toward you.
3. Open the computer as far as possible.
4. Slide the four keyboard retention tabs (1) toward you. The tabs are located between the esc and
f1 keys, between the f4 and f5 keys, between the f8 and f9 keys, and between the f12 and scroll
keys.
5. Lift the rear edge of the keyboard (2) until it rests at an angle, and slide it back (3) until it rests on
the display assembly and switch cover.
64 Chapter 4 Removal and replacement procedures

Compaq 6530b - Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Graphics	Intel GMA 4500MHD
Operating System	Windows Vista Business
Battery Life	Up to 4 hours
Display	14.1-inch WXGA (1280x800)
Memory	Up to 4GB DDR2
Storage	120 GB to 250 GB 5400 rpm SATA
Battery	6-cell Lithium-Ion
Chipset	Mobile Intel GM45 Express
Optical Drive	DVD+/-RW SuperMulti with Double Layer
Networking	Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
Wireless	802.11a/b/g/n
Audio	High Definition Audio, stereo speakers
Ports	VGA, RJ-45
Slots	ExpressCard/54
Processor Speed	2.53 GHz
