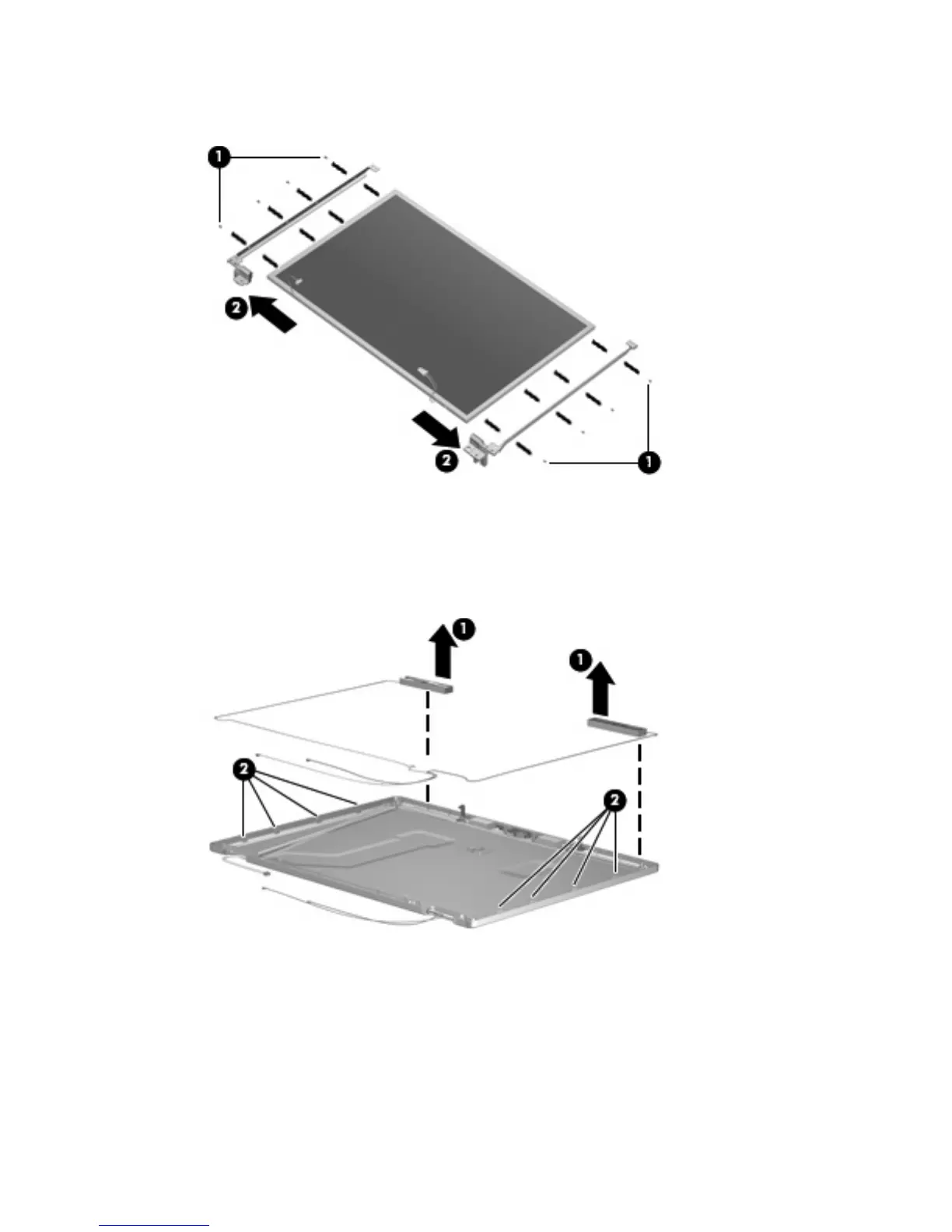

21. Remove the display hinges (2). The left and right display hinges are available using spare part
number 486772-001.
22. If it is necessary to replace the WLAN antenna transceivers and cables, detach the WLAN antenna
transceivers (1) from the display enclosure. The WLAN antenna transceivers are attached to the
display enclosure with double-sided tape.
23. Remove the WLAN antenna cables from the clips (2) built into the left and right sides of the display
enclosure.
24. Remove the WLAN antenna transceivers and cables. The WLAN antenna transceivers and cables
are available using spare part number 486777-001.
25. If it is necessary to replace the WWAN antenna transceivers and cables, detach the WWAN
antenna transceivers (1) from the display enclosure. The WWAN antenna transceivers are attached
to the display enclosure with double-sided tape.
Component replacement procedures 81
