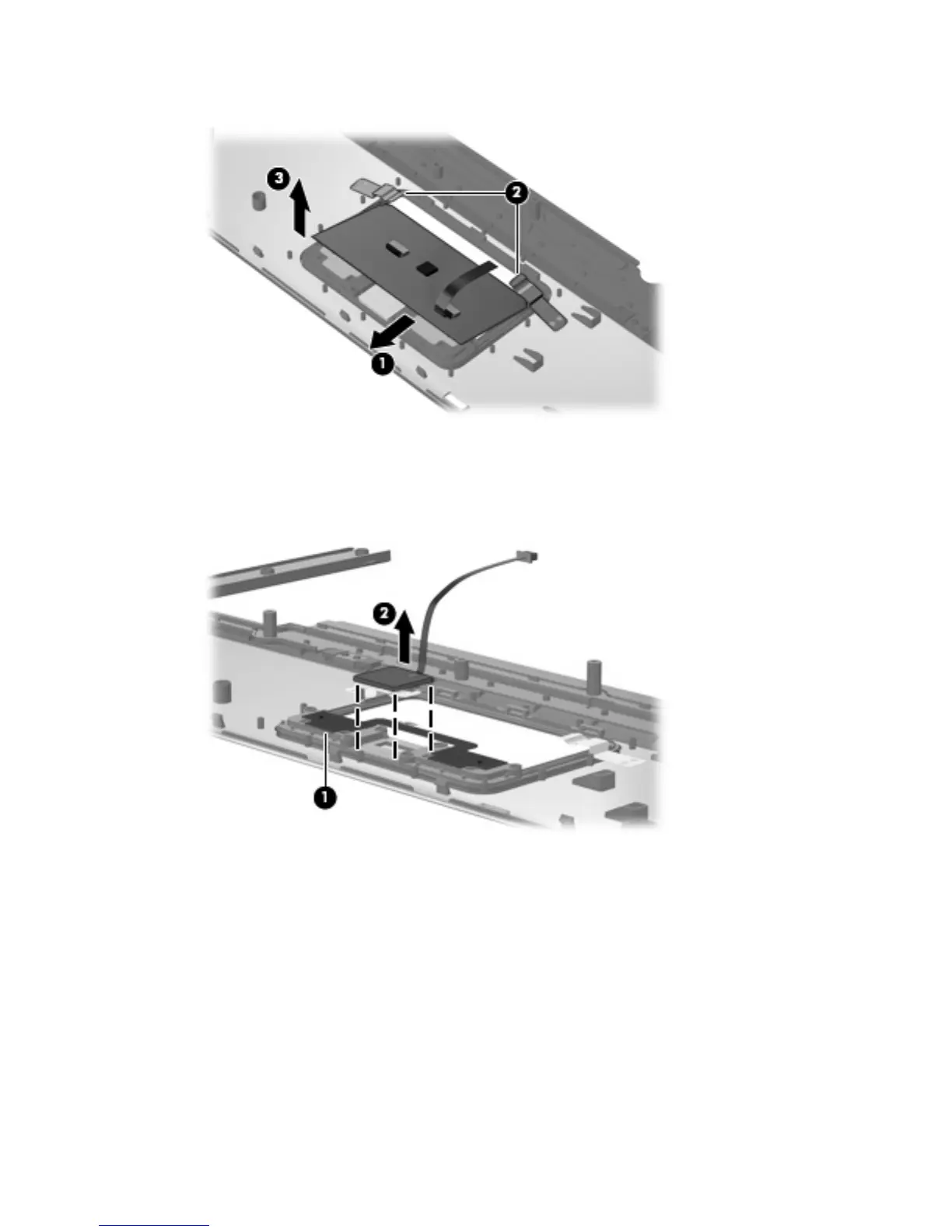

6. Remove the TouchPad board (3).
7. If it is necessary to replace the fingerprint reader board and cable, release the TouchPad button
cable (1) to provide access to the fingerprint reader board.
8. Detach the fingerprint reader board (2) from the top cover. The fingerprint reader board is attached
to the top cover with double-sided tape.
Reverse this procedure to install the TouchPad board.
Component replacement procedures 87
