Reference Guide 3–3
Installation
Speaker Installation
Selected monitors come with speakers which must be installed. If you need to install your
speakers, follow these steps:

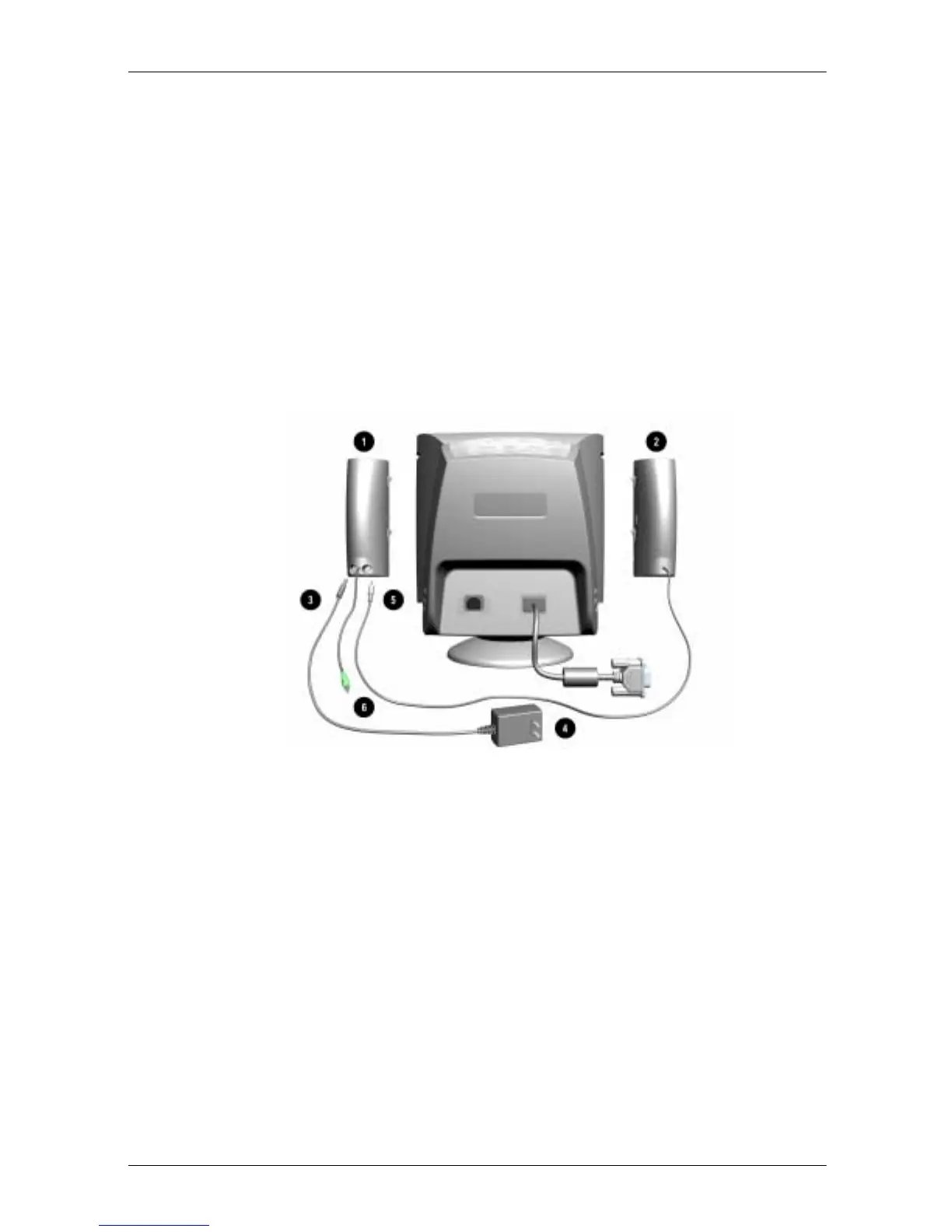

1. Place the control speaker 1 and the other speaker 2 on either side of your monitor.
2. Attach the speaker power cable 3 to the black connector on the back of the control
speaker 1, then connect the AC adapter 4 into an electrical wall outlet.
3. Insert the white connector 5 from the other speaker 2 into the white port on the back of
the control speaker 1.
4. Attach the green connector 6 from the control speaker 1 to the green port on the back of
your computer.
You can attach your speakers to your monitor or place them on an even surface next to your
monitor. To attach the speakers, see the next section, “Attaching the Speakers to the
Monitor.”
