Compaq 7500 Series

4–4 Reference Guide
Operation
Pin Balance Right-Adjustment moves the top and bottom
of the image to the right and Left-Adjustment
moves the top and bottom of the image to the
left.
Parallelo-
gram
Right-Adjustment tilts the sides of the image
to the right and Left-Adjustment tilts the sides
of the image to the left.
Tilt (Rotation) Right-Adjustment tilts the sides of the image
to the right and Left-Adjustment tilts the sides
of the image to the left.
Moire Right-Adjustment increases the Moire
correction and Left-Adjustment decreases
the Moire correction.
Degauss This control demagnetizes the screen to
reduce color impurities.
Compaq suggests you not degauss
more than once within a 30-minute
period of time.
Color Temp Right-Adjustment selects the color
temperature to the right and Left-Adjustment
selects the color temperature to the left.
Reset This control resets the monitor to factory
default values.
Exit This control exits the OSD menu.

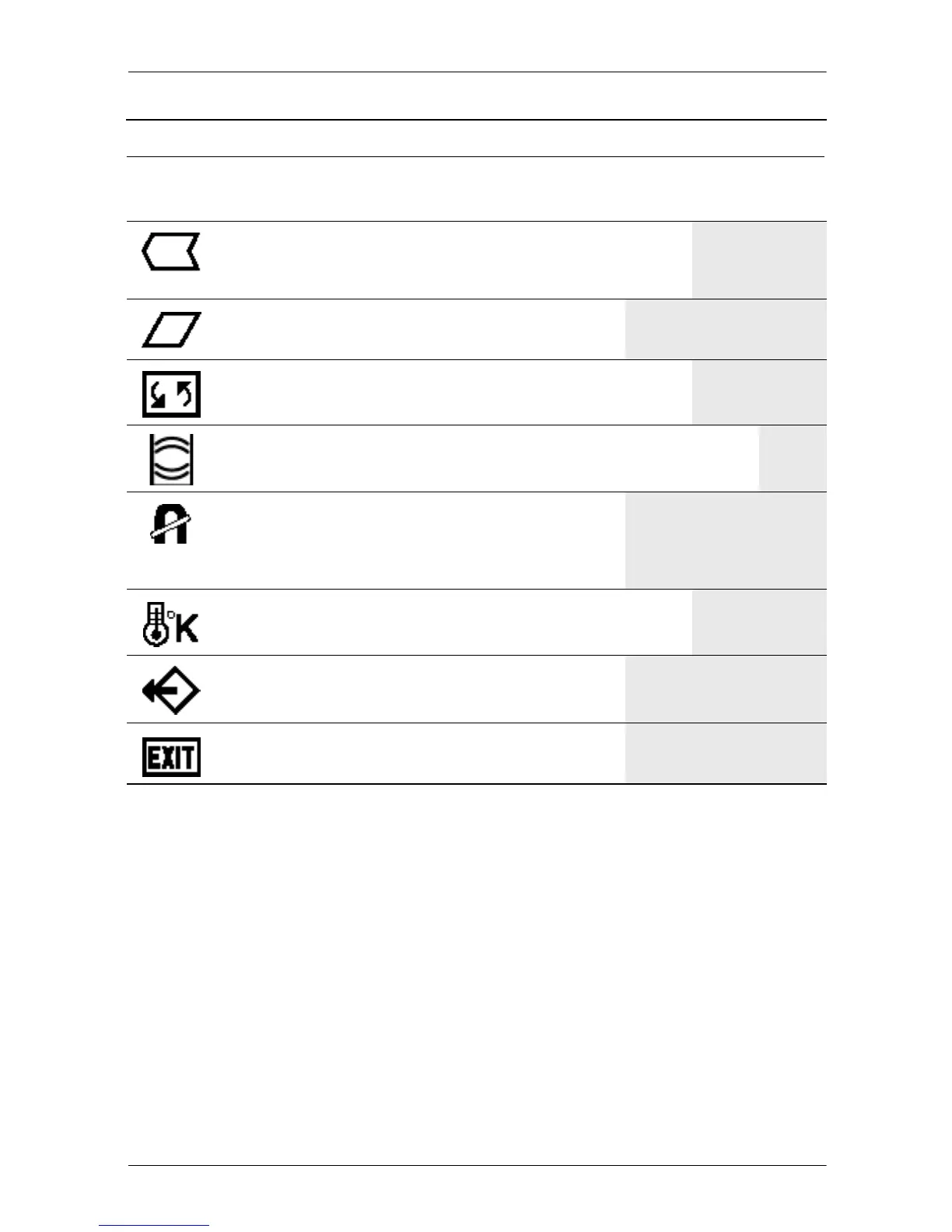

On-Screen Display Icons and Functions (Continued)
Icon Function Description 5500
7500
&
7550 9500
