5–6 Maintenance and Service Guide
Removal and Replacement Procedures
5. Remove the MultiBay device by following these steps:
a. Turn the notebook bottom side up with the right side
facing forward.
b. Slide and hold the MultiBay release latch toward the
front of the notebook
1 (Figure 5-4).
c. Use the notch in the MultiBay device to slide the device
out of the MultiBay
2.
d. Remove the MultiBay device.

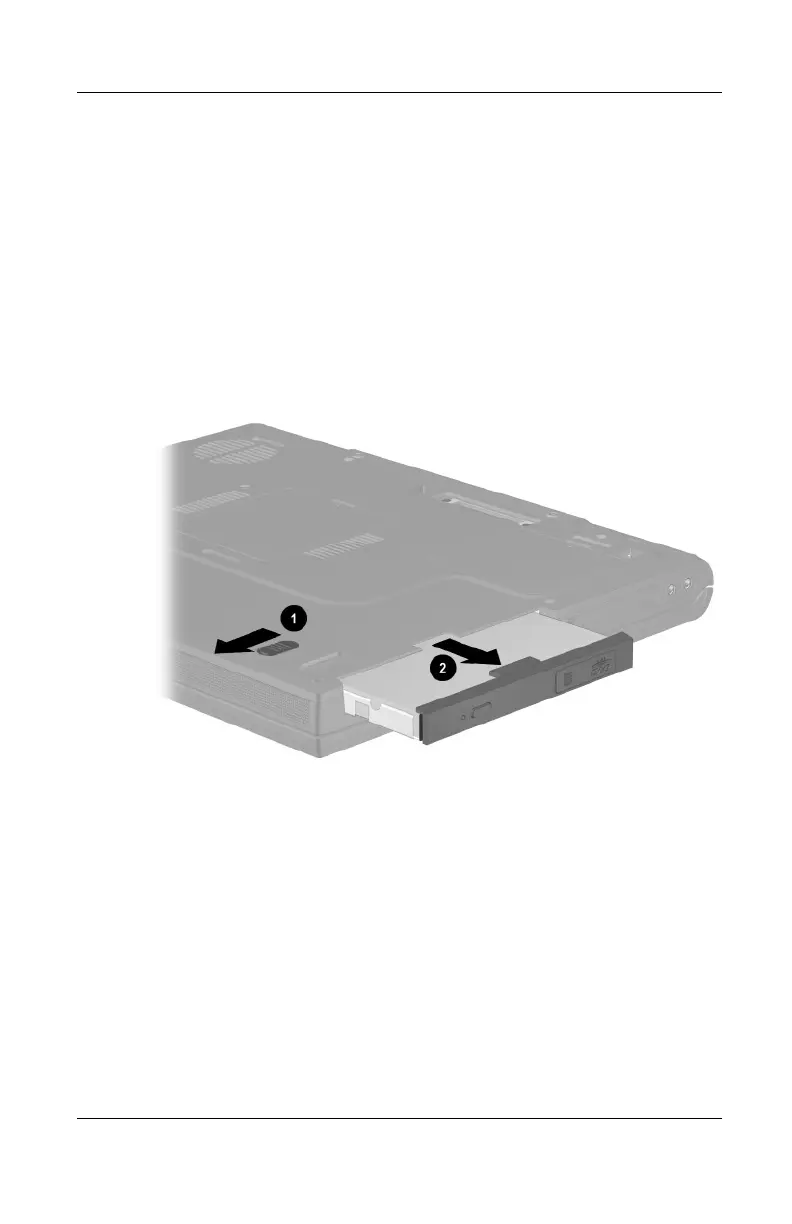

Figure 5-4. Removing a MultiBay Device
Reverse the above procedure to install a MultiBay device.
