Removal and Replacement Procedures
Maintenance and Service Guide 5–27
3. Remove the nine PM2.0 × 8.0 screws 1 securing the top
cover to the base enclosure (Figure 5-21).
4. Remove the PM2.0 × 4.0 screw 2 securing the top cover to
the base enclosure in the hard drive bay.
✎
Do not remove the screw in the middle of the hard drive bay 3.

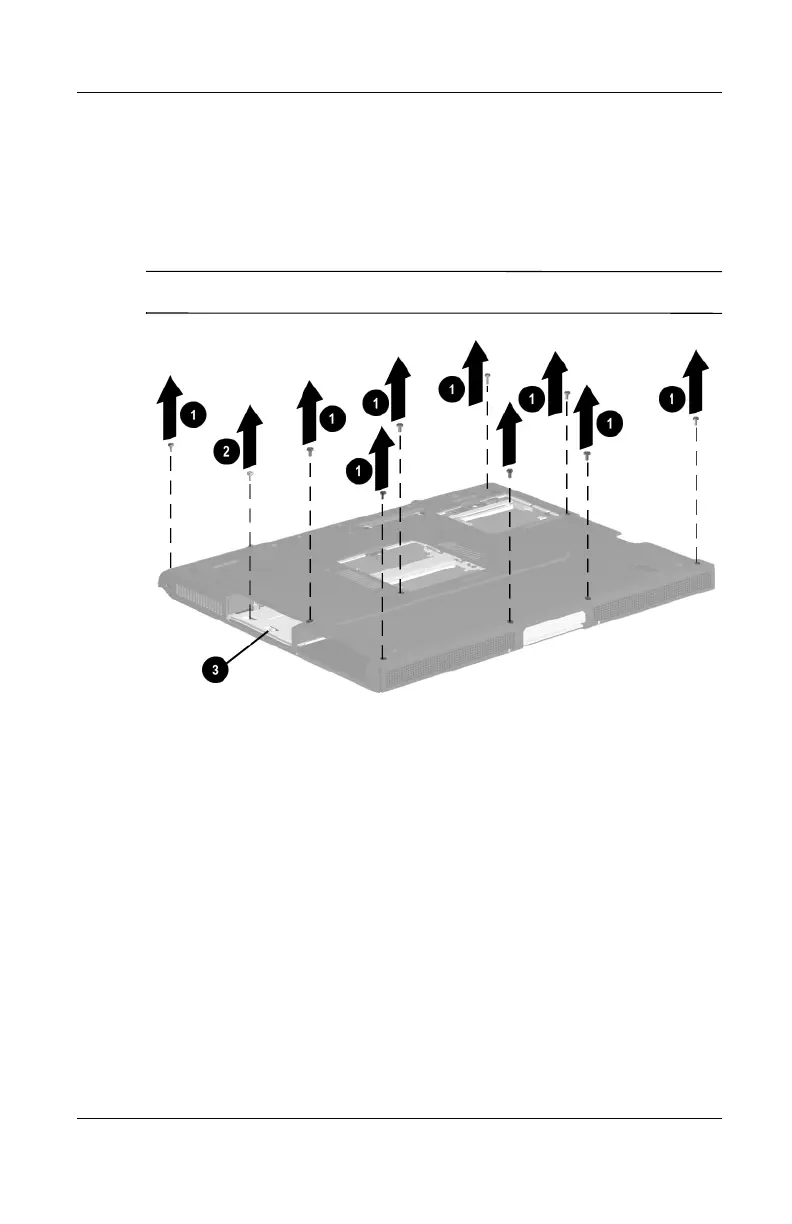

Figure 5-21. Removing the Top Cover Screws
5. Turn the notebook top side up with the rear panel facing
forward.
