5–28 Maintenance and Service Guide
Removal and Replacement Procedures
6. Disconnect the drive activity light and battery power light
cable from the system board 1 (Figure 5-22).
7. Release the ZIF connector 2 to which the TouchPad cable is
connected and disconnect the TouchPad cable 3 from the
system board.
8. Disconnect the speaker cable 4 from the system board.

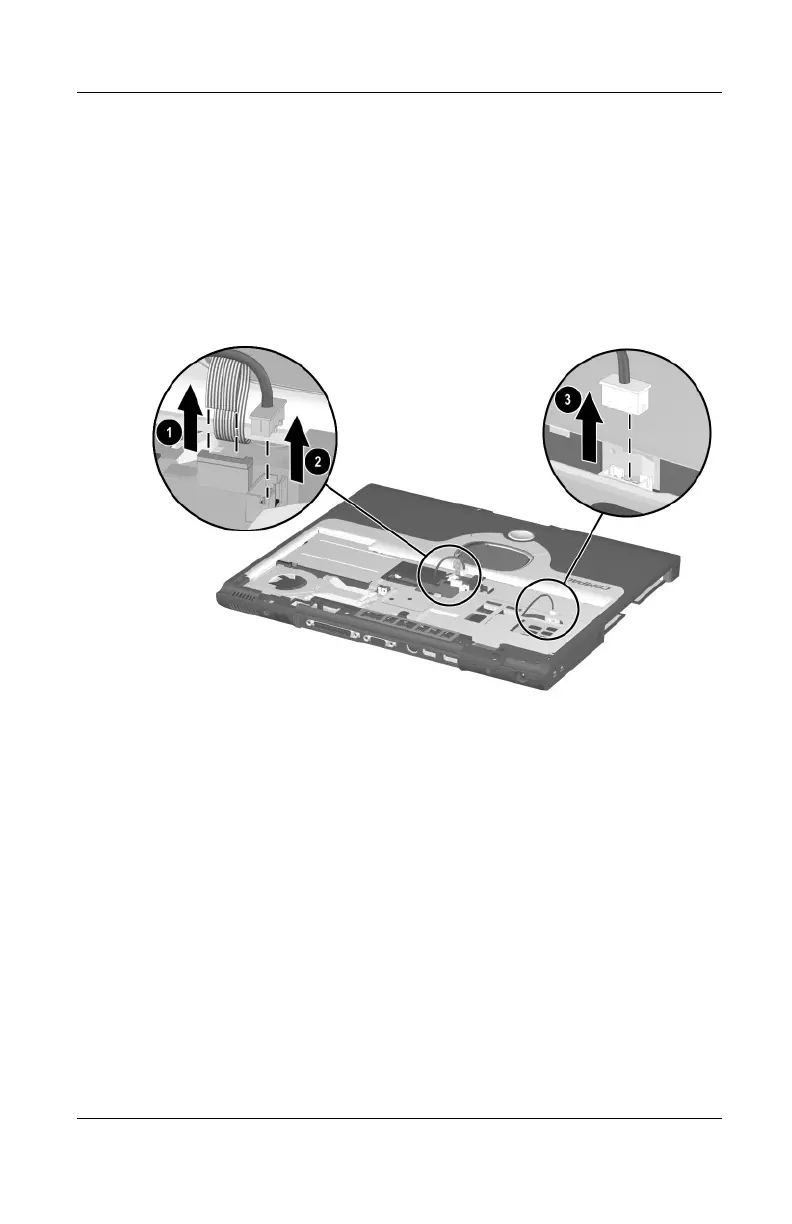

Figure 5-22. Disconnecting the Drive Activity Light/Battery
Power Light, TouchPad, and Speaker Cables
