Removal and Replacement Procedures
Maintenance and Service Guide 5–29
9. Remove the following screws:
a. Two PM2.0 × 5.5 screws 1 that secure the top cover to
the base enclosure on the notebook rear panel
(Figure 5-23)
b. Two PM2.0 × 4.0 screws 2 that secure the top cover to
the base enclosure through the metal tabs on the top
cover shield
c. Two PM2.0 × 8.0 screws 3 that secure the top cover to
the base enclosure through the plastic tabs on the top
cover

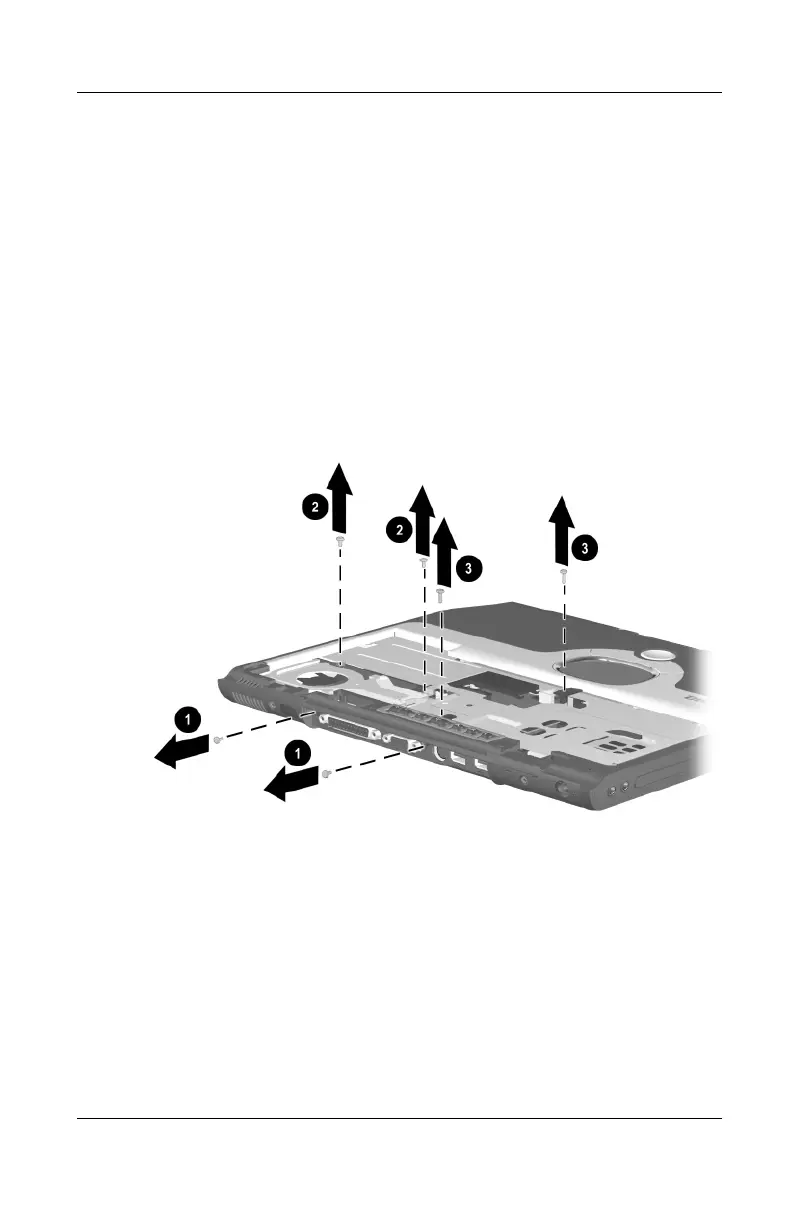

Figure 5-23. Removing the Top Cover Screws
