5–48 Maintenance and Service Guide
Removal and Replacement Procedures
7. Use the MultiBay connector 1 to lift 2 the front of the
system board until the board rests at an angle (Figure 5-35).
8. Slide the system board forward at an angle 3 and remove it
from the base enclosure.
9. Remove the PC Card bezel 4 from the system board.

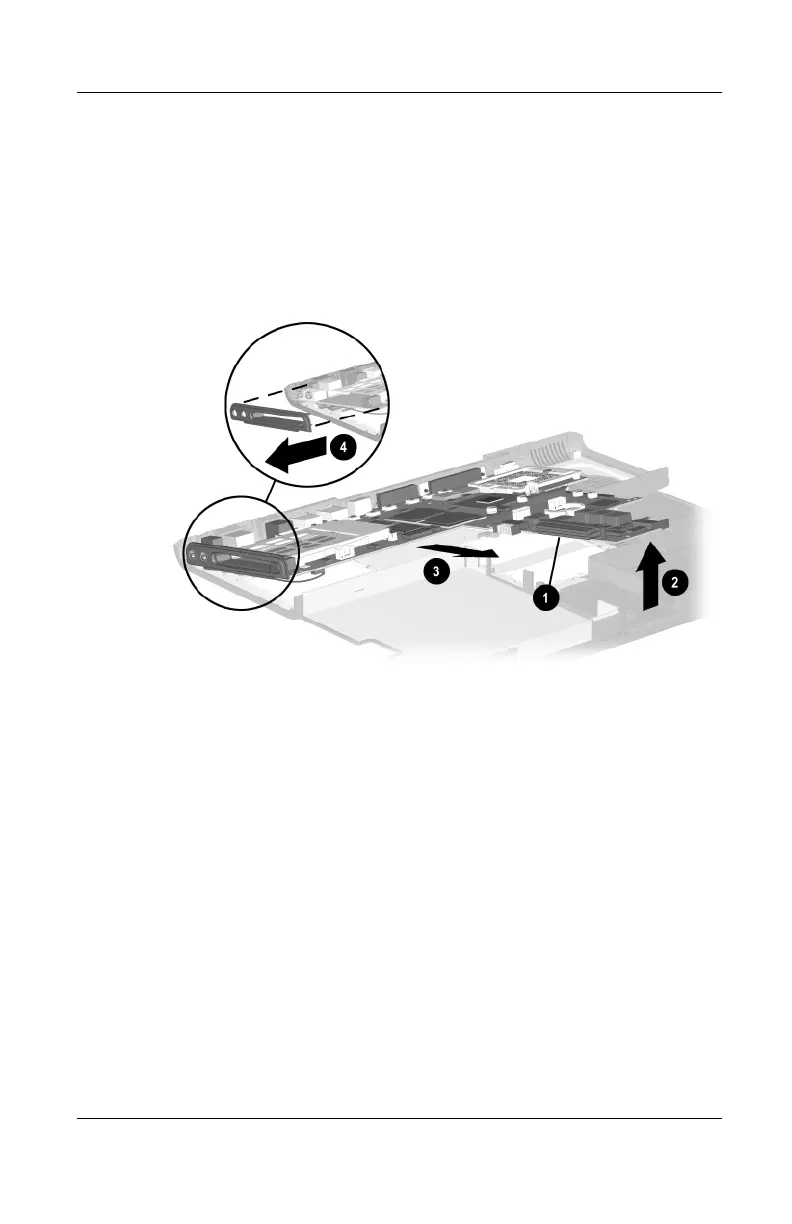

Figure 5-35. Removing the System Board
Reverse the above procedure to install the system board.
