Removal and Replacement Procedures
Maintenance and Service Guide 5–47
5. Remove the two PM2.0 × 5.5 screws 1 that secure the system
board to the base enclosure on either side of the MultiBay
connector (Figure 5-34).
6. Remove the two PM2.0 × 8.0 screws 2 that secure the system
board to the base enclosure through the processor support
bracket.

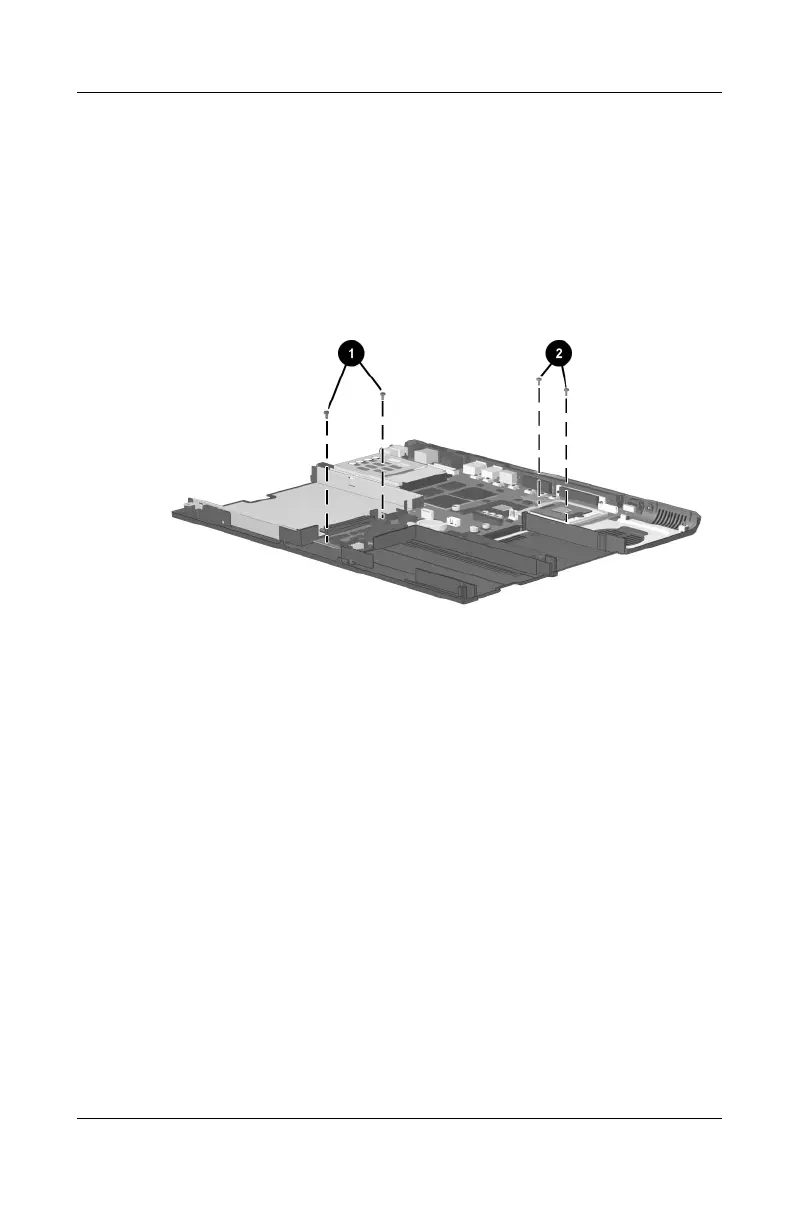

Figure 5-34. Removing the System Board Screws
